This product
Notes
· When a subwoofer (*6) is connected to this
product instead of a rear speaker, change the
rear output setting in the initial setting. (Refer to
Operation Manual.) The subwoofer output of this
product is monaural.
· When using a subwoofer of 70 W (2
Ω), be sure
to connect with violet and violet/black leads of
this product. Do not connect anything with
green and green/black leads.

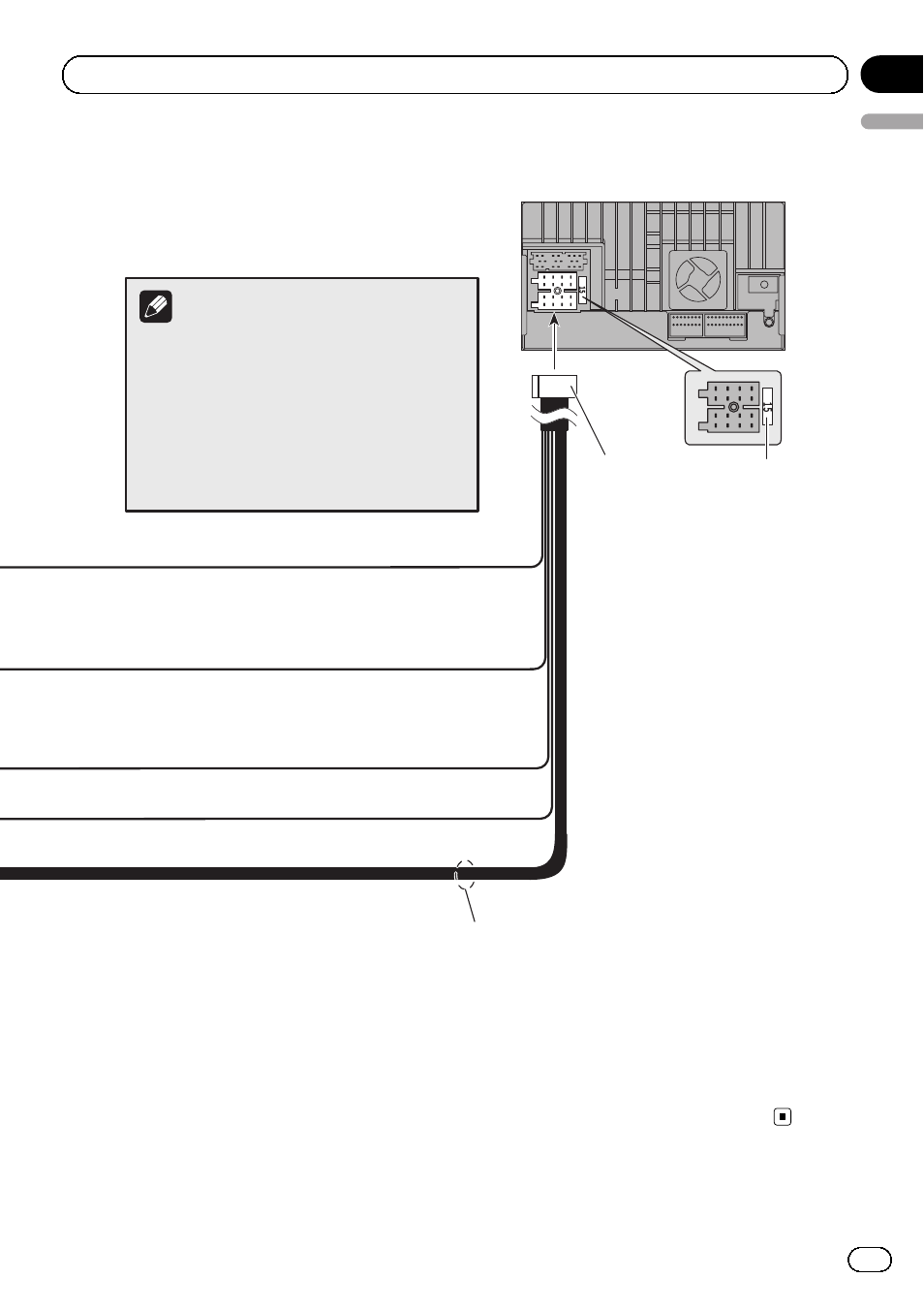

Fuse (15 A)
Speaker leads
White: Front
left

White/black: Front left

Grey: Front right

Grey/black: Front right

Green: Rear left or Subwoofer  (*6)
Green/black: Rear left or Subwoofer  (*6)
Violet: Rear right or Subwoofer  (*6)
Violet/black: Rear right or Subwoofer  (*6)
Power cord
Engb
9
English
Section
02 Connecting the system
