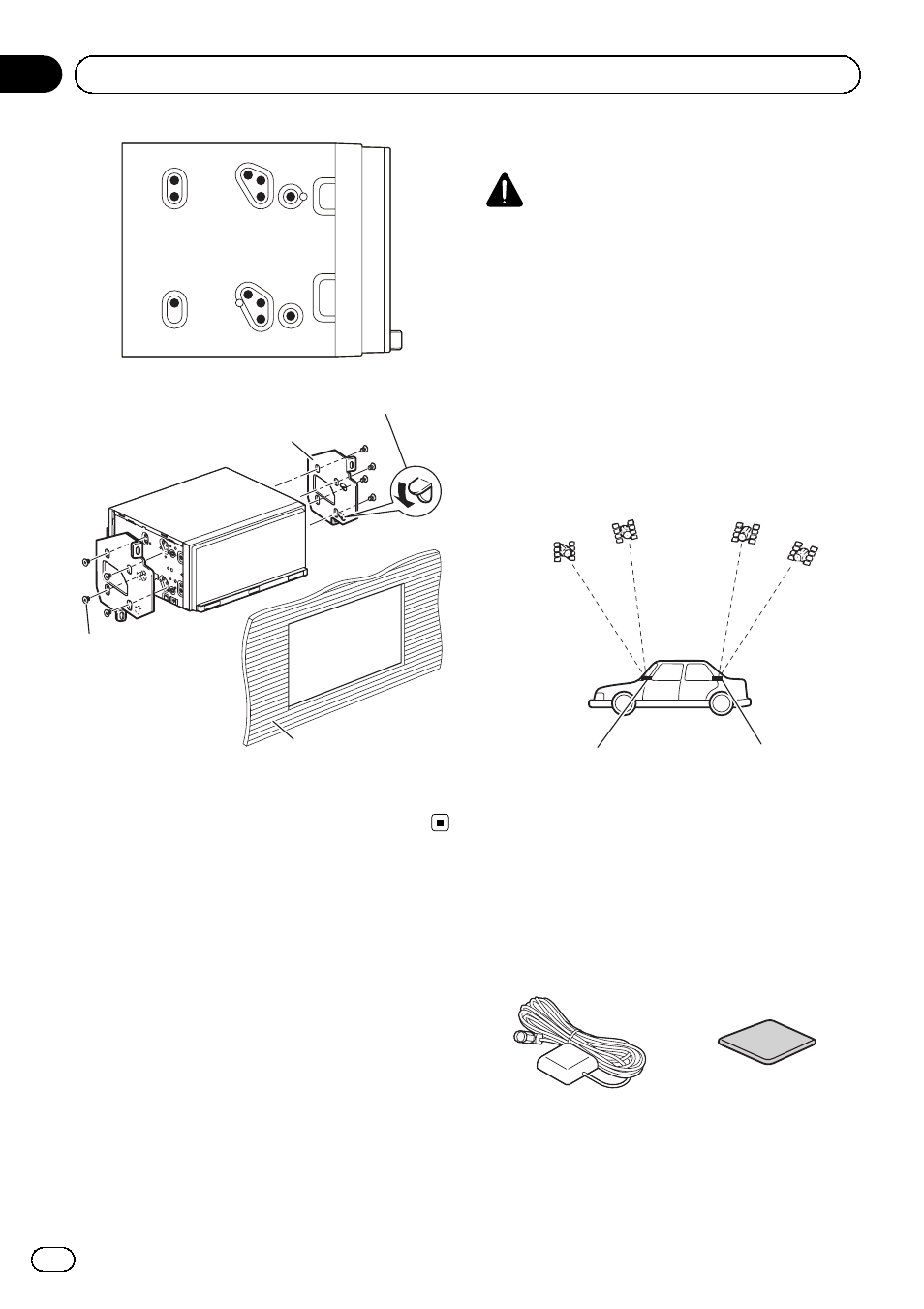

If the tab interferes with installation,
you may bend it down out of the way.
Dashboard or console
Truss head screw
or flush surface
screw
Be sure to use the
screws supplied
with this product.
Factory radio-mounting bracket
Installing the GPS aerial
CAUTION
Do not cut the GPS aerial lead to shorten it
or use an extension to make it longer. Alter-
ing the aerial cable could result in a short cir-
cuit or malfunction and permanent damage
to this product.
Installation notes
! The aerial should be installed on a level sur-
face where radio waves will be blocked as
little as possible. Radio waves cannot be re-
ceived by the aerial if reception from the sa-
tellite is blocked.
Dashboard Rear shelf
! Take care not to pull the aerial lead when
removing the GPS aerial. The magnet at-
tached to the aerial is very powerful, and
the lead may become detached.
! Do not paint the GPS aerial, as this may af-
fect its performance.
Parts supplied
GPS aerial Double-sided tape
Engb
18
Section
03 Installation
