Controls and displays 02
17
En

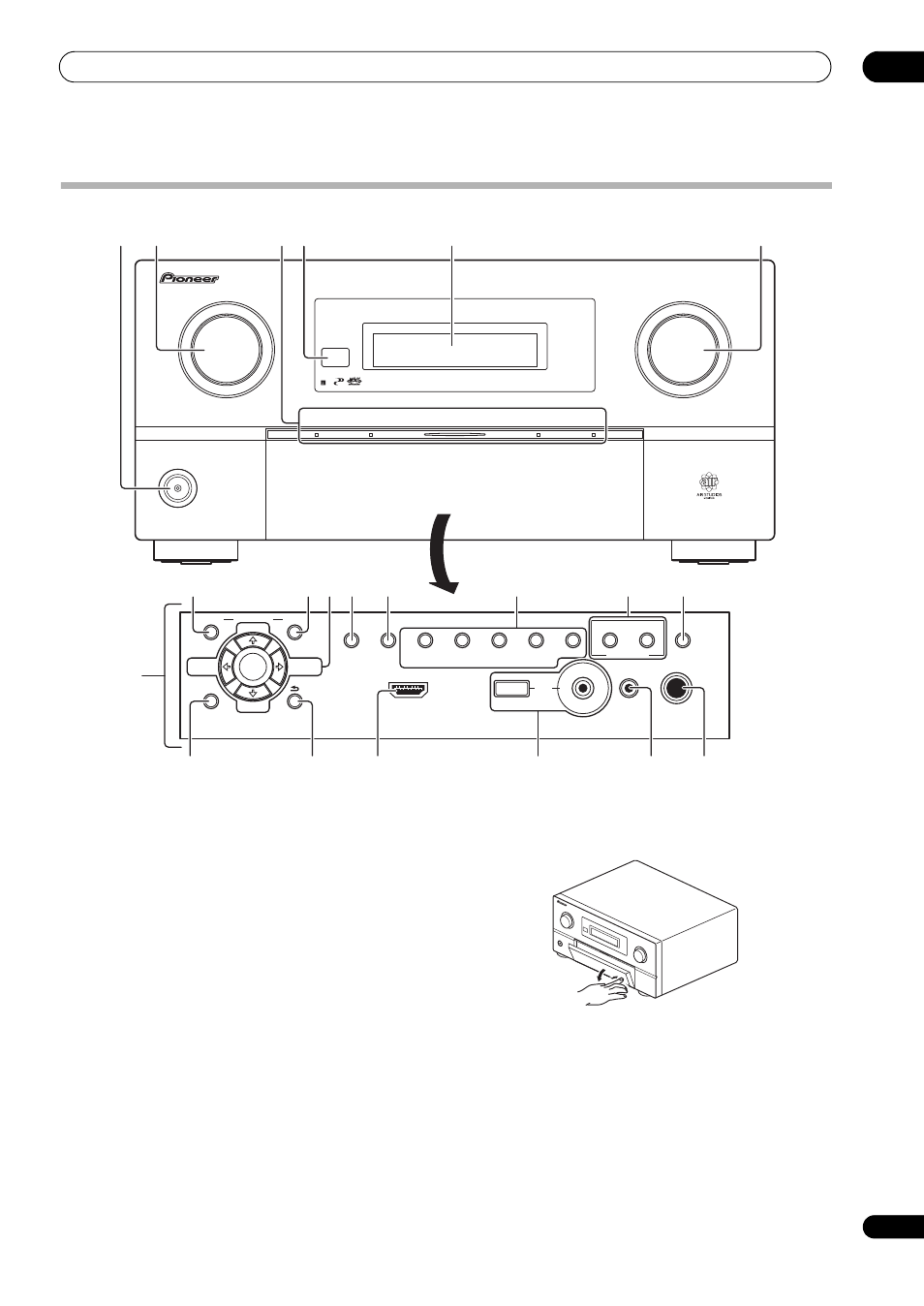

Front panel
1  STANDBY/ON
Switches the receiver between on and standby.
2 INPUT SELECTOR dial
Use to select an input function.
3 Indicators
ADVANCED MCACC – Lights when EQ is set to ON in
the
AUDIO PARAMETER menu (page 72).
PQLS – Lights when the PQLS feature is active
(page 71).
HDMI – Blinks when connecting an HDMI-equipped
component; lights when the component is connected
(page 28).
iPod/iPhone – Lights to indicate iPod/iPhone is
connected (page 38).
4 Remote sensor
Receives the signals from the remote control (see
Operating range of remote control unit on page 10).
5 Character display
See Display on page 15.
6 MASTER VOLUME dial
7 Front panel controls
To access the front panel controls, push gently on the
lower third portion of the panel with your finger.
8 AUDIO PARAMETER
Use to access the Audio options (page 72).
9 VIDEO PARAMETER
Use to access the Video options (page 74).
10
/// (TUNE/PRESET) /ENTER
Use the arrow buttons when setting up your Home
Menu. Use TUNE
/ to find radio frequencies and use
PRESET / to find preset stations (page 51).
 STANDBY/ON
INPUT
SELECTOR
ADVANCED
MCACC
iPod
iPhone PQLS HDMI
MASTER
VOLUME
PHONES
SPEAKERS
CONTROL
MULTI-ZONE
ON/OFF
MCACC
SETUP MIC
PARAMETER
ENTER
(TUNE)
(TUNE)
(PRESET) (PRESET)
AUDIO VIDEO
TUNER EDIT
USB HDMI 5
VIDEO CAMERA
iPod
iPhone
AUTO SURR/ALC/
STREAM DIRECT
HOME
THX
STANDARD
SURROUND
ADVANCED
SURROUND STEREO BAND
HOME MENU RETURN
1
7
2 3
8
16 17
9 11 12 15 14 10
4 5 6
13
20 21 18 19
