Controls and displays
1
1
8
14
iPod iPhone iPad/USB terminal
Use to connect your Apple iPod or USB mass storage device
as an audio source (
page 22
).
15
SOUND RETRIEVER AIR
When the button is pressed, the input switches to ADAPTER
and the listening mode is automatically set to S.R AIR
(
page 31
).
16
iPod iPhone iPad DIRECT CONTROL
Change the receiver’s input to the iPod and enable iPod
operations on the iPod (
page 28
).
Display
17
PHASE
Lights when the Phase Control is switched on (
page 36
).
18
AUTO
Lights when the Auto Surround feature is switched on
(
page 34
).
19
Tuner indicators
RDS
– Lights when an RDS broadcast is received
(
page 33
).
ST
– Lights when a stereo FM broadcast is being received
in auto stereo mode (
page 32
).
TUNE
– Lights when a normal broadcast channel.
PRESET
– Shows when a preset radio station is registered
or called.
MEM
– Blinks when a radio station is registered.
kHz/MHz
– Lights when the character display is showing
the currently received AM/FM broadcast frequency.
20
Speaker indicators
Shows if the speaker system is on or not (
page 14
).
21
Sleep timer indicator
Lights when the receiver is in sleep mode (
page 9
).
22
PRESET information or input signal indicator
Shows the preset number of the tuner or the input signal type,
etc.
23
Character display
Displays various system information.
24
DTS indicators
DTS
– Lights when a source with DTS encoded audio
signals is detected.
HD
– Lights when a source with DTS-EXPRESS or DTS-HD
encoded audio signals is detected.
ES
– Lights to indicate DTS-ES decoding.
96/24
– Lights when a source with DTS 96/24 encoded
audio signals is detected.
NEO:6
– When one of the NEO:6 modes of the receiver is
on, this lights to indicate NEO:6 processing (
page 34
).
25
Dolby Digital indicators
2 D
– Lights when a Dolby Digital encoded signal is
detected.
2 D+
– Lights when a source with Dolby Digital Plus
encoded audio signals is detected.
2HD
– Lights when a source with Dolby TrueHD encoded
audio signals is detected.
EX
– Lights to indicate Dolby Digital EX decoding.
2PLII(x)
– Lights to indicate 2 Pro Logic II/2 Pro Logic
IIx decoding. Light will go off during 2 Pro Logic IIz
decoding (see
Listening in surround sound on page 34
for
26
ADV.S.
Lights when one of the Advanced Surround modes has been
selected (see
Using the Advanced surround on page 35
for
27
SIGNAL SELECT indicators
DIGITAL
– Lights when a digital audio signal is selected.
Blinks when a digital audio signal is selected and selected
audio input is not provided.
HDMI
– Lights when an HDMI signal is selected. Blinks
when an HDMI signal is selected and selected HDMI input
is not provided.
28
Up Mix/DIMMER indicator
Lights when the Up Mix function is set to ON (
page 36
). Also,
lights when DIMMER is set to off.
29
DIR.
Lights when the DIRECT or PURE DIRECT mode is switched
on (
page 35
).

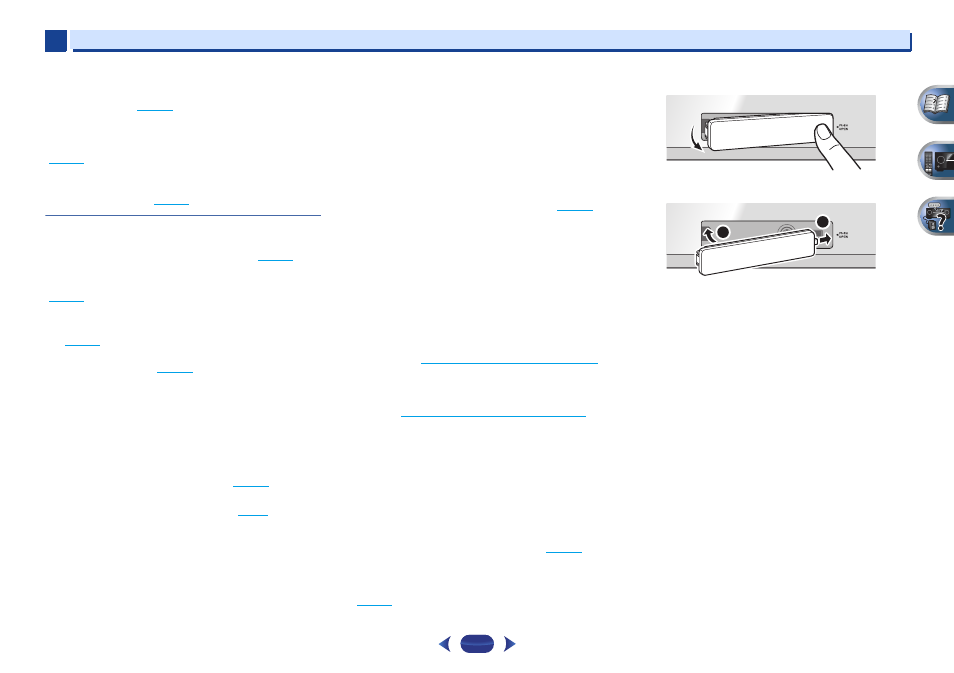

Removing the front cover
Attaching the front cover
MCACC
SETUP MIC
VIDEO
iPod
iPhone
iPad
USB
5 V 2.1 A
MCACC
SETUP MIC
VIDEO
iPod
iPhone
iPad
USB
1
2
