Page 7
1
1
Chapter
7
Controls and displays

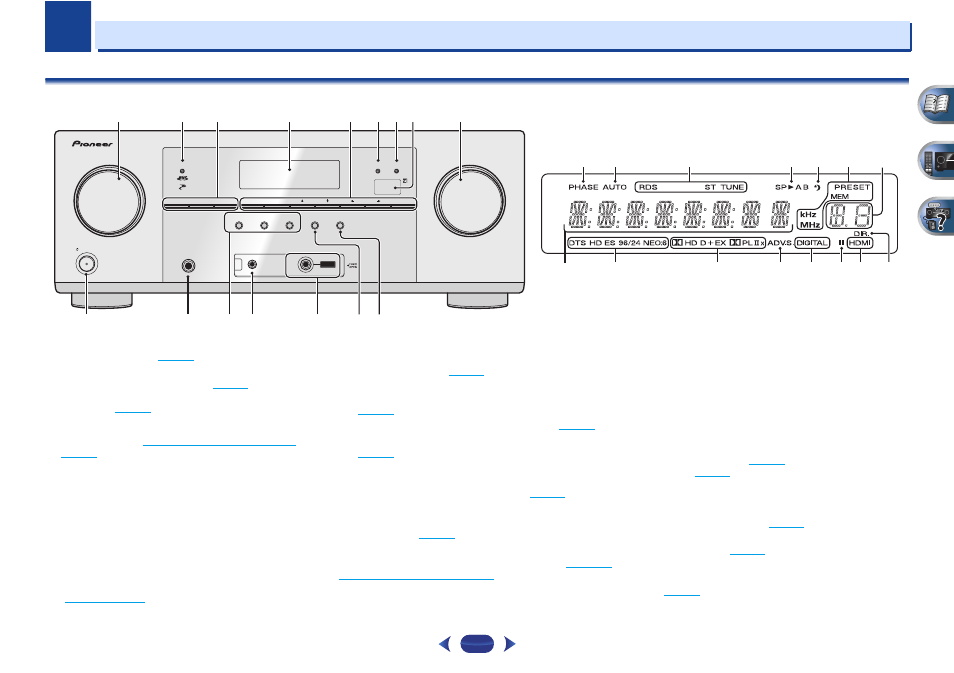

Front panel
1
INPUT SELECTOR
dial
Selects an input source (
page 25
).
2
MCACC indicator
Lights when Acoustic Calibration EQ (
page 35
) is on (Acoustic
Calibration EQ is automatically set to on after the Auto
MCACC setup (
page 23
)).
3
Receiver control buttons
SPEAKERS
– See
Switching the speaker terminal on
page 14
.
DIMMER
– Dims or brightens the display. The brightness
can be controlled in four steps.
DISPLAY
– Switches the display of this unit. The listening
mode, sound volume, Speaker System (VSX-827)/Pre Out
(VSX-527) setting or input name can be checked by
selecting an input source.
• The Speaker System/Pre Out setting may or may not be
displayed, depending on the input source you have
selected.
4
Character display
See
Display on page 8
.
5
Tuner control buttons
BAND
– Switches between AM, FM ST (stereo) and FM
MONO radio bands (
page 32
).
TUNER EDIT
– Use with
TUNE
/
,
PRESET
/
and
ENTER
to memorize and name stations for recall
(
page 32
).
TUNE
/
– Used to find radio frequencies (
page 32
).
PRESET
/
– Use to select preset radio stations
(
page 32
).
6
HDMI indicator
Blinks when connecting an HDMI-equipped component;
lights when the component is connected (
page 17
).
7
iPod iPhone iPad indicator
Lights when an iPod/iPhone/iPad is connected and
iPod/USB
input is selected (
page 27
).
8
Remote sensor
Receives the signals from the remote control (see
Operating
range of remote control on page 10
).
9
MASTER VOLUME
dial
10
STANDBY/ON
11
PHONES jack
Use to connect headphones. When the headphones are
connected, there is no sound output from the speakers. The
listening mode when the sound is heard from the headphone
can be selected only from PHONES SURR, STEREO or
STEREO ALC
mode (S.R AIR mode can be also selected with
ADAPTER
input).
12
Listening mode buttons
AUTO SURROUND/STREAM DIRECT
– Switches between
Auto surround mode (
page 34
) and Stream Direct
playback (
page 35
).
ALC/STANDARD SURR
– Press for standard decoding
and to switch between the modes of 2 Pro Logic II, 2
Pro Logic IIx, 2 Pro Logic IIz and NEO:6, and the Auto
level control stereo mode (
page 34
).
ADVANCED SURROUND
– Switches between the various
surround modes (
page 35
).
13
MCACC SETUP MIC jack
Use to connect a microphone when performing Auto MCACC
setup (
page 23
).
MASTER
VOLUME
STANDBY / ON
INPUT
SELECTOR
iPod iPhone iPad
DIRECT CONTROL
SOUND
RETRIEVER AIR
ADVANCED
SURROUND
PHONES
SPEAKERS
DIMMER
DISPLAY
BAND
TUNER EDIT
TUNE
PRESET
ENTER
HDMI
MCACC
iPod iPhone iPad
ALC/
STANDARD SURR
AUTO SURROUND/
STREAM DIRECT
4
5
6
10
11
12
2
1
7
9
3
8
MCACC
SETUP MIC
VIDEO
iPod
iPhone
iPad
USB
15
13
14
16
17
18
19
20
21
19
24
25
26
27
27
29
28
22
23
