Connecting your equipment
2
2
18
Connecting your TV with no HDMI input

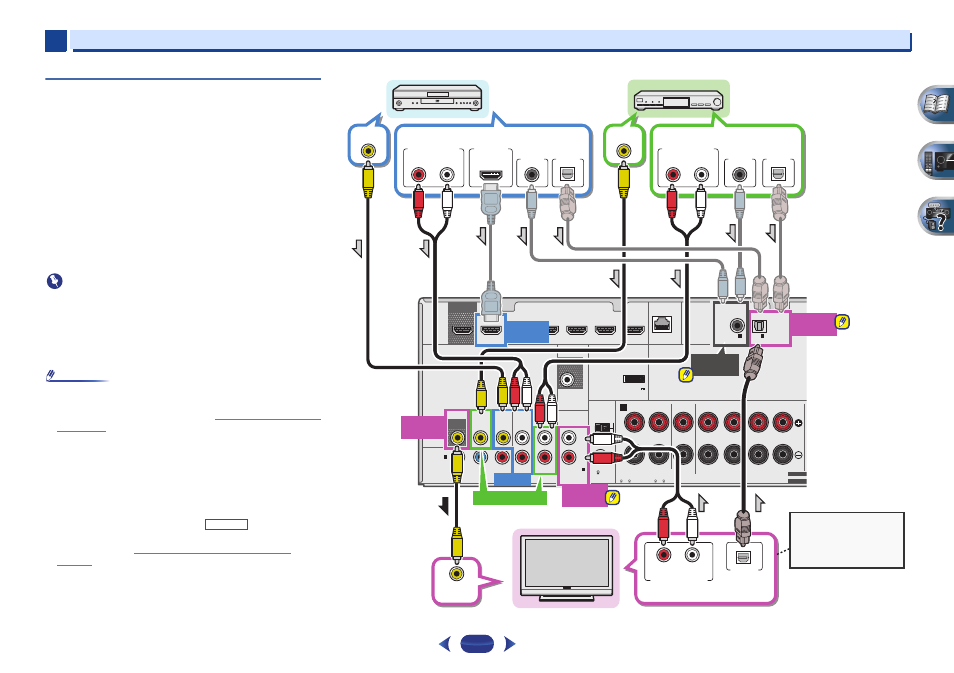

This diagram shows connections of a TV (with no HDMI input)
and DVD player (or other playback component) to the receiver.
•
With these connections, the picture is not output to the TV
even if the DVD player is connected with an HDMI cable.
Connect the DVD player’s video signals using a composite
cable.
•
In order to listening to HD audio with this receiver, connect
an HDMI cable, and use analog video cable for video signal
input.
Depending on the player, it may not be possible to output
video signals to both HDMI and other video output
(composite, etc.) simultaneously, and it may be necessary
to make video output settings. Please refer to the operating
instructions supplied with your player for more information.
Important
•
When the receiver and TV are connected by composite
cable, the OSD function allowing display of the receiver’s
settings, operations, etc., on the TV’s screen cannot be
used. In this case, watch the receiver’s front panel display
while performing the various operations and making
settings.
Note
•
In order to listen to the audio from the TV that is connected
to this receiver using a analog audio cables, set-up for
analog audio input is required (see
The Input Assign menu
on page 50
).
•
Only one component can be connected to both the optical
input terminal and coaxial input terminal. If connecting
other devices, please use a different method to connect the
audio.
In order to listen to the audio from the source component
that is connected to this receiver using an optical cable or
a coaxial cable, first, switch to the DVD (DVD player) or
SAT/CBL
(set-top box), then use
and
SIGNAL
SEL
to choose the audio signal O1 (OPTICAL1) or C1
(COAXIAL1) (see
Selecting the audio input signal on
page 25
).
RECEIVER
HDMI
VIDEO
R
L
AUDIO
COMPONENT VIDEO
PRE OUT
SPEAKERS
ANTENNA
OPTICAL
COAXIAL
LAN
(10/100)
DVD
IN
SAT/CBL
IN
MONITOR
OUT
DVD
Y
P
B
P
R
SAT/CBL
ANALOG IN
IN
IN
DVD
GAME
VIDEO
BD
SAT/CBL
DVR/BDR
(CD)
(TV)
IN
1
IN
1
(CD)
OUT
ASSIGNABLE
ASSIGNABLE
ASSIGNABLE
ASSIGNABLE
1
FM UNBAL
75
CAUTION:
ATTENTION:
SPEAKER IMPEDANCE
ENCEINTE D’IMPEDANCE DE
6 -16 .
6 -16 .
AM LOOP
SURROUND
SURROUND BACK
CENTER
FRONT
R
L
R
L
(Single)
R
L
A
SUB WOOFER
1
IN
(DVD)
1
1
(
OUTPUT 5 V
0.1 A MAX
)
ADAPTER PORT
SELECTABLE
SELECTABLE
ANALOG
IN1 (CD)
VIDEO IN
DIGITAL AUDIO OUT
OPTICAL
R
L
ANALOG AUDIO OUT
OPTICAL
IN1 (TV)
DVD IN
SAT/CBL IN
VIDEO OUT
DIGITAL AUDIO OUT
OPTICAL
COAXIAL
R
L
ANALOG AUDIO OUT
R
L
ANALOG AUDIO OUT
VIDEO OUT
COAXIAL
IN1 (CD)
MONITOR
OUT
HDMI
DVD IN
DIGITAL AUDIO OUT
OPTICAL
COAXIAL
HDMI OUT
Select one
Select one
Select one
TV
DVD player
Set-top box
This connection is
required in order to listen
to the sound of the TV
over the receiver.
VSX-827
