2. Fastening the unit to the factory radio mounting bracket.

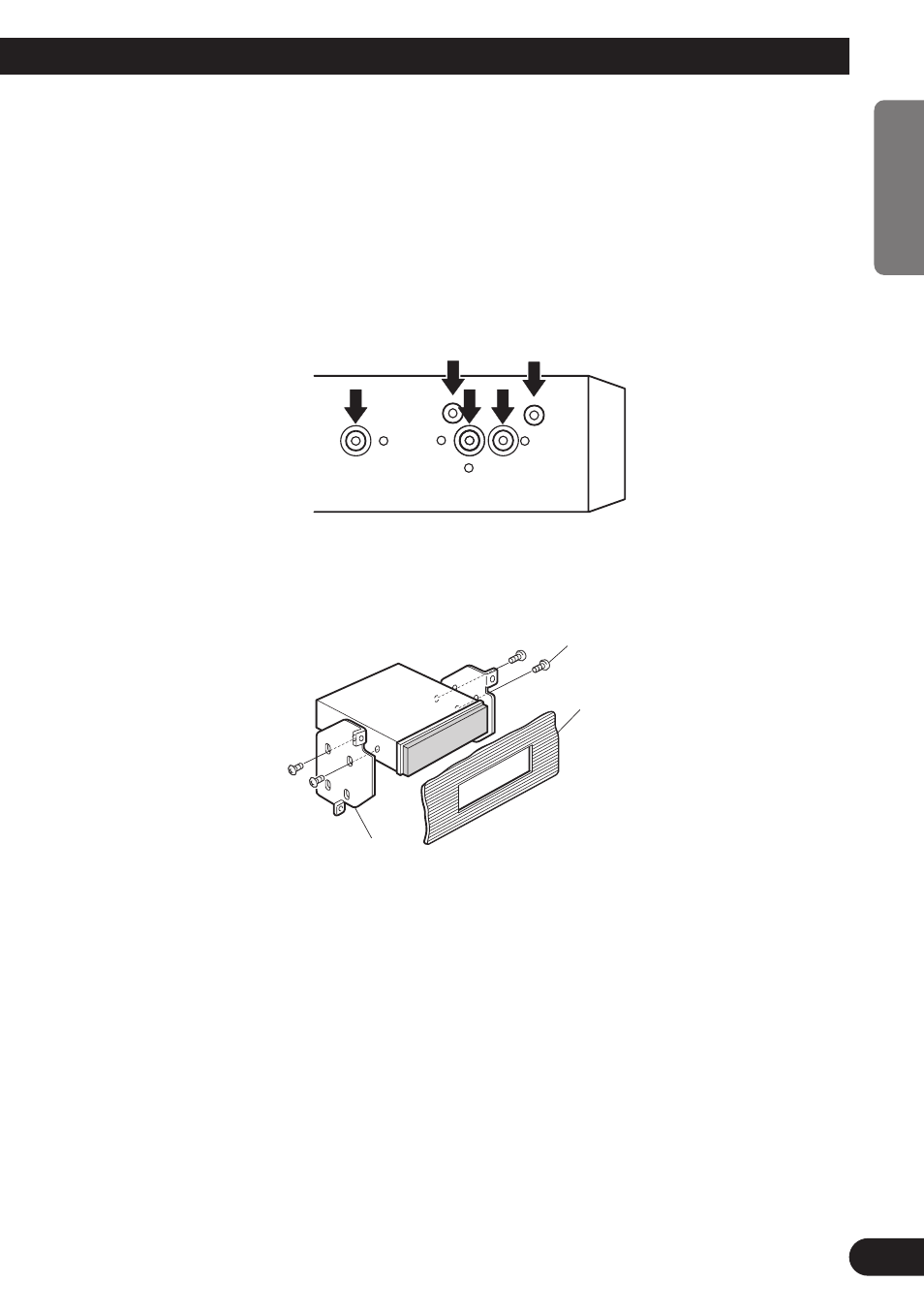

(Fig. 14) (Fig. 15)
Select a position where the screw holes of the bracket and the screw holes of this product
become aligned (are fitted), and tighten the screws at 2 places on each side. Use any of
binding screws (4
× 3 mm), binding screws (5 × 6 mm) or flush surface screws (5 × 6
mm), depending on the shape of the screw holes in the bracket.
*1 Use binding screws (4
× 3 mm) only.
Fig. 14
Fig. 15
11
13
12
*1 *1
Screw
Dashboard or Console
Factory radio mounting bracket
