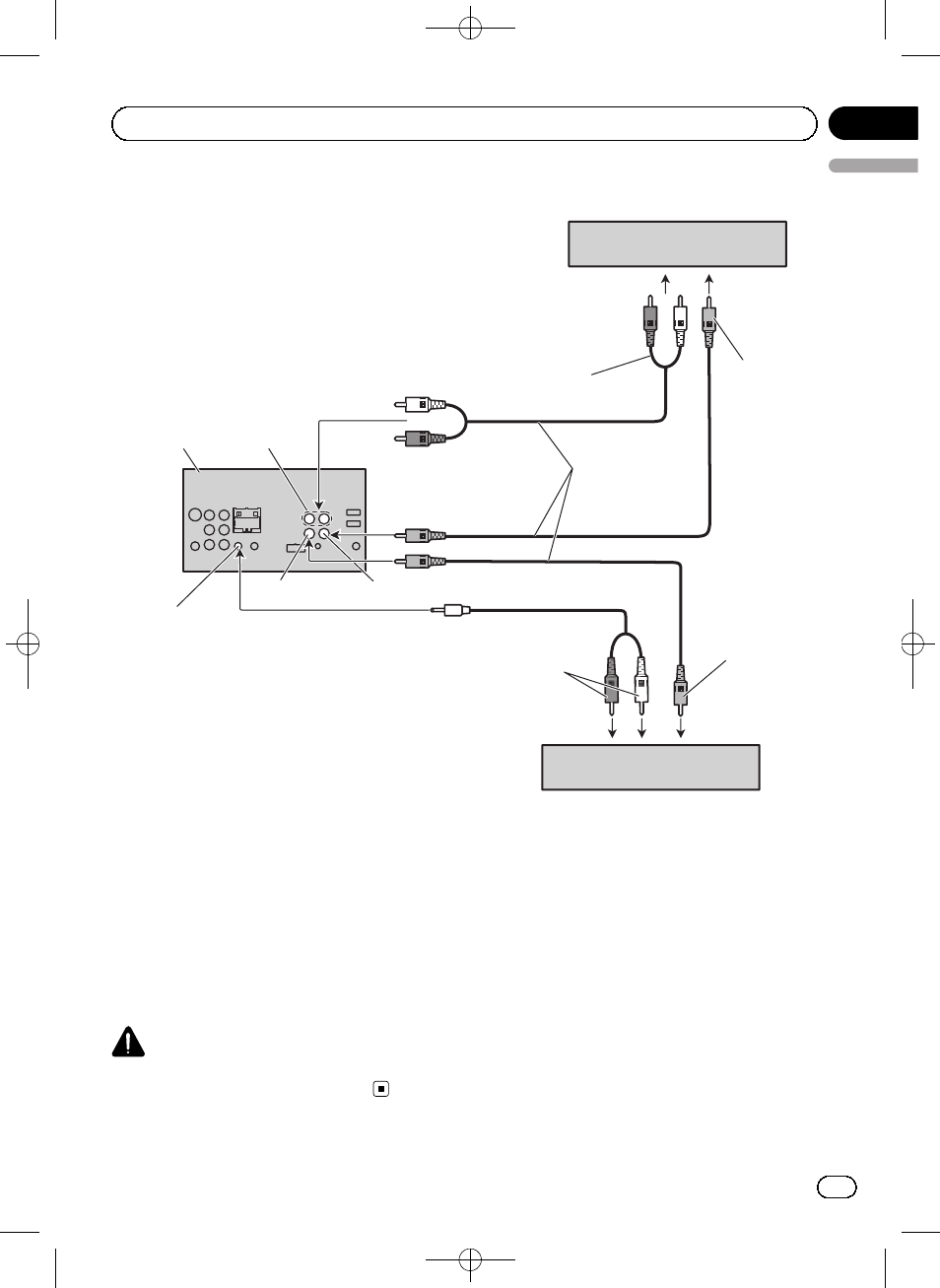

When connecting the external video component and the display
External video component
(sold separately)
Audio inputs
(R IN, L IN)
Display with RCA input jacks
(sold separately)
To video
input
To video
output
To audio outputs
To audio inputs
This product
Mini pin plug cable
(sold separately)
RCA cables
(sold separately)
Rear audio output
(REAR AUDIO OUT)
Rear monitor output
(V OUT) Video input (V IN)
! It is necessary to change AV Input in
System Menu when connecting the exter-
nal video component.
When using a display connected to rear video output
This product
’s rear video output and rear
audio output are for connection of a display to
enable passengers in the rear seats to watch
the DVD, etc.
WARNING
! Never install the display in a location where it
is visible to the driver while driving.
9
En
9
English
Section
01 Connecting the units
