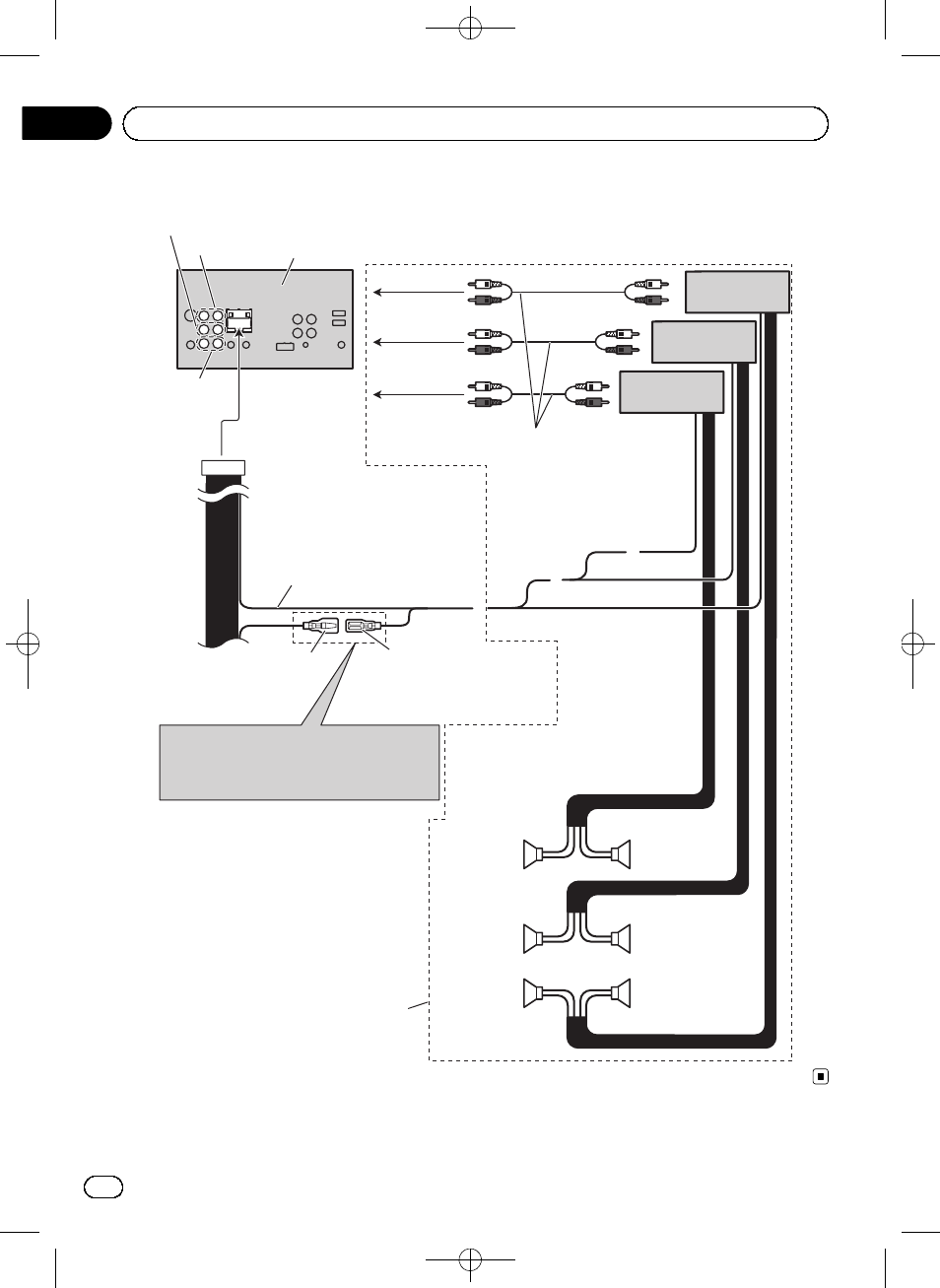

When connecting to separately sold power amp












Blue/white
Connect to system control
terminal of the power amp
(max. 300 mA 12 V DC).
Blue/white (6*)
Connect to auto-antenna
relay control terminal
(max. 300 mA 12 V DC).
The pin position of the ISO connector will differ
depending on the type of vehicle. Connect 5*
and 6* when Pin 5 is an antenna control type. In
another type of vehicle, never connect 5* and 6*.
Blue/white (5*)
Connect with RCA cables
(sold separately)
Rear speaker
Perform these connections when
using the optional amplifier.
System remote control
Front speaker Front speaker
Left Right
Rear speaker
Power amp
(sold separately)
Power amp
(sold separately)
Power amp
(sold separately)
Subwoofer
Subwoofer
To front output
To rear output
To subwoofer
output
This product
Rear output
Front output
Subwoofer
output
6
En
6
Section
01 Connecting the units
