2 Install this unit.
1

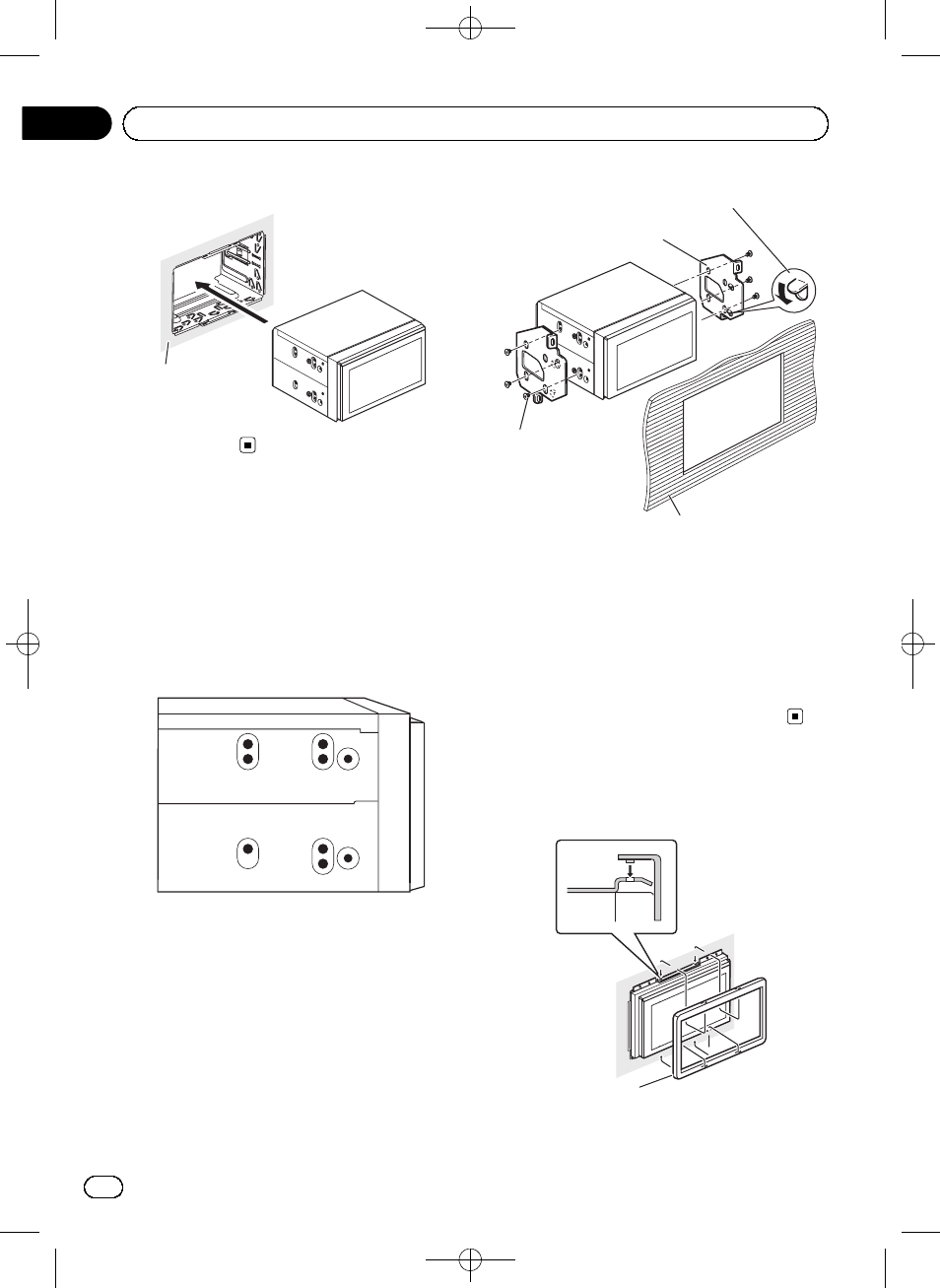

1 Dashboard
Installation using the screw
holes on the side of the unit
% Fastening the unit to the factory radio-
mounting bracket.
Position the unit so that its screw holes are
aligned with the screw holes of the bracket,
and tighten the screws at 3 locations on each
side.
1
2
4
3
1 If the pawl gets in the way, bend it down.
2 Factory radio mounting bracket
3 Tapping screw (5 mm × 8 mm)
4 Dashboard or console
Note
In some types of vehicles, discrepancy may occur
between the unit and the dashboard. If this hap-
pens, use the supplied frame to fill the gap.
Removing the unit
1 Remove the trim ring.
1
1 Trim ring
