Using external equipment
POWER
STANDBY/ON
MEDIA RECEIVER PDP-R03E
RGB cable
(commercially available)
Media Receiver (front view)
ø 3.5 mm stereo minijack cable
(commercially available) Computer
15 14 13 12
9
11
10 8 7 6
5 4 3 2 1
INPUT SOURCE
TV
INPUT1
INPUT2
INPUT3
INPUT4
PC
Pin No. Signal name Pin No. Signal name Pin No. Signal name
1 R 6 GND (Ground) q Not connected
2 G 7 GND (Ground) w SDA
3 B 8 GND (Ground) e HD
4 Not connected 9 ם5V r VD
5 CSYNC 0 GND (Ground) t SCL

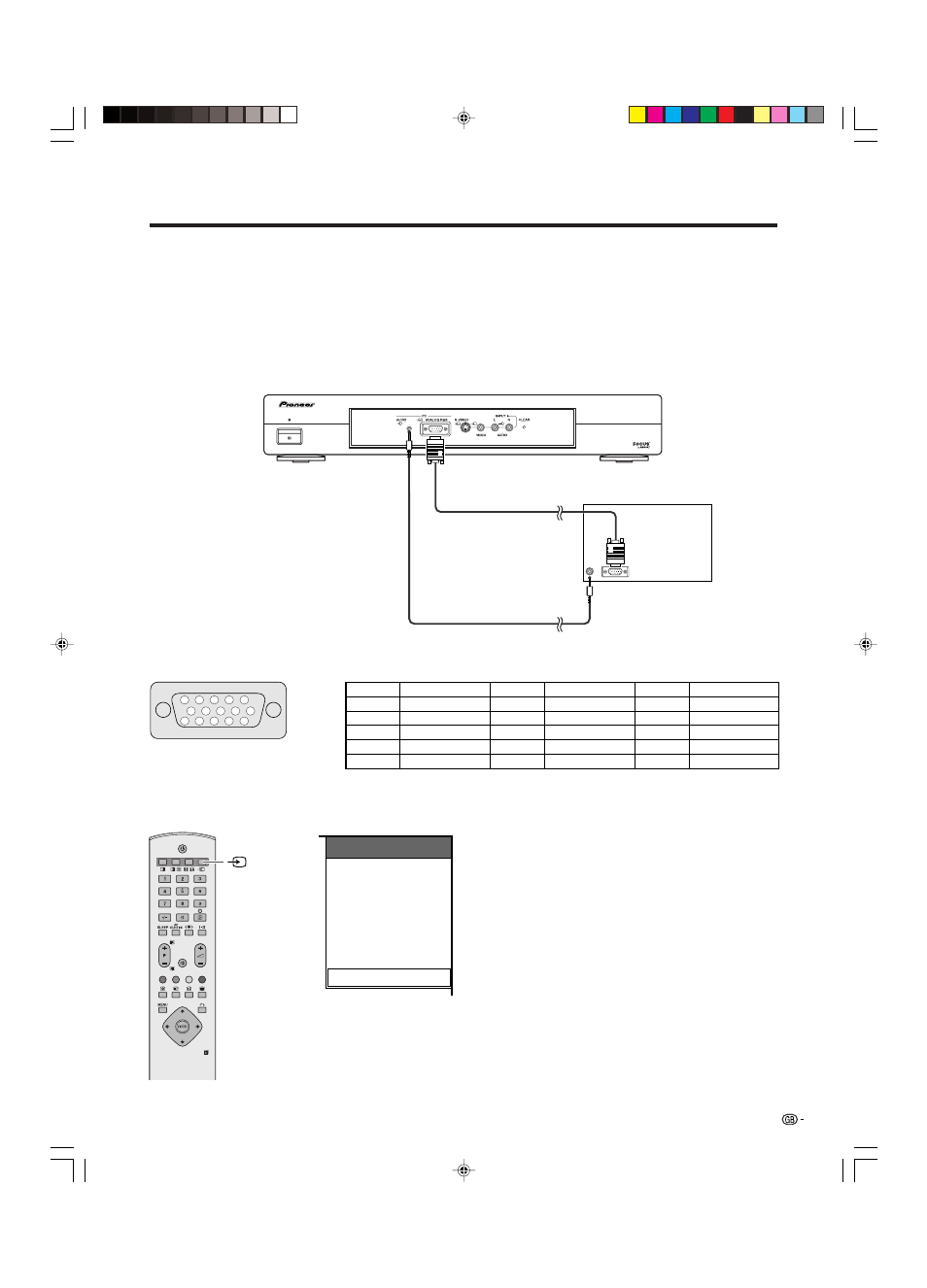

Viewing an image from a computer
Connecting a computer
Use the PC terminals to connect a computer.
A
• The PC input terminals are DDC1/2B-compatible.
• Refer to page 60 for a list of computer signals compatible with the Plasma Display System.
Signal names for 15-pin mini D-sub connecter
A
• Macintosh adaptor may be required for use for some Macintosh computers.
Displaying an image from a computer
When connecting to a computer, the correct input
signal type is automatically detected. (See page 49.)
If the computer image does not come in clearly, you
may need to set the Auto Sync. adjustment on the “Auto
Sync.” in the menu. (See page 48.)
You only need to select the input source on the “INPUT
SOURCE” menu.
To view an image from a computer, select “PC” from
the “INPUT SOURCE” menu using b on the remote
control unit or INPUT on the Plasma Display. (See page
49.)
A
• Each time b is pressed, the input source toggles.
