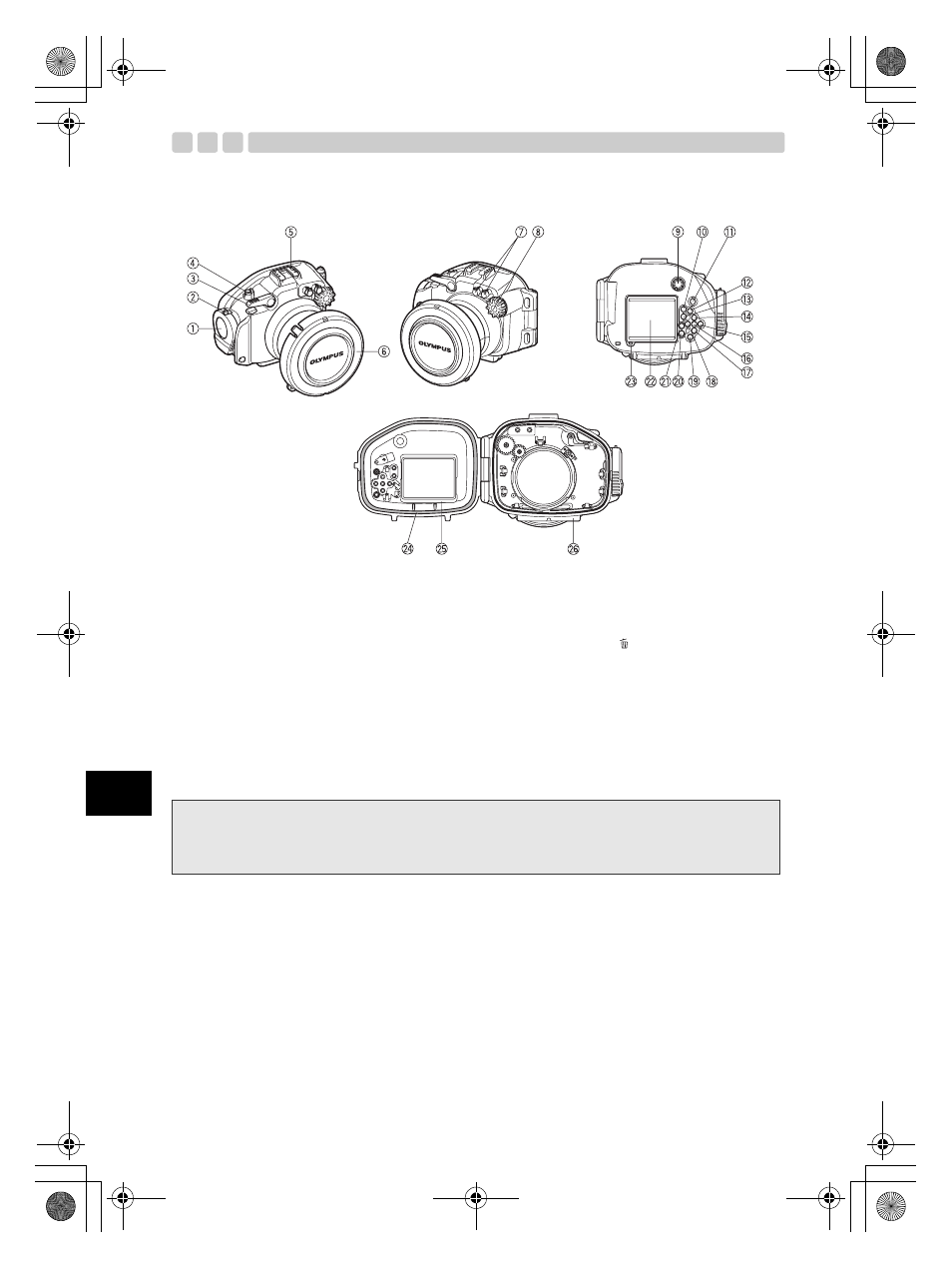

Names of the parts
Note:
Case operation parts marked by * corresponds to the operation parts of the digital camera. When the
operation parts of the Case are operated, the corresponding functions of the digital camera will operate. For
details of the functions, refer to the instruction manual for the digital camera.
1 Open/close dial
2 Slide lock
*3 Shutter lever
*4 ON/OFF button
5 Accessory mount
6 Body cap
7 Optical fiber cable insertion
slot, cap
8 Zoom dial
*9 Mode dial knob
*0 U button
*a ( (REC) button
*b
INFO (Info display) button
*c G/Fn button
*d F (Exposure correction)
button/Cross-cursor button
S
*e # button/Cross-cursor
button X
*f OK button
*g j
Y button/Cross-cursor
button T
*h P button/Cross-cursor
button W
*i MENU button
*j (Erase) button
*k q (Play) button
l LCD monitor window
m LCD hood
n O-ring (POL-EP03)
o LCD inner hood
p Tripod seat
