EN 11
EN

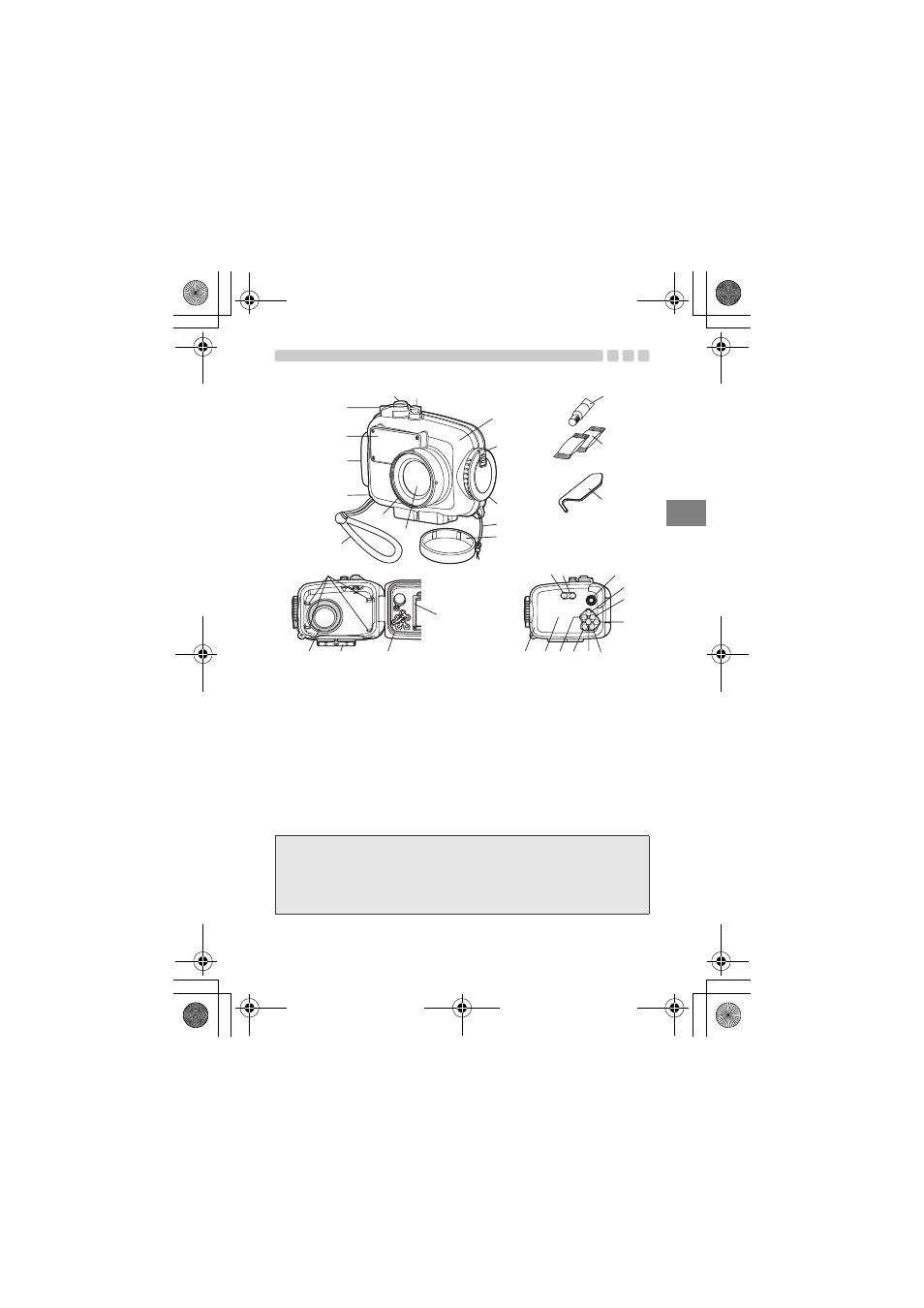

Names of the parts
*
*
*
1 Palm grip
2 Diffuser
3 Zoom lever
4 Shutter button
5 POWER button
6 Front lid
7 Slide lock
8 Open/close dial
9 Lens cap strap
0 Lens cap
a Lens window
b Lens ring
*
*
*
*
*
c Hand strap
d Hand strap ring
e Loading guide rails
f LCD inner hood
g O-ring
h Tripod seat
i Light shield hood
j K button
k q button
l Mode dial knob
m F button/arrow pad
n # button/arrow pad
*
*
*
*
* o OK button
p S button
q Y button/arrow pad
r MENU button
s & button/arrow pad
t LCD monitor window
u Rear lid
v Grease for silicone O-ring
(White cap)
w Silica gel
x O-ring remover
Note:
The Case operation parts marked by * corresponds to the operation parts of
the digital camera. When the operation parts of the Case are operated, the
corresponding functions of the digital camera will operate. For details of the
functions, refer to the instruction manual for the digital camera.
2
3
4 5
6
7
8
9
0
a
b
c
d
e
f
g h i
j k l
v
w
x
m
n
o
p q r s t u
1
