WIRELESS ROUTER ADSL2+
58

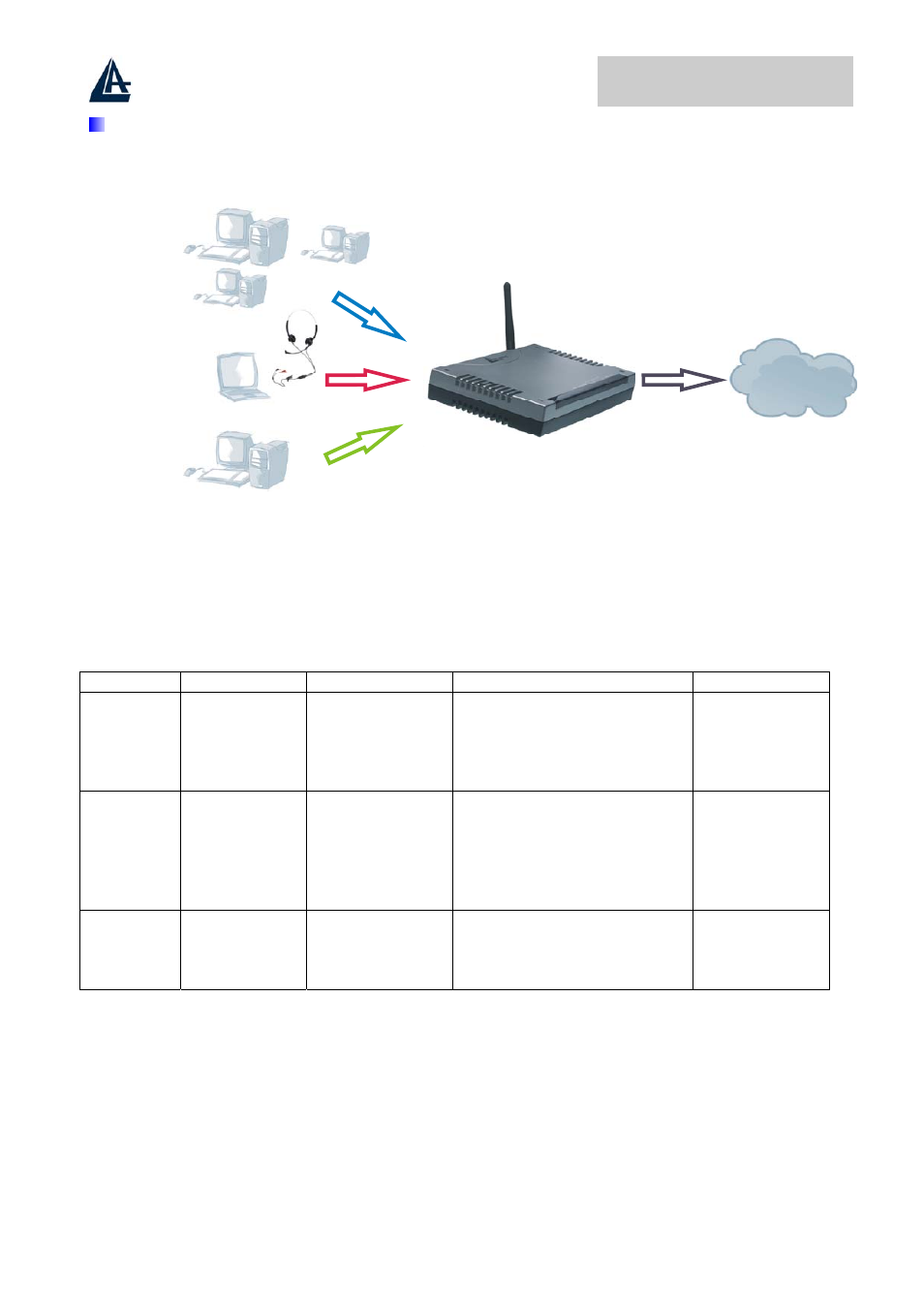

QOS example for your Network
Connection Diagram
INTERNET
FTP Server
HTTP WEB
brosing
users
VoIP
Software
ADSL Subscription Rate
Upstream: 256 kbps
Downstream: 1024 Mbps
Example QOS Plan
:.
Application IP or Ports Control Flow Data Rate Time Schedule
VoIP User 192.168.1.1 Outgoing Minimal 20% with high
priority for non-used
bandwidth with SDCP
marking Class 1 Gold
Service Always
FTP Sever 192.168.1.100 Incoming and
Going
outgoing :minimal 30%. Data
rate.
incoming :minimal 30%. Data
rate.
Both with low priority for non-
used bandwidth. Only Working
Hours 9:00 to
18:00 Monday
to Friday.
HTTP web
browsing
users 80 Incoming and
Going
outgoing : limited 20%. Data
rate.
incoming : limited 30%. Data
rate. Always
