Atlantis Land A02-RA241-W54 - Manual (Page 48)

WIRELESS ROUTER ADSL2+
42

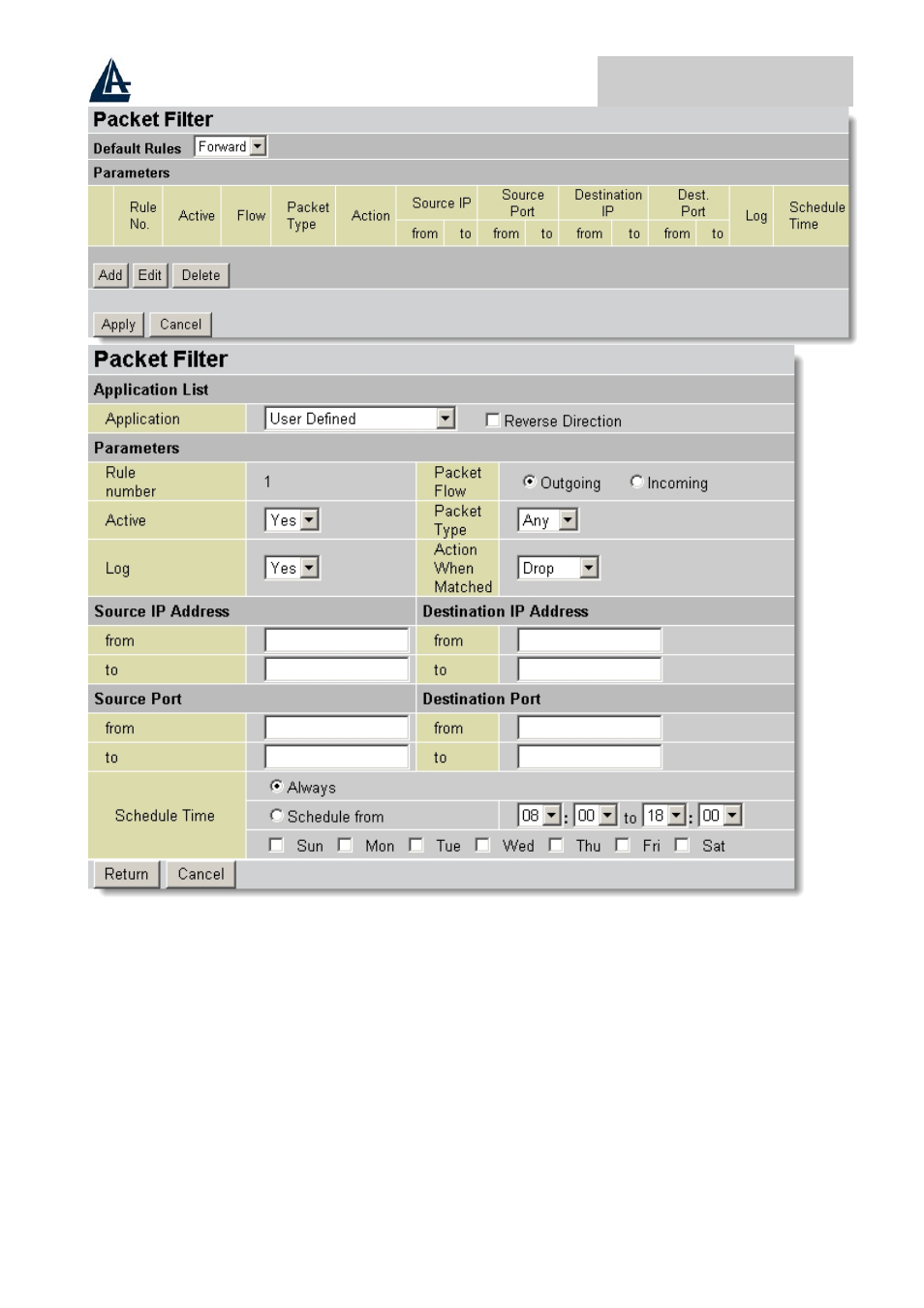

Packet filtering function enables you to configure your router to check specified
internal/external user (IP address) from Internet access, or you can disable specific service
request (Port number) to /from Internet. This configuration program allows you to set up
different filter rules up to 10 for different users based on their IP addresses or their network
Port number. The relationship among all filters is “or” operation, which means the device
checks these different filter rules one by one, stating from the first rule. As long as one of the
rules is satisfied, the specified action will be taken.
• Add: Click this button to add a new packet filter rule. After click, next figure will
appear.
• Edit: Check the Rule No. you want to edit. Then, click the “Edit” button.
• Delete: Check the Rule No. you want to delete. Then, click the “Delete” button.
