Atlantis Land A02-RA241-W54 - Manual (Page 13)

WIRELESS ROUTER ADSL2+
7

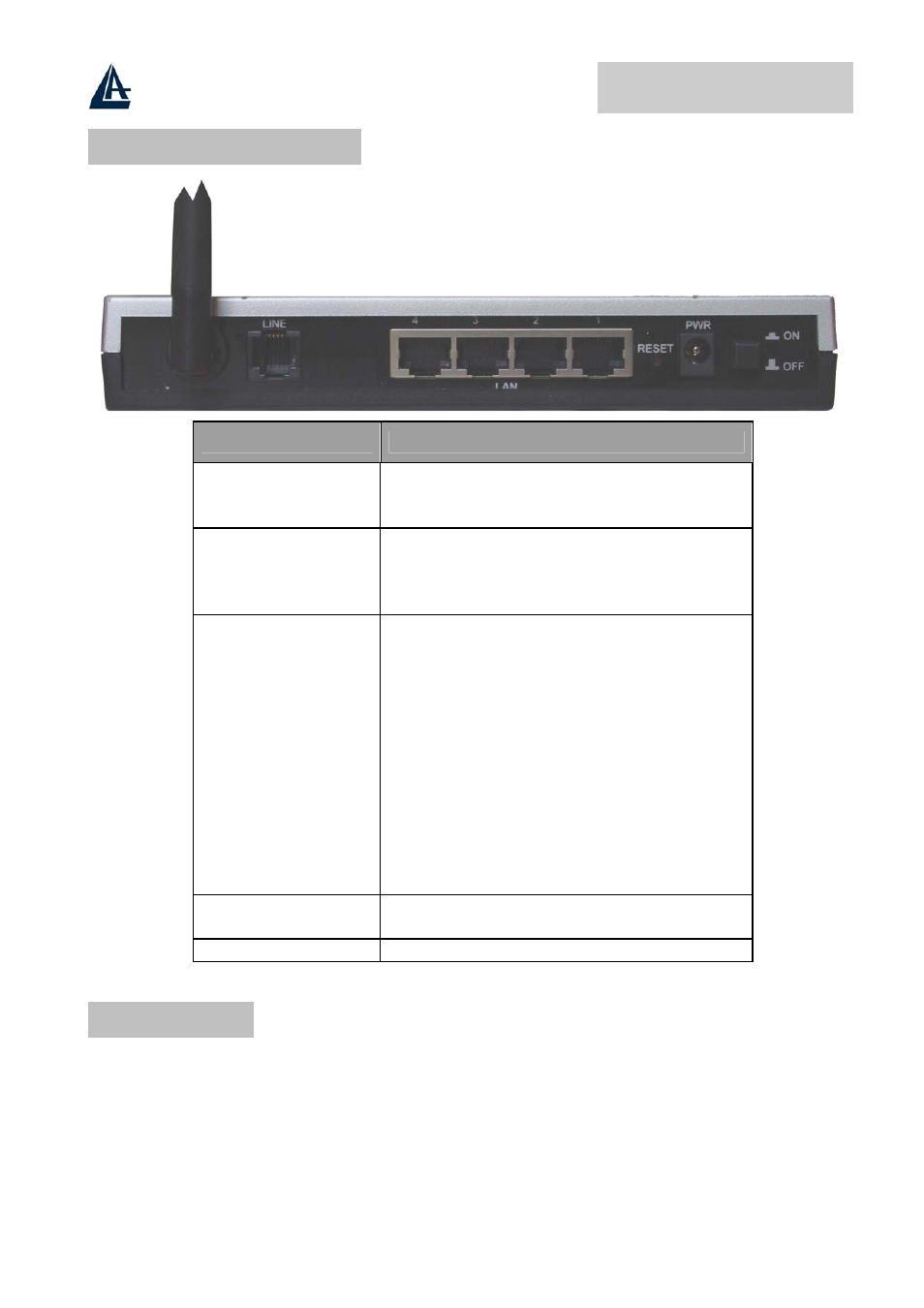

2.3 The Rear Ports
PORT Meaning
LINE
(RJ-11) Connect the supplied RJ-11 cable to this
port when connecting to the
ADSL/telephone network.
LAN
(4 *RJ-45)* Connect an UTP Ethernet cable to one of
the four LAN ports when connecting to a
PC or an office/home network of 10Mbps
or 100Mbps.
RESET Recovery procedures for a lost web
interface password:
After turning the router on press the
Emergency/Failure Recovery Button on
the back of the modem, and hold the
button in until all lights on the modem flash
and it reboots with factory default settings.
The login will be reset to admin and the
password will be reset to admin, and the
modem will be accessible via its default IP
address at http://192.168.1.254/
This is used when you can not login to the
router, e.g. forgot the password)
POWER (Jack) Connect the supplied power adapter to this
jack.
POWER Switch A Power ON/OFF switch
2.4 Cabling
The most common problem is bad cabling or ADSL line. Make sure that all connected
devices are turned on. On the front of the product is a bank of LEDs. As a first check, verify
that the LAN Link, ADSL , PWR, SYS LEDs are lit and WLAN is blanking. If they are not,
verify that you are using the proper cables.
Ensure that all other devices connected to the same telephone line as your router (e.g.
telephones, fax machines, analog modems) have a line filter (A01-AF2) connected between
them and the wall socket (unless you are using a Central Splitter or Central Filter installed by
