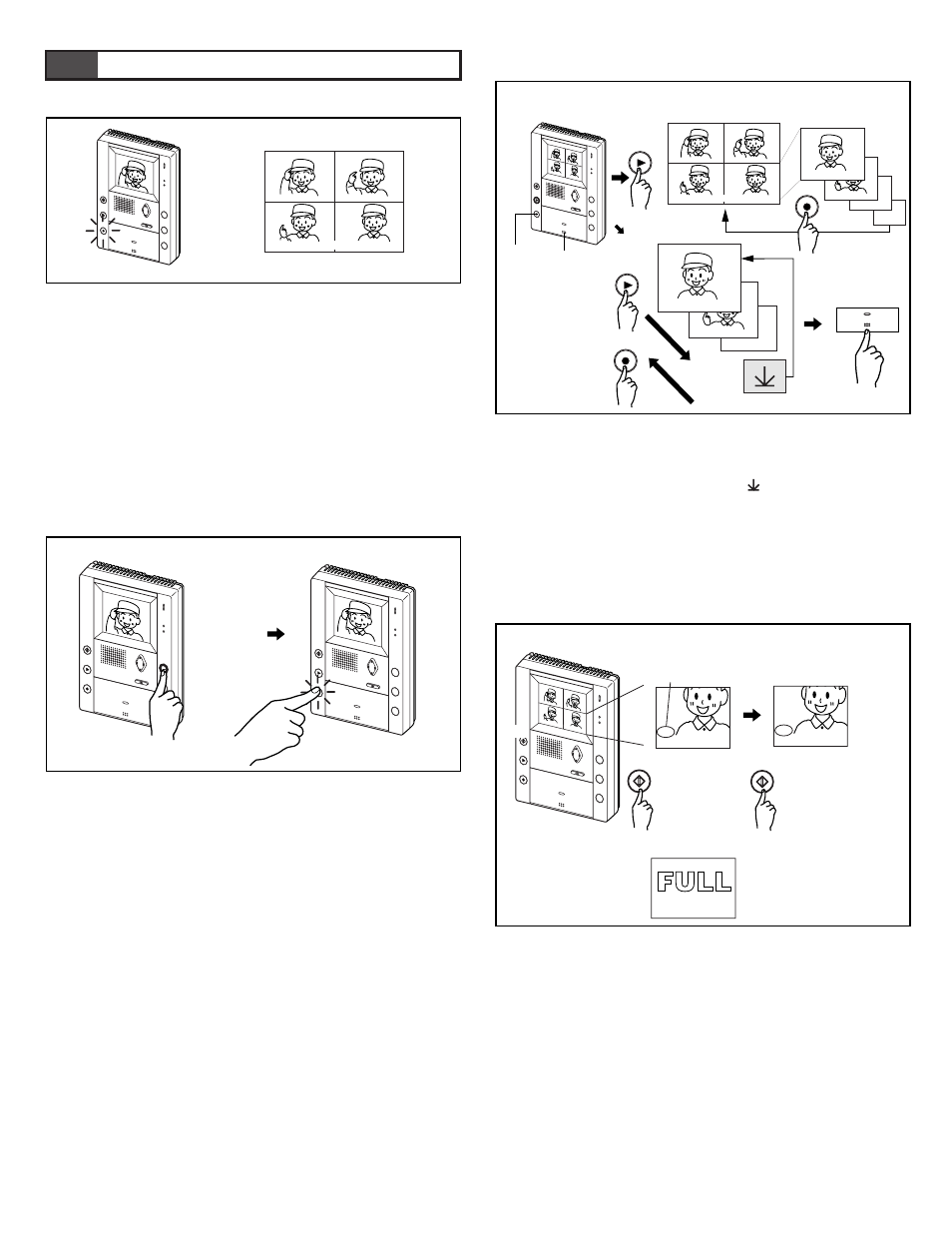

Save in memory
1 (During replay) Press SET button. The image on the screen is
stored in memory. On the screen, M5 indicates the 5th image
(Max. 8 per system).
Note:The image stored in memory will not be overwritten
during another operation. To erase, proceed to ERASE
operation.
2 To release (During replay) While the image is on the screen,
press SET button. The “M” goes out, and memory is cleared.
Note:The image in memory will not be erased, but overwritten
(erased) when new picture is saved.
3 The “on-screen” FULL indicates it is the 9th picture whose
memory is void.
Note:When one frame picture is memorized, all four frame
pictures are memorized as one picture.
8-4
8-3
Replay
1. Press PLAY button. The latest picture is displayed.
2. Press PLAY button repeatedly to view each previous picture
that has been saved. The screen with means the last page.
Press REC button to view retroactively.
3. In replay of 16 (4 frame) pictures, press REC button to view
each frame picture in full screen.
4. To end, press TALK button once, or it will automatically turn
off in approx. 1 minute.
8-2
Manual picture memory
1. Press Monitor button to display the image on the monitor.
2. Press REC button. The REC button is lit to indicate the image
is being saved.
Notes:
• When door calls in, an auto-saved image will be overwritten if
saved manually.
• Manually picture memory is a full-screen image regardless of
the initial program mode.
Automatic picture memory
When video door station calls in, picture memory is automatically
activated (JA-2MECD only). REC button is steadily lit to indicate.
Put JA-2MECD in Surveillance-SET mode to receive image from
Motion-detection camera.
Notes:
•
Automatic picture memory is a built-in feature, and cannot be
turned off.
•
Auto picture memory is not effective;
- During video monitoring.
- For approx. 4 sec. after ending replay.
- For approx. 15 sec. after the previous save.
8-1
8
PICTURE MEMORY
