Scanner

3-3

3.3

Parts of the Scanner

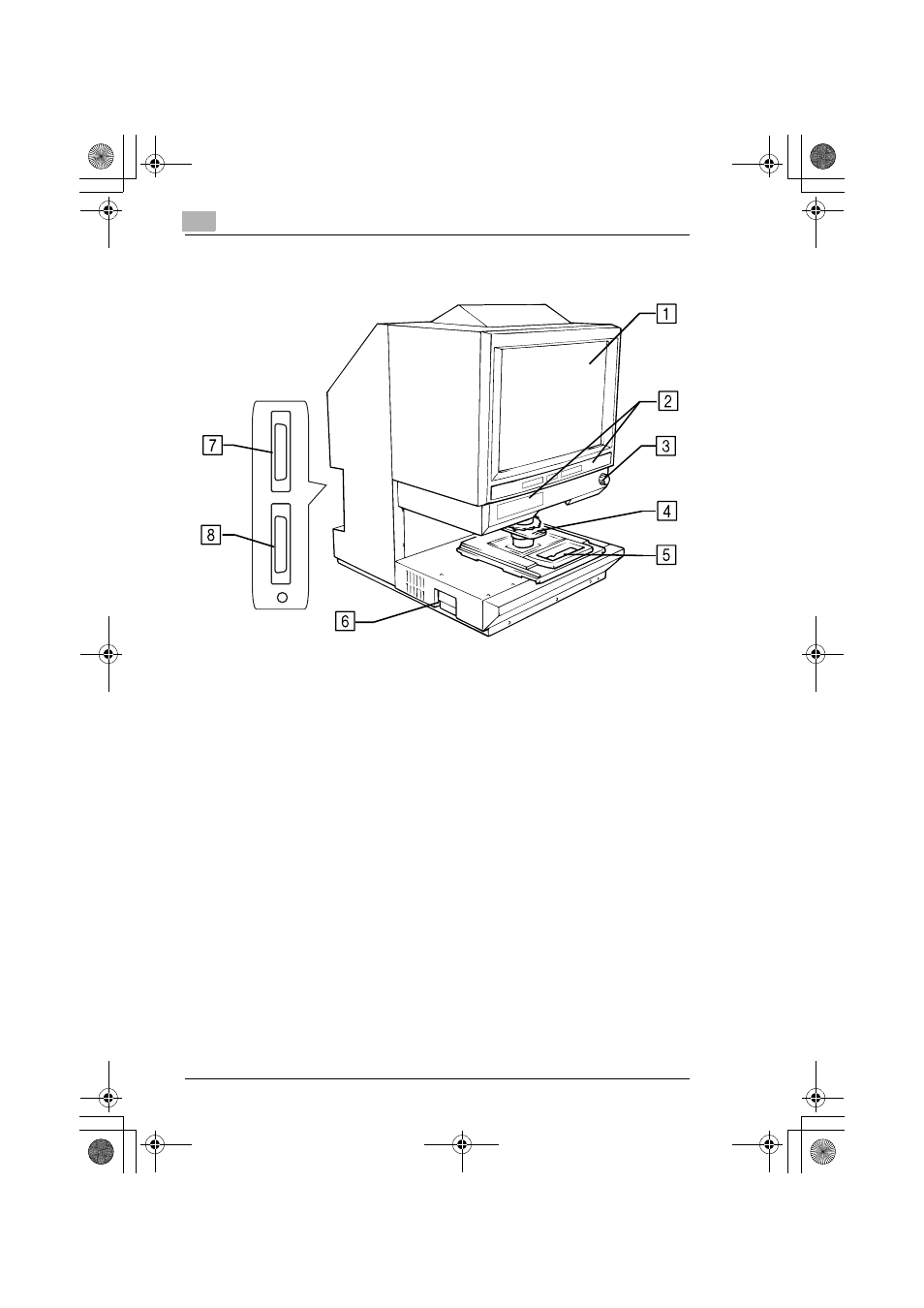

1. Screen:

The image taken from the film is projected here
for viewing. The frame on the Screen marks the
data reading range.

2. Control Panel:

Many operations are controlled from the keys and
indicators provided here.

3. Image Rotation Knob:

Used to turn the Prism Unit built into the Scanner,
turning the image on the Screen.

4. Projection Lens (Optional):

Used to change the size of the image on the
Screen.

5. Fiche Carrier 5 (Optional):

Supports the viewing of microfiche.

6. Projection Lamp Unit:

Contains a Projection Lamp (halogen lamp)
which projects the film image onto the Screen.

7. Printer Connector:

Connects the scanner to the printer through an
interface cable.

8. SCSI Connector:

Connects the scanner to the Personal Computer
through a SCSI cable.

USA and Canada area: Standard

except USA and Canada area: Option
