2. Connect the front antenna cable and rear antenna cable to the Wi-Fi card module.

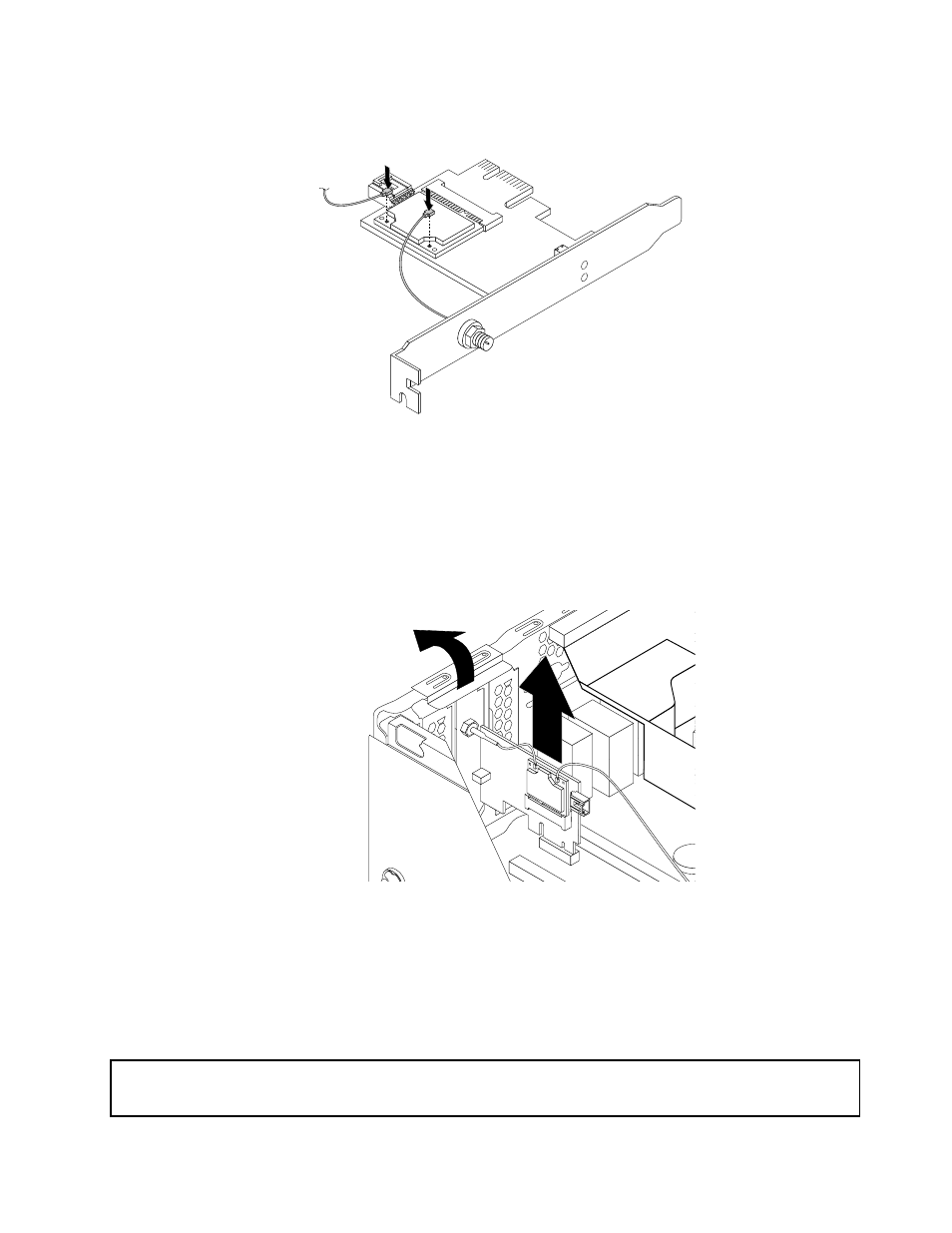

Figure 75. Installing the Wi-Fi antenna cables

3. Install the Wi-Fi adapter card into the PCI Express x1 slot on the system board. See “Locating parts on

4. If the installed Wi-Fi card module supports the Bluetooth function, use a Bluetooth cable to connect the

Bluetooth connector on the Wi-Fi adapter card to the front USB connector on the system board.

5. Pivot the card latch to the closed position to secure the Wi-Fi adapter card.

Figure 76. Installing the Wi-Fi adapter card

What to do next:

• To work with another piece of hardware, go to the appropriate section.

• To complete the installation or replacement, go to “Completing the parts replacement” on page 123.
