1140 DC-in connector, Tablet Digitizer Pen case and switch assembly,
and base cover
For access, remove these FRUs in order:
•
“1010 Tablet Digitizer Pen” on page 62
• “1020 Battery pack” on page 63
• “1030 Hard disk drive or solid-state drive” on page 63
• “1060 Keyboard” on page 67
• “1070 Palm rest” on page 70
• “1090 PCI Express Mini Card for wireless LAN/WiMAX” on page 73
• “1100 PCI Express Mini Card for wireless WAN or mSATA solid-state drive” on page 76
• “1110 Bluetooth daughter card” on page 79
• “1120 Keyboard bezel” on page 80
• “1130 LCD unit” on page 83

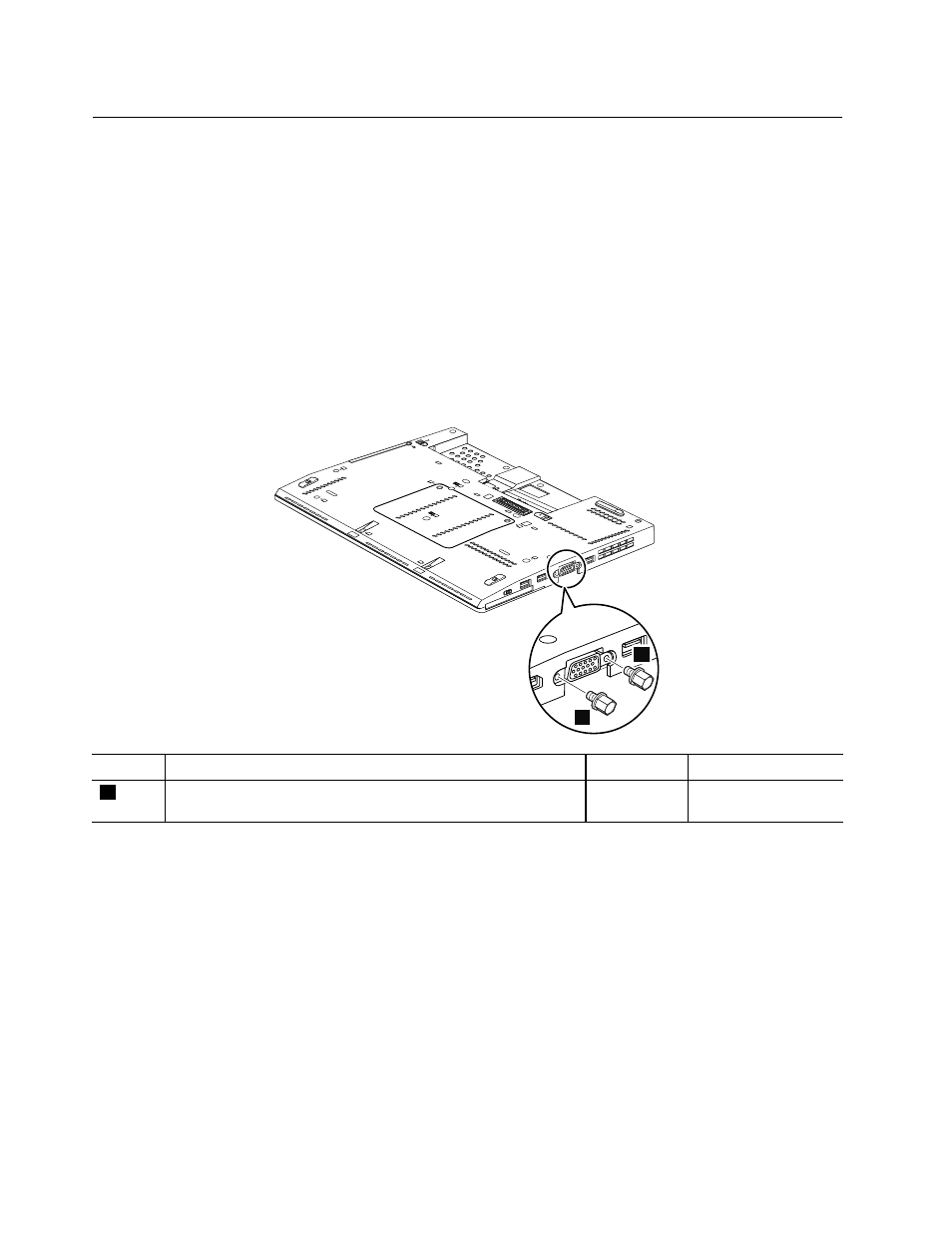

Removal steps of DC-in connector, Tablet Digitizer Pen case and switch assembly, and base cover
1
1
Step Screw (quantity) Color Torque
1 HEX nut washer&nylok #4R (2) Silver 0.392 Nm
(4 kgf-cm)
86 Hardware Maintenance Manual
