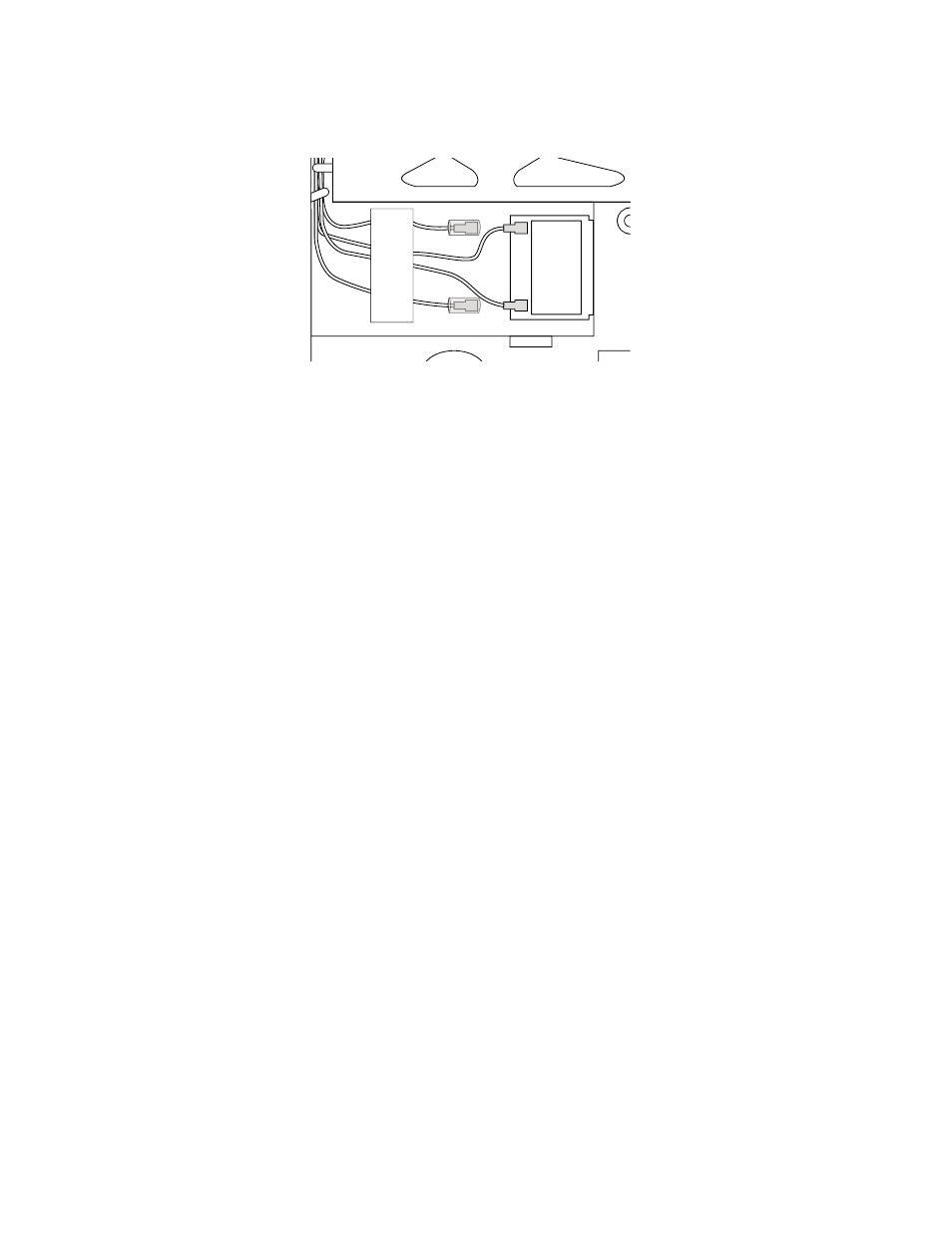

If the computer you are servicing is the wireless WAN-ready model and does not have a wireless WAN card,
put the antenna cables in the cable protection tube and place them as shown in the following illustration.
Removal steps of mSATA solid-state drive
The computer comes with either a PCI Express Mini Card for wireless WAN or an mSATA solid-state drive. If
the computer is equipped with an mSATA solid-state drive, it is installed in the wireless WAN card slot.
• Do not drop the drive or apply any physical shock to it. The drive is sensitive to physical shock. Improper
handling can cause damage and permanent loss of data.
• Before removing the drive, have the user make a backup copy of all the information on it if possible.
• Never remove the drive while the computer is operating or in suspend mode.
• Ensure that you partition the mSATA solid-state drive after installing it on the computer you are servicing.
Otherwise, the mSATA solid-state drive will not function correctly. For instructions on on how to partition
an mSATA solid-state drive, go to
