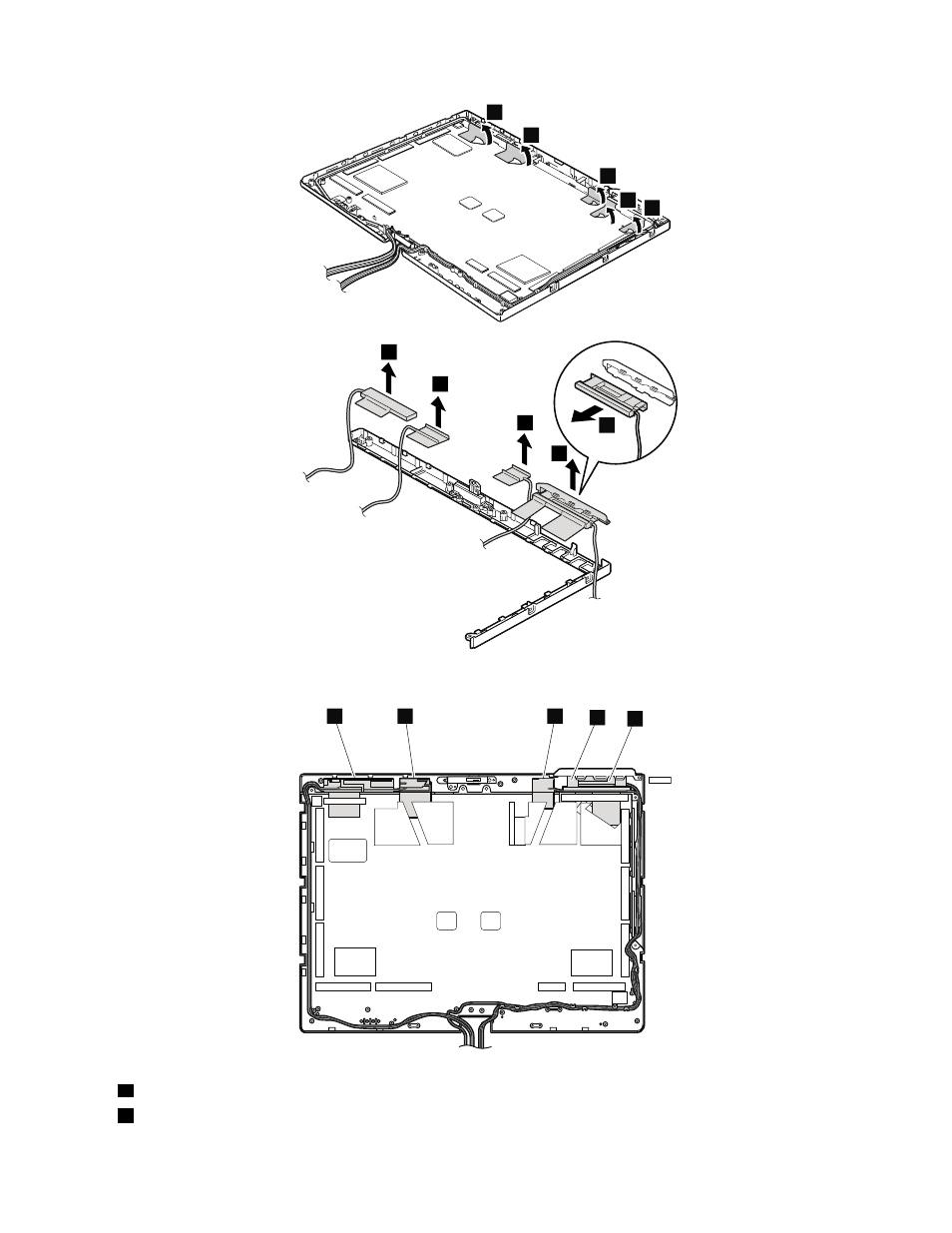

When installing: Place the antenna assembly as shown in the following illustration.

a

b

c

d

e

a

Wireless WAN antenna, AUX (blue)

b

Wireless LAN antenna, AUX (black)

Chapter 9

.

Removing or replacing a FRU

107
