2070 LCD rear cover and wireless antenna cables
For access, remove these FRUs in order:
•
“1020 Battery pack” on page 63
• “1050 Hinge cap” on page 67
• “1060 Keyboard” on page 67
• “1070 Palm rest” on page 70
• “1120 Keyboard bezel” on page 80
• “1130 LCD unit” on page 83
• “2010 Button bezel and fingerprint reader” on page 93
• “2020 LED board” on page 95
• “2030 LCD panel” on page 98
• “2040 Integrated camera” on page 101
• “2050 Hinge” on page 103
• “2060 Speaker assembly, built-in microphones, and LCD cables” on page 104

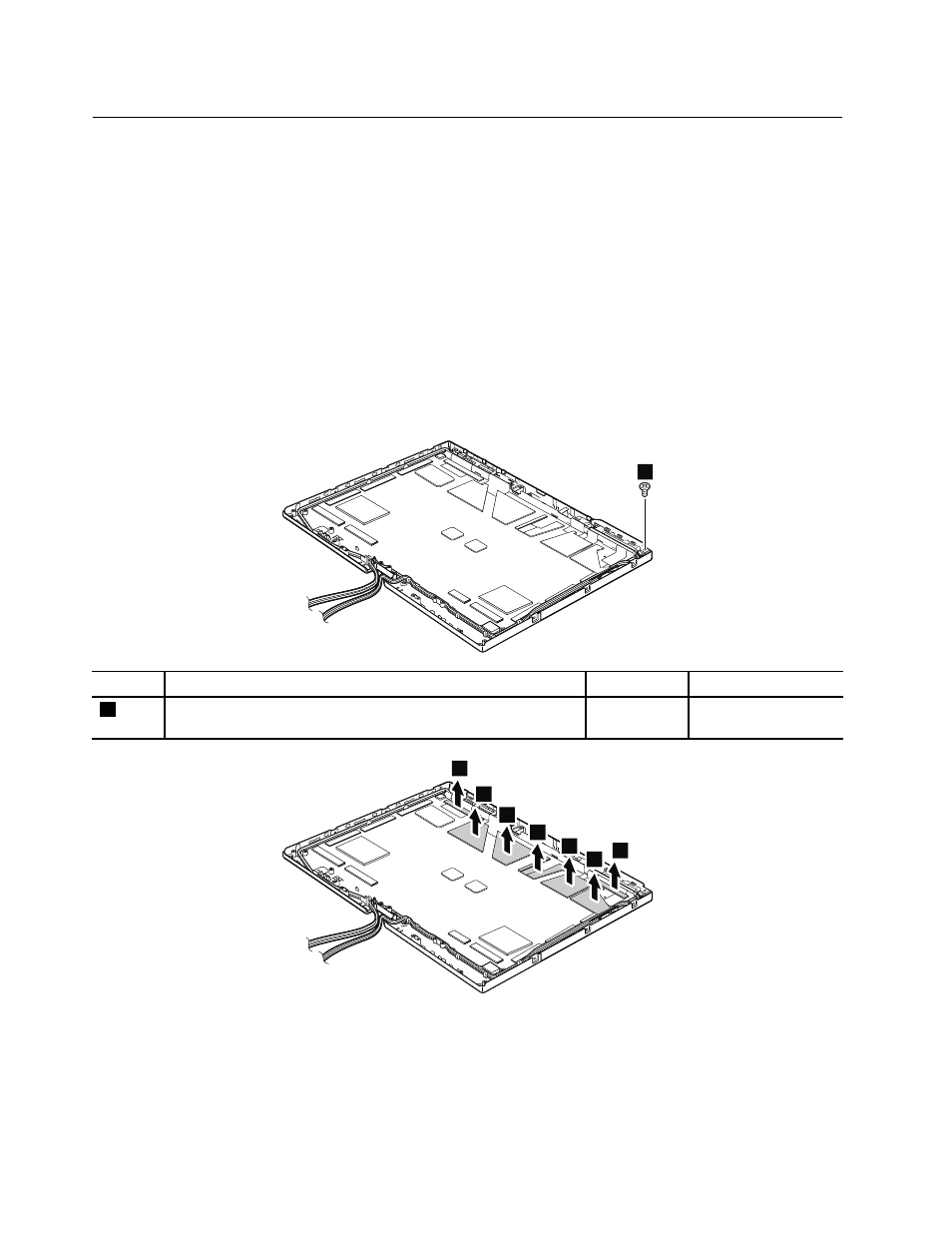

Removal steps of LCD rear cover and wireless antenna cables
1
Step Screw (quantity) Color Torque
1 M2 × 3.5 mm, wafer-head, nylon-coated (1) Silver 0.181 Nm
(1.85 kgf-cm)
2
2
2
2
2
2
2
