Attention: When you route the cables, ensure that they are not subject to any tension. Tension could cause
the cables to be damaged by the cable guides, or a wire to be broken.
2020 LCD hinge kit
For access, remove these FRUs in order:
•
“1020 Base cover” on page 43
• “1030 Battery pack” on page 44
• “2010 LCD Unit” on page 74

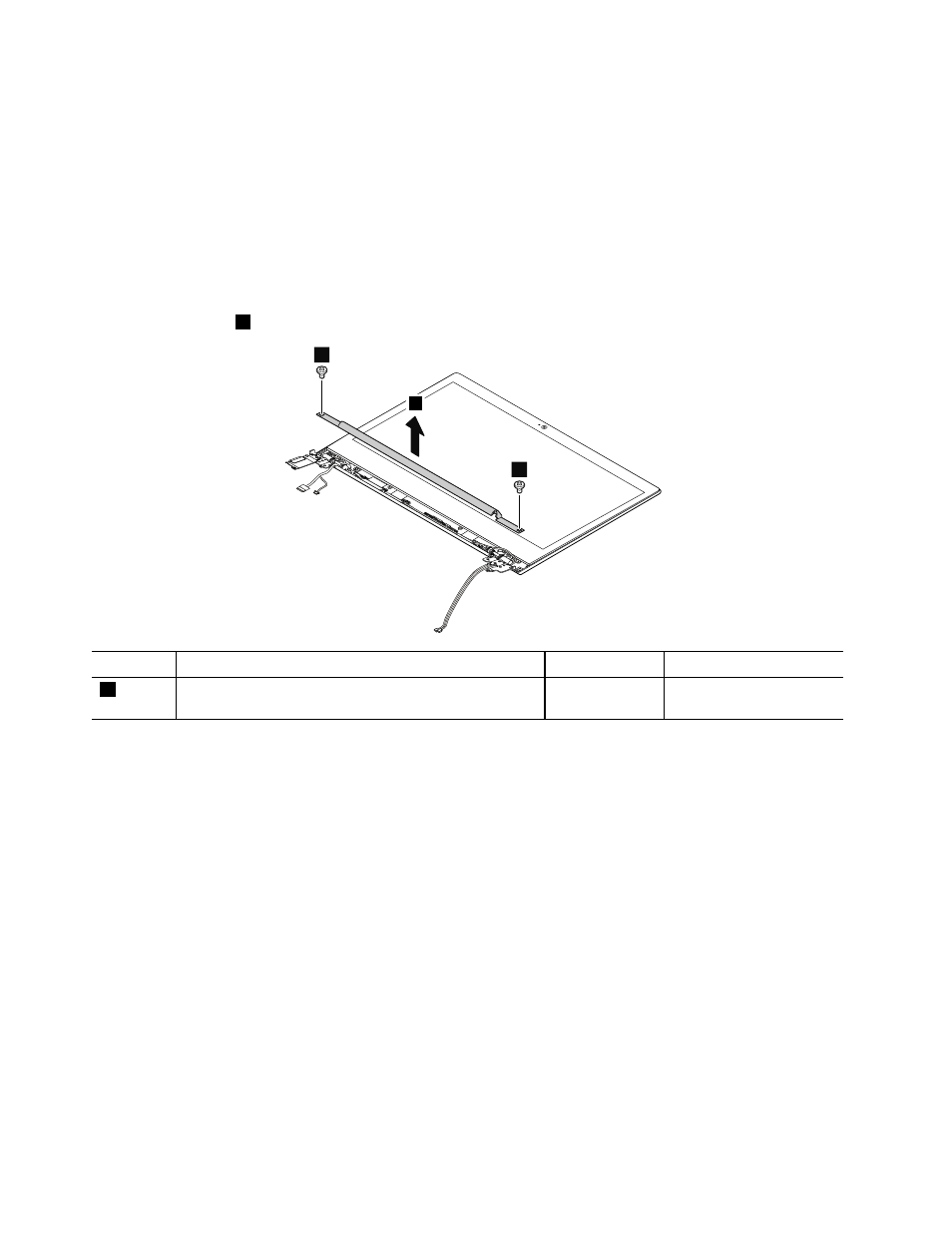

Removal steps of the LCD hinge cap
Remove the screws 1 .
2
1
1
Step Screw (quantity) Color Torque
1 M2 × 4 mm, flat-head, nylon-coated (2) Black 0.181 Nm
(1.85 kgf-cm)
