Chapter 6. Locations
This chapter provides information about component locations.
Locating computer controls, connectors, and indicators
This topic introduces the locations of the computer controls, connectors, and indicators.
Front view
1
2
2
3
8
9
11
12
10
4 5 6 7

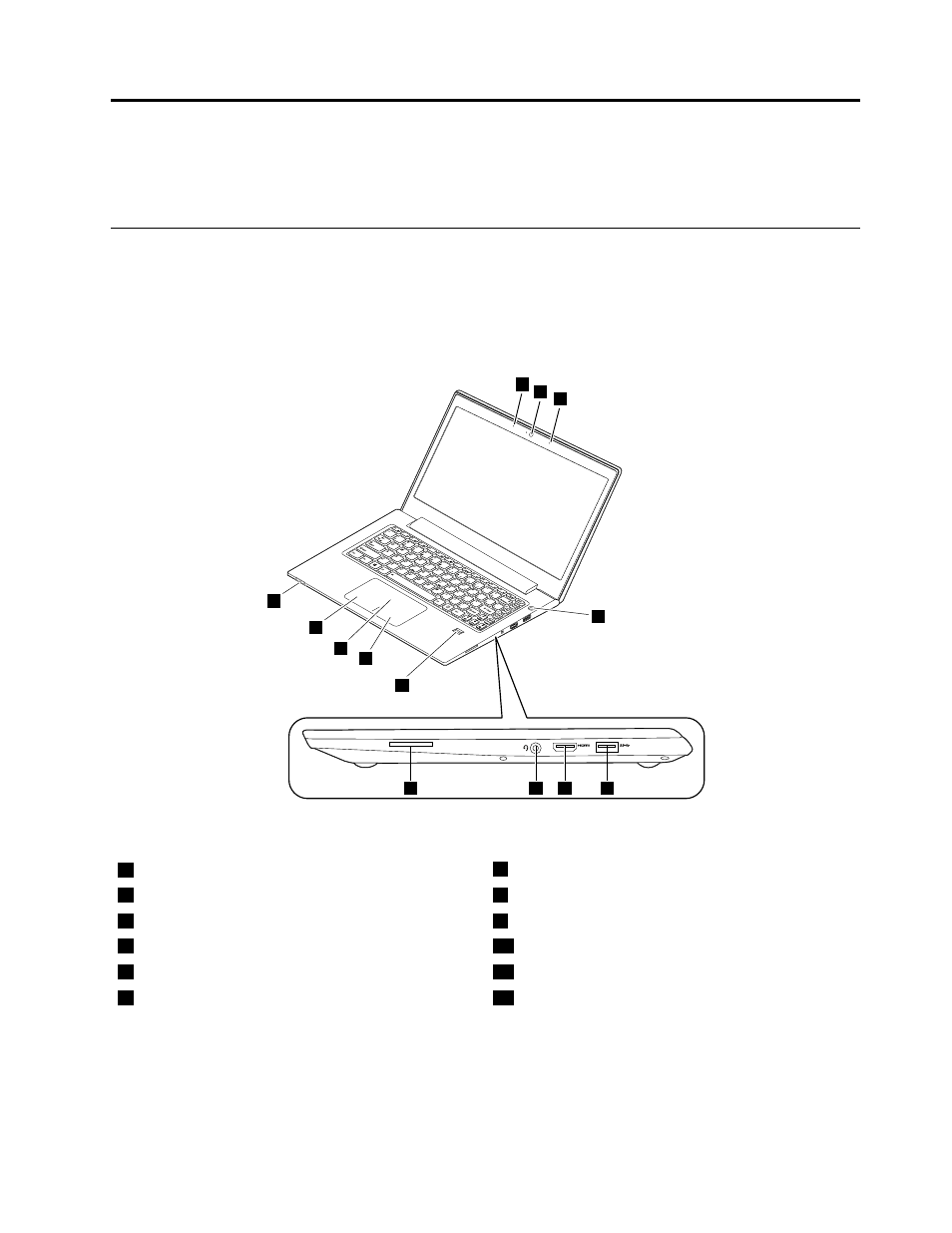

Figure 1. Front view
1 Camera 7 Media card reader slot
2 Microphones 8 Fingerprint reader
3 Power button 9 Right-click button
4 USB 3.0 connector 10 Touch pad
5 HDMI connector 11 Left-click button
6 Combo audio jack 12 Status indicators
Note: For the description of each status indicator, see Chapter 4 “Status indicators” on page 29.
