1160 i/o board – Lenovo V4400u Notebook User Manual
Page 68
Remove the system board.
14
1160 I/O board
For access, remove these FRUs in order:
•
•
“1030 Battery pack” on page 44
•
“1080 Hard disk drive assembly” on page 48
Removal steps of the I/O board

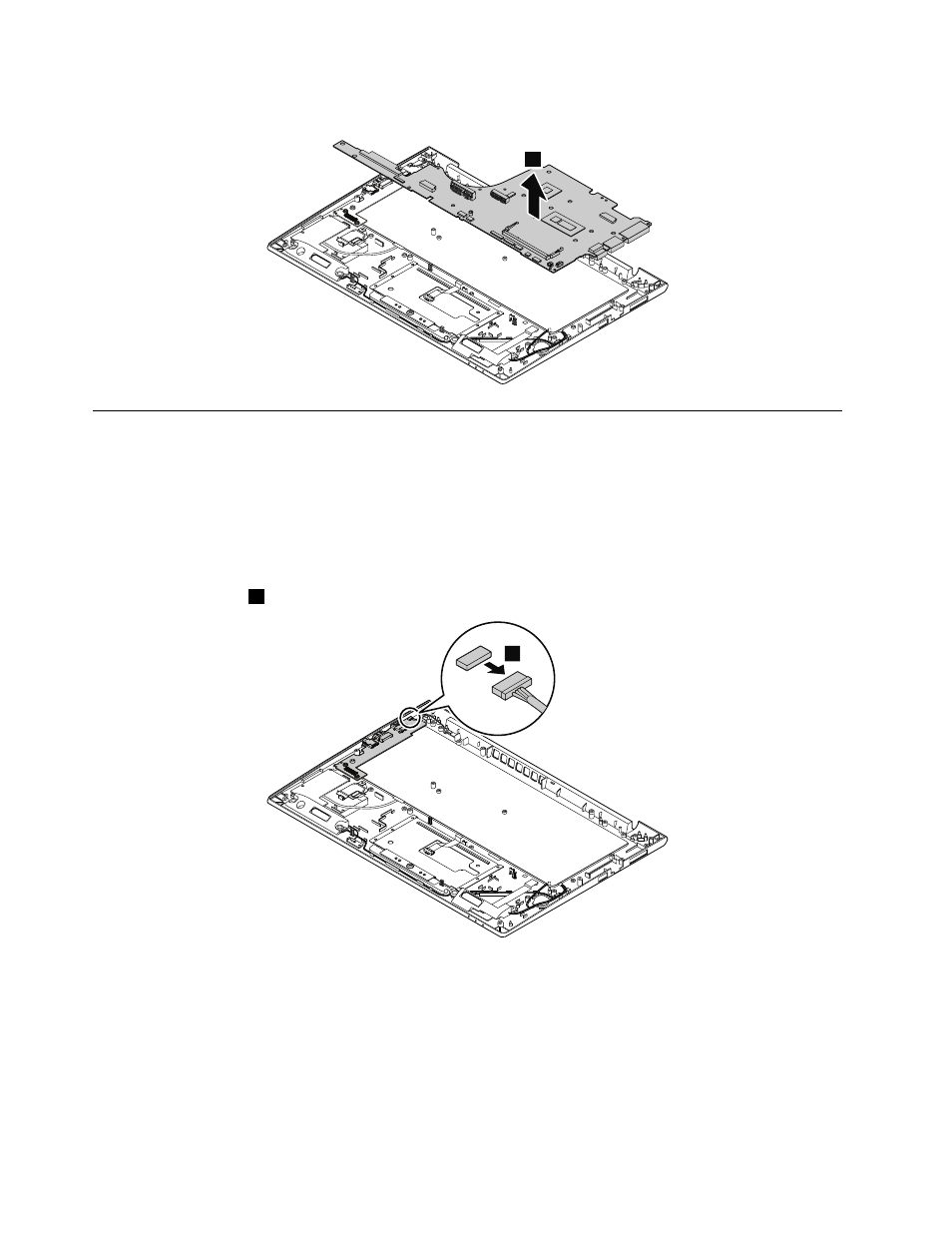

Detach the connector
1
.
1
When installing: Ensure that the connector is attached firmly to the system board.
62
Hardware Maintenance Manual
