2020 LCD hinge kit
For access, remove these FRUs in order:
•
“1020 Base cover” on page 43
• “1030 Battery pack” on page 44
• “2010 LCD Unit” on page 64

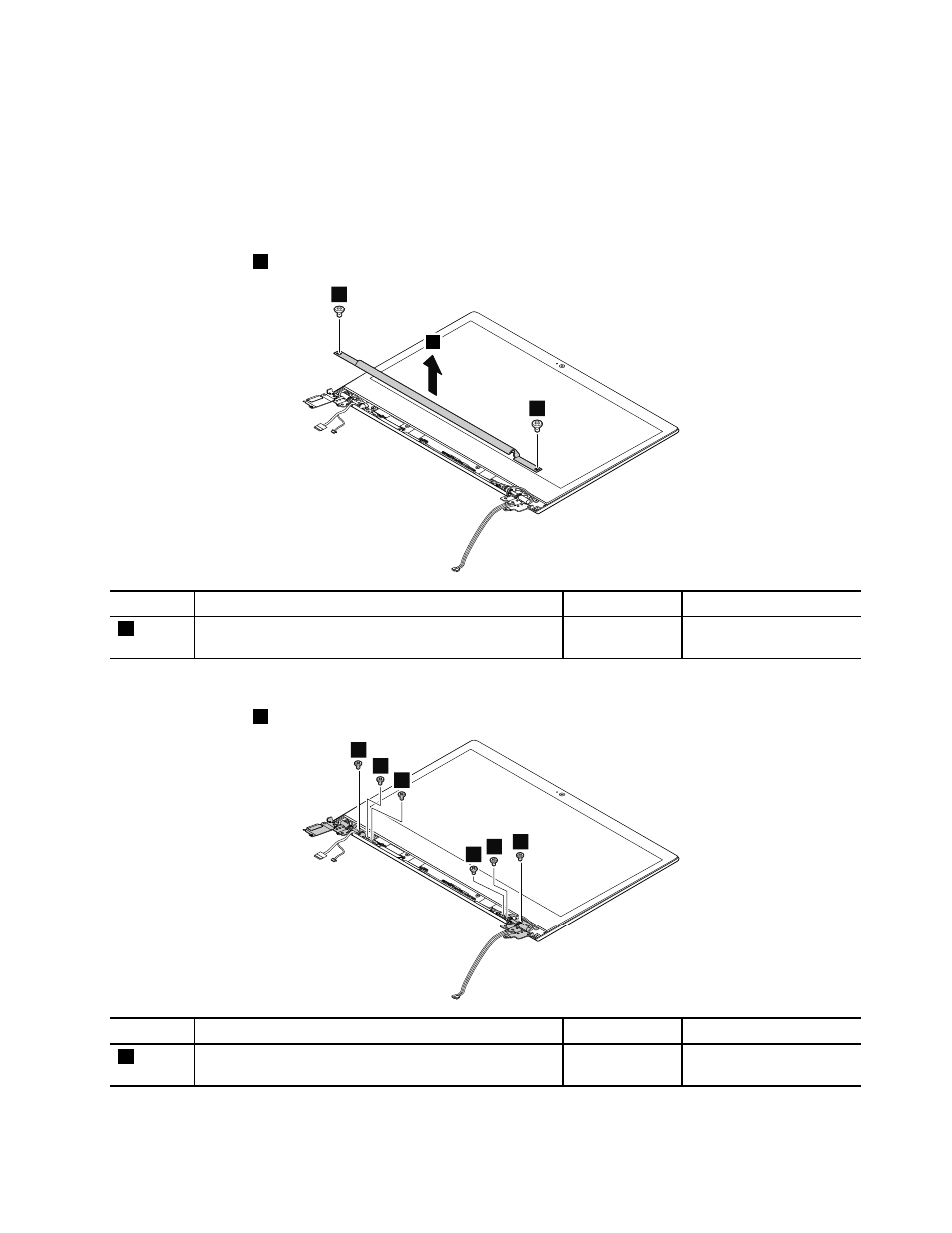

Removal steps of the LCD hinge cap
Remove the screws 1 .
2
1
1
Step Screw (quantity) Color Torque
1 M2 × 4 mm, flat-head, nylon-coated (2) Black 0.181 Nm
(1.85 kgf-cm)
Removal steps of the LCD hinge
Remove the screws 1 .
1
1
1
1
1
1
Step Screw (quantity) Color Torque
1 M2.5 × 3.5 mm, flat-head, nylon-coated (6) Black 0.392 Nm
(4.0 kgf-cm)
