9. Slide the cover to the front of the chassis so that the holes in the cover align with the corresponding

ones on the chassis. Then, install the screws to secure the cover.

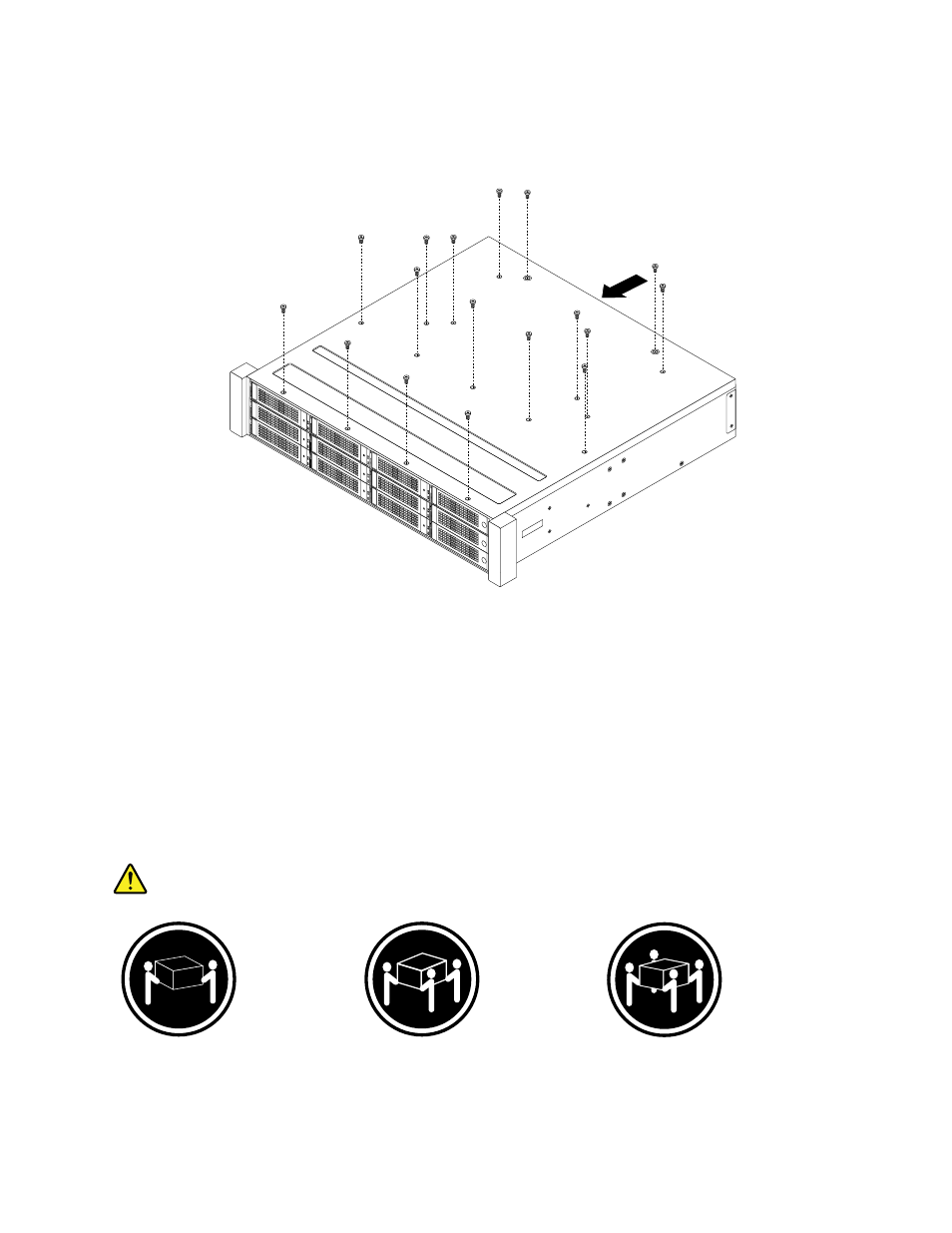

Figure 40. Reinstalling the cover

Installing the storage array into the rack cabinet

Notes:

• The depth of the rack cabinet must be within the range from 600 mm (23.62 inches) to 850 mm (33.46

inches).

• Use the correct type of screws in your rail kit to install the side rails to the rack cabinet and secure the

storage array to the side rails. The screws in your rail kit might look slightly different from the illustrations.

• The weight of the storage array is rated above 16 kg (35.27 lb). Refer to the following statement for safe

practices when lifting.

≥ 18 kg (39.7 lb)

≥ 32 kg (70.5 lb)

≥ 55 kg (121.2 lb)

< 32 kg (70.5 lb)

< 55 kg (121.2 lb)

< 100 kg (220.5 lb)
