• If you are replacing a drive cage, do the following:
a. Remove the 2.5-inch drives from the failing drive cage. Then, remove the fan assembly that is
installed near the drive cage. See “Installing or replacing a hot-swap drive” on page 33 and
“Replacing the fan assembly” on page 42.
b. Remove the screws 1 . Then, pull the failing drive cage out of the chassis.

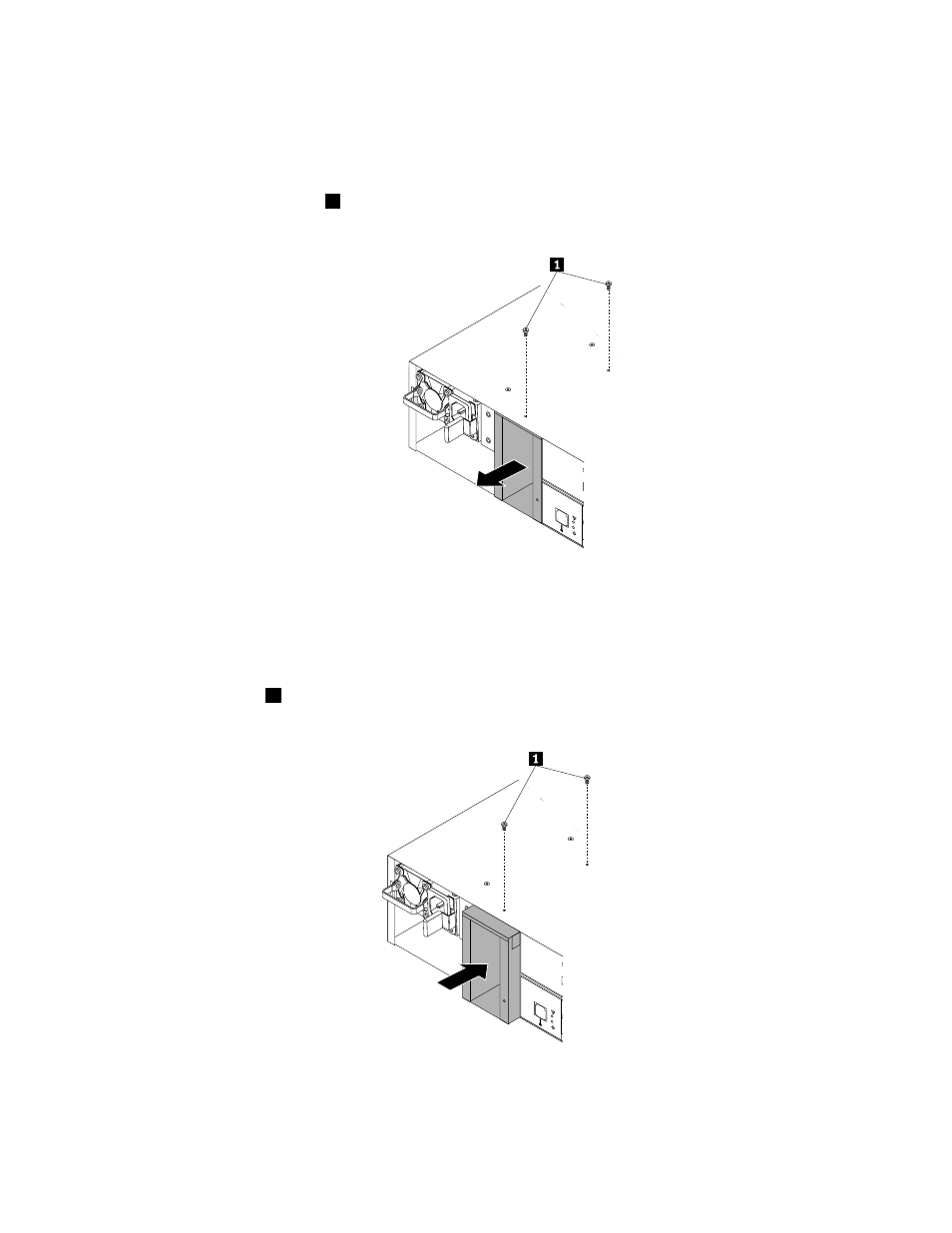

Figure 35. Removing the drive cage
3. Touch the static-protective package that contains the new drive cage to any unpainted surface on the
outside of the storage array. Then, remove the new drive cage from the package.
4. Note the orientation of the new drive cage and slide it into the chassis until it snaps into position. Then,
install the screws 1 to secure the drive cage to the chassis.
Figure 36. Installing a drive cage
Chapter 6 . Installing, removing, or replacing hardware 47
