5. Remove the screws that secure the backplane to the chassis. Then, lift the failing backplane off the

chassis.

Note: Use a screw driver with a long handle to remove the screws

1

from the bottom of the chassis.

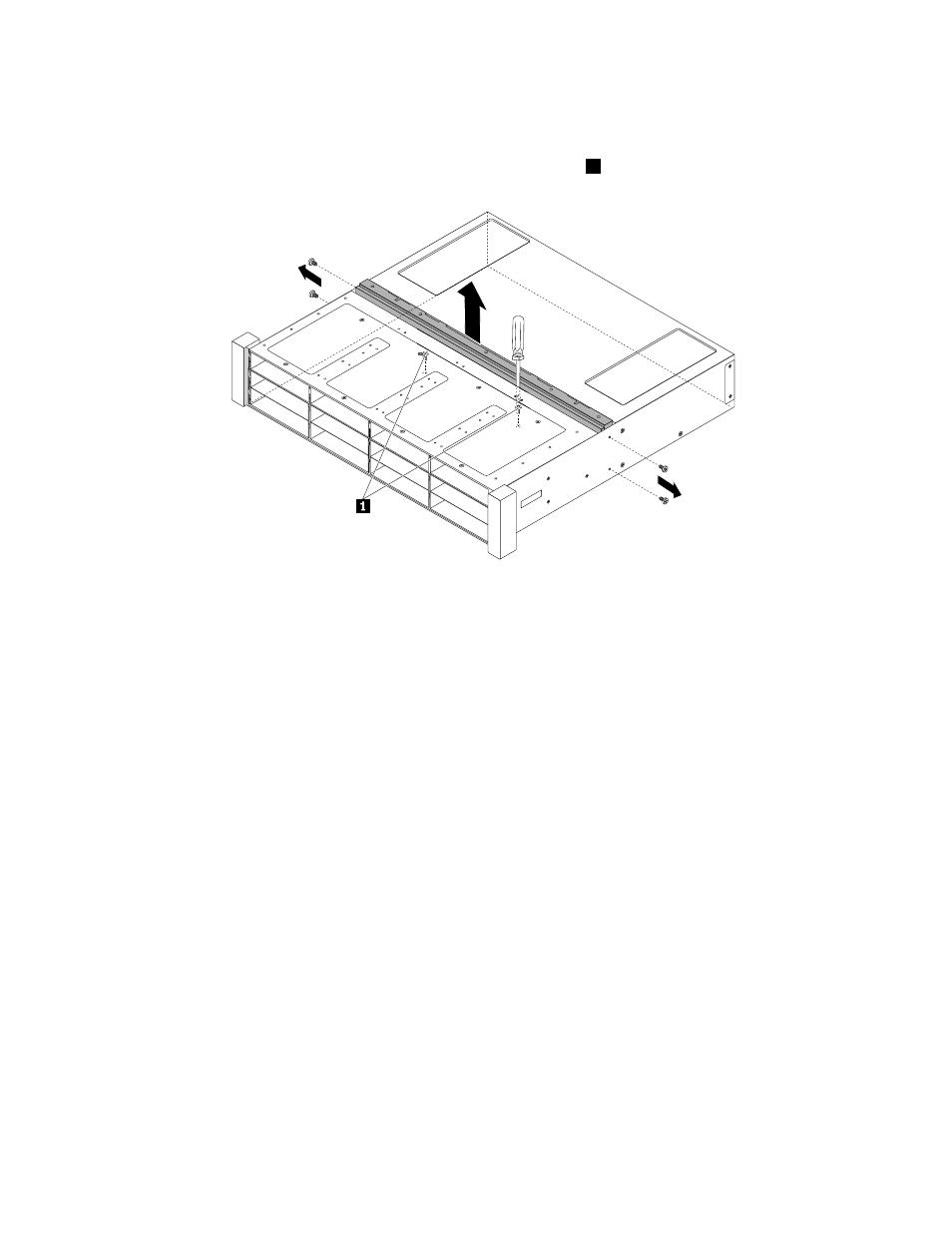

Figure 38. Removing the backplane

6. Touch the static-protective package that contains the new backplane to any unpainted surface on the

outside of the storage array. Then, take the new backplane out of the package.

Note: Carefully handle the backplane by its edges.

50

ThinkServer Storage SA120 User Guide and Hardware Maintenance Manual
