Backplane – Lenovo ThinkServer Storage SA120 User Manual
Page 30

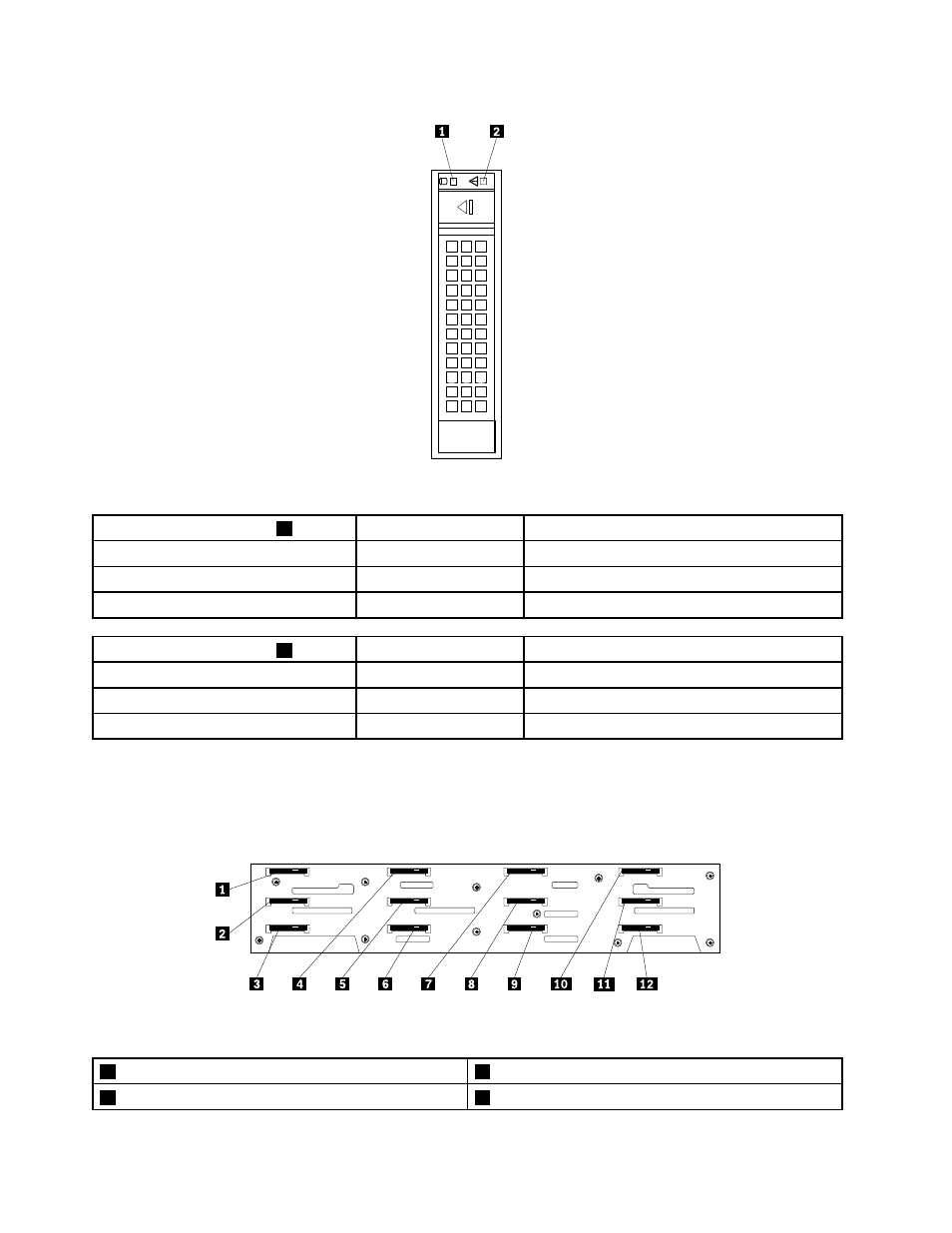

Figure 11. Status LEDs on 2.5-inch drives
Drive-status LED
1
Color
Description
On
Green
The drive is present but not in use.
Blinking
Green
The drive is active and data is being transferred.
Off
None
No drive is installed or present.
Drive-status LED
2
Color
Description
On
Amber
The drive has failed.
Blinking
Amber
The drive is identified.
Off
None
The drive is working normally.
Backplane
The following illustration shows the slots on the front of the backplane.
Figure 12. Slots on the front of the backplane
1
Slot 0 for a 3.5-inch drive
2
Slot 1 for a 3.5-inch drive
3
Slot 2 for a 3.5-inch drive
4
Slot 3 for a 3.5-inch drive
18
ThinkServer Storage SA120 User Guide and Hardware Maintenance Manual
