Owner’s Manual #513684 4 SU444I2 Model Machines
B. Remove the back panel and the junction box
cover located at the bottom of the machine.
C. Install permanent wiring according to local code.
D. Check the auger shaft rotation by pressing the
Main Power On/Off button and pressing the On/Off
Left or On/Off Right button. The Motor Calibration
screen will be displayed.
E. Move the cursor over the Left side and press the
SEL button then move the cursor over the Right
side and press the SEL button.
F. Auger shaft rotation is clockwise as viewed through
the clear front door.
G. Press the left arrow button to stop the augers
after checking the rotation.
NOTE
Press the left arrow button to exit the calibration
before the 5 minute timer expires. Motor calibration
will be completed in Section 2.6 and must be done
with sanitizer in the freezing cylinders.
2.5 CHECK BLENDER ROTATION
After connecting the electrical, check the blender on the
right side for proper rotation.
A. Place the Blender Power Off/On switch to the ON
position.
B. With the clear swing sheild in place, move the
spigot handle to the right.
WARNING
Hazardous Moving Parts
Blender shaft and agitator can grab and cause
injury. Do not operate blender without protective
shield or swing splash shield.
C. The blender should rotate clockwise looking from
the top of the blender.
D. If the rotation is counterclockwise, refer to the
wiring diagram located behind the header panel
and check the diode direction. Reverse the diode
polarity if needed.
2.6 MIX PUMP
A. MIX PUMP HOSE INSTALLATION
Follow the steps below to install the mix pump hose in
the cabinet part of the machine.
1. Turn the mix pump on by pressing the Pump On/
Off button on the touchpad.
2. Feed one end of the mix pump hose into the
entering or pickup hose side (left) of black cover
(Fig 2-2).
NOTE
Feed the tube into the clamp so the natural curve of
the tube is towards the outside of the black cover.
This prevents the hose from looping around the
black cover twice.
3. Gently push the hose into the black cover until it
begins to feed.

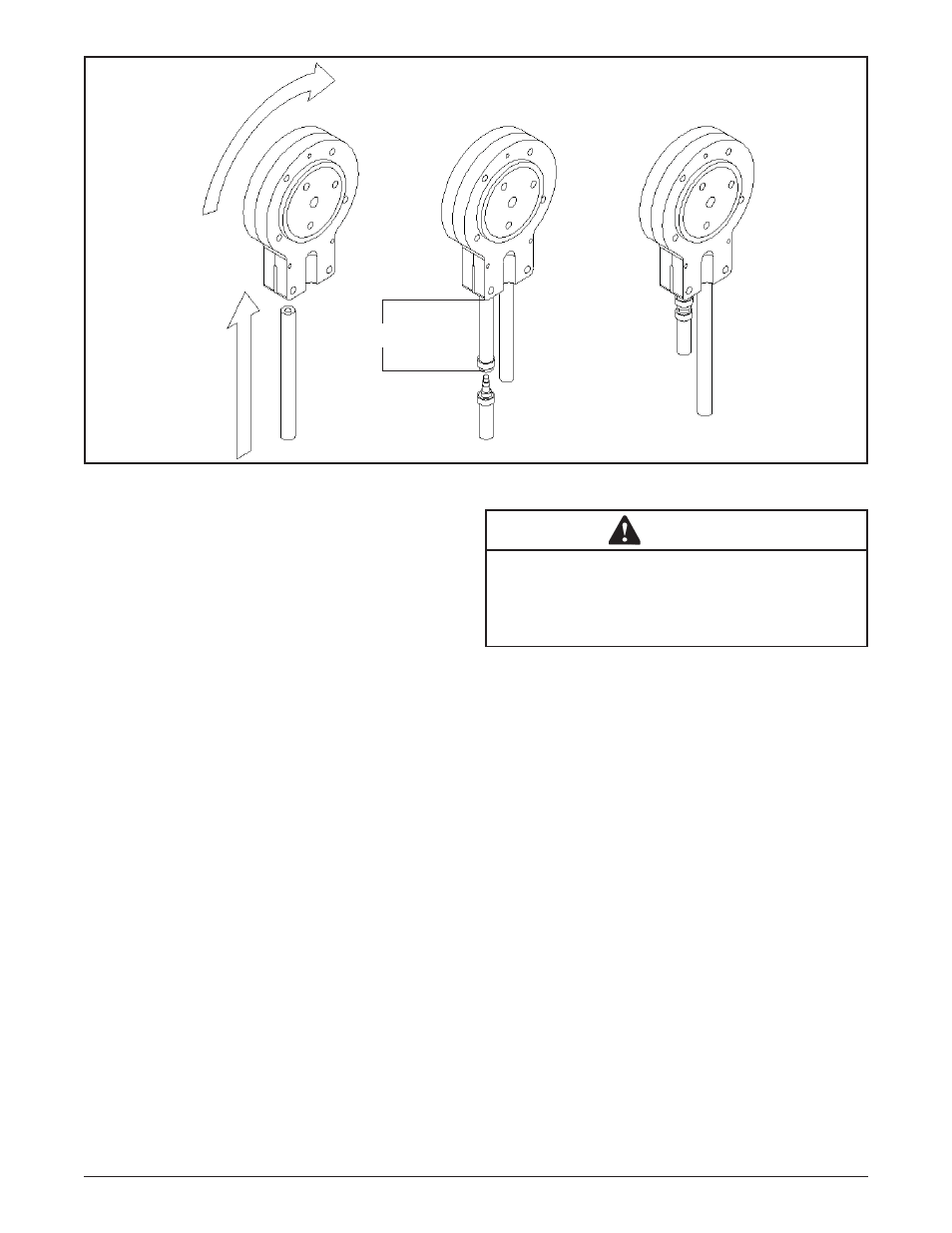

Figure 2-2 Mix Hose Installation
6” (15cm)
