Installation Instructions Page 9
PFW 6851

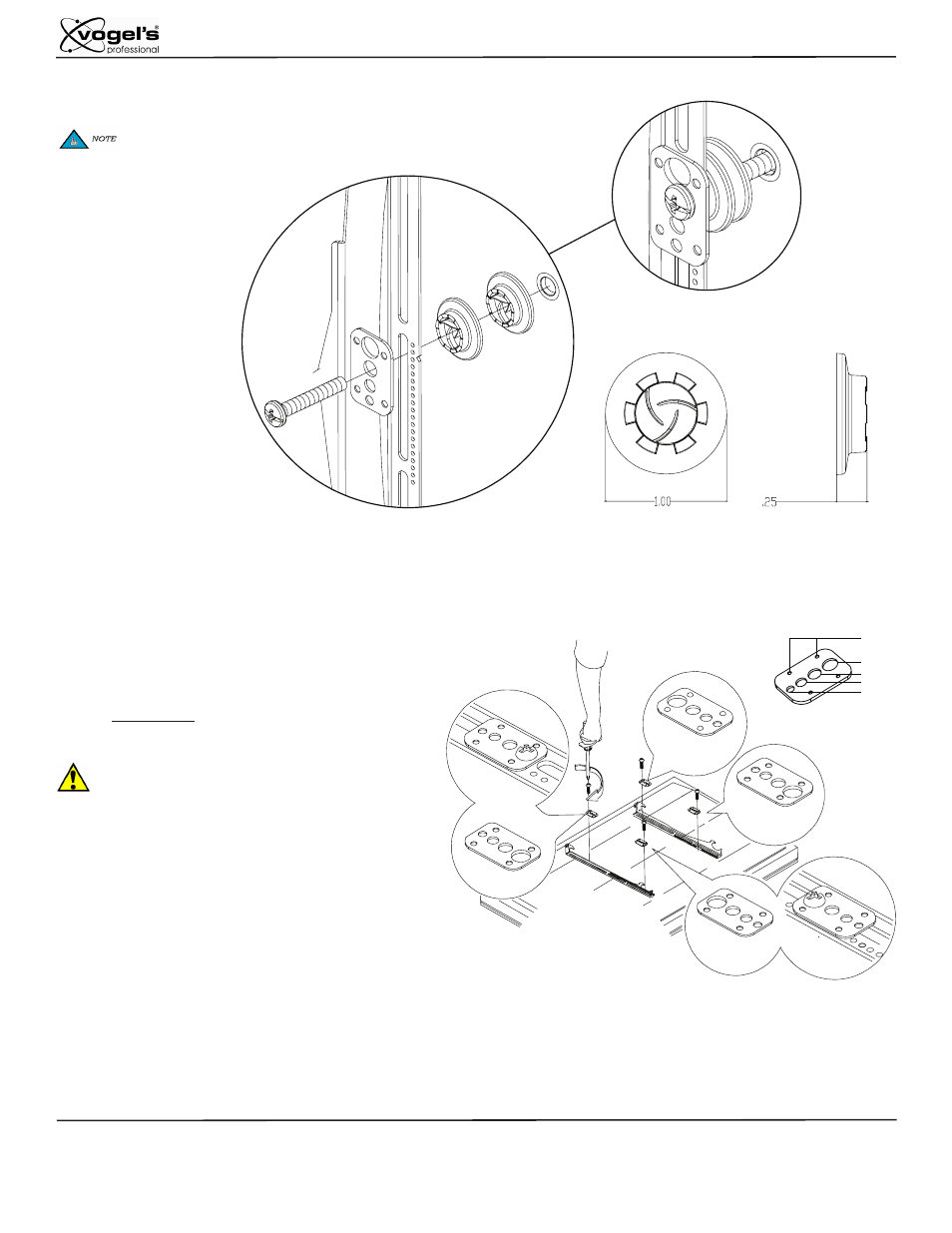

Universal Spacers Installation (optional)
The universal spacer may be stacked six (6) high, for a total stacking height of 1-1/2”. The universal spacers must be stacked in the
direction shown above. The universal spacers must be placed between the mounting bracket and the flat panel.
The universal spacer will fit M4, M5, M6 and M8 screws sizes.
If your flat panel has uneven mounting points, or recessed
mounting points, please use the provided universal spacers.
The Griplates™ have M4, M5, M6 and M8 hole patterns to
fit the hardware that your flat panel requires.
EXAMPLE: If your flat panel uses M8 screws,
use the M8 mounting points.
Griplate™ Installation
DIMPLES
FACING UP
DIMPLES
FACING DOWN
DIMPLES
FACING UP
DIMPLES
FACING DOWN
Pre-install the mounting screws, universal
spacers and Griplates™. Once mounted, push
down to eliminate movement from the bracket,
then tighten the rest of the hardware. Repeat
this process for the installation of the remaining
mounting bracket.
Dimples
M4
M5
M6
M8
