Installation Instructions Page 5
PFW 6851

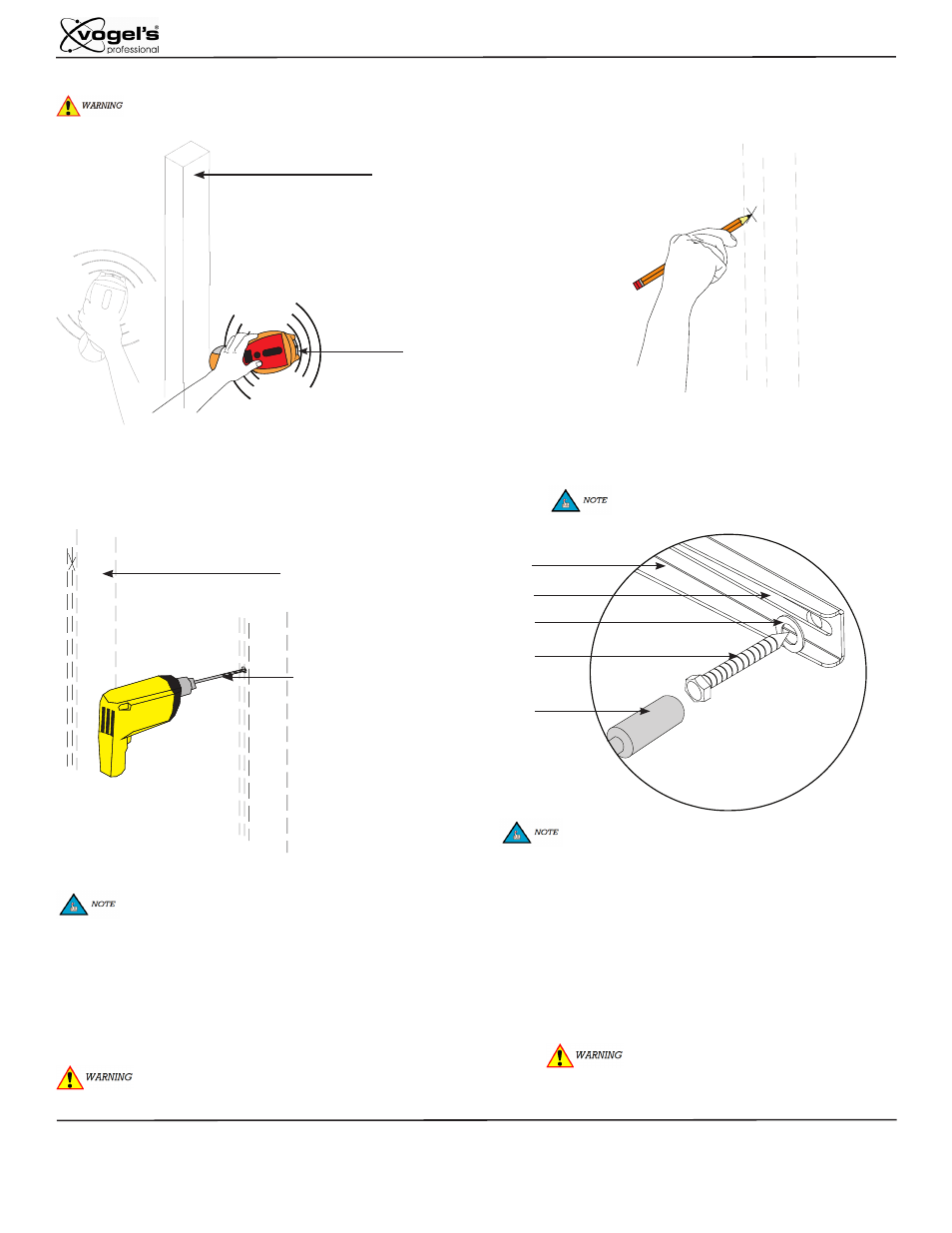

Wood Stud Installation
THE FOLLOWING STEPS MUST BE PERFORMED BY TWO PEOPLE.
Wall Stud
Electronic
Stud Finder
Step 1. Determine the desired viewing location. Use a
stud finder to locate two studs closest to the
viewing location.
Step 2. Once the studs have been located, use a pencil
to mark the center of each stud.
Step 3. Drill a pilot hole at the marked location using a
power drill and a 1/4” drill bit.
1/4” Drill
Bit
Wall Stud
Two people must perform the installation. One
person must hold the mount while the other person
levels the mount. The mount must remain in place
while the mounting hardware is tightened.
Only use 1/4” drill bit when drilling the
pilot holes.
A minimum of two (2) wall studs must be
used in the installation of this product.
Upper Mounting
Channel
Mounting Slot
Flat Washer
5/16” Lag Bolt
1/2” Socket
Wrench
Step 4. Level the mount.
Step 5. Align the mounting slot with the drilled hole.
Step 6. Insert and tighten one (1) 5/16” x 3” lag bolt and
flat washer. Tighten using a 1/2” socket
wrench. Do not completely tighten the lag bolt
at this time.
Do NOT over-tighten lag bolts when
attaching the mount to the wall. Improper
installation may result in personal injury or
damage to property.
When determining viewing height, the center
of the TV should be at eye level while sitting in
an upright position. When using the flat panel
as room decoration, raise it to the point where
the bottom of the screen is at eye level while
sitting and the top is eye level when standing.
