Installation Instructions Page 13
PFW 6851

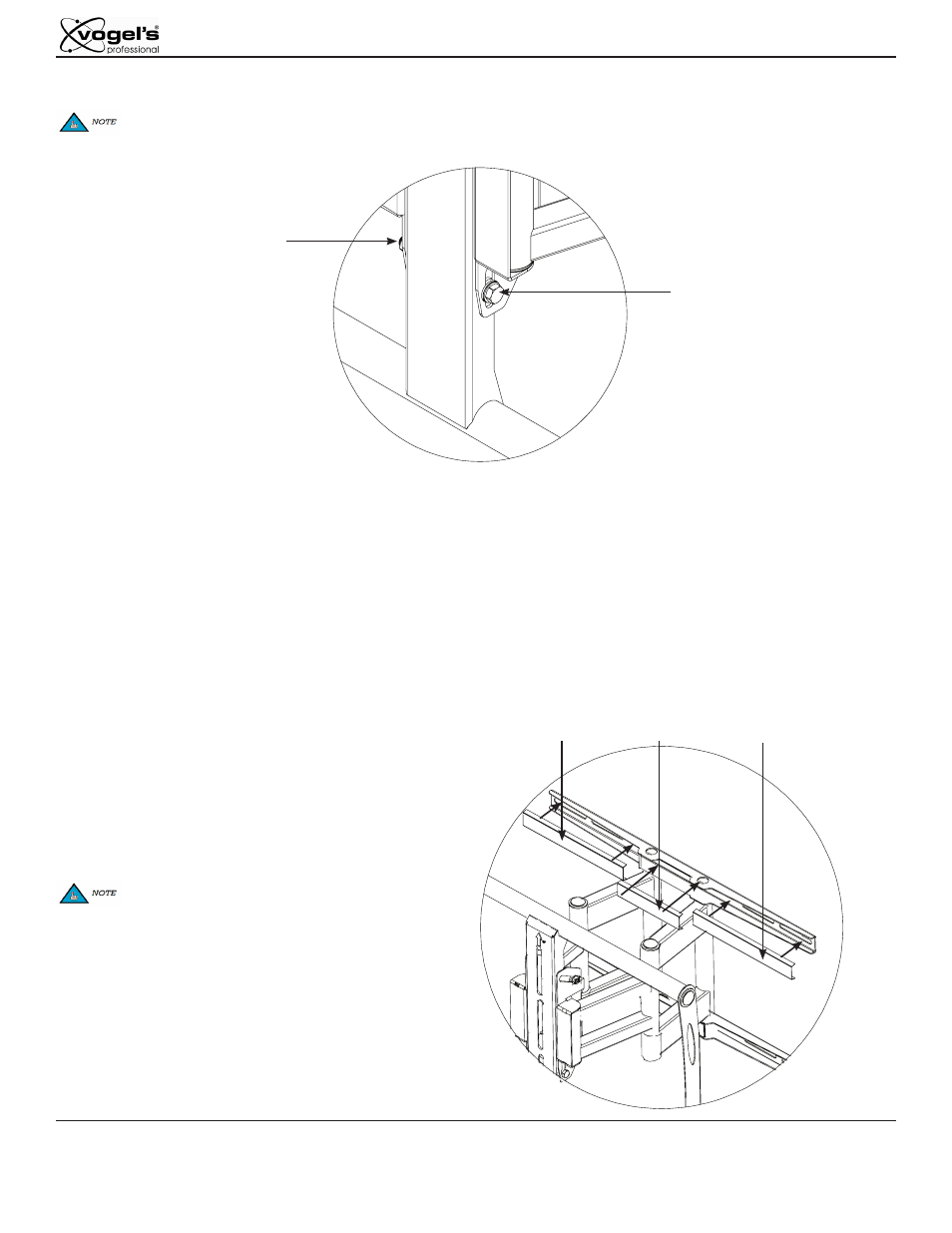

TO ADJUST THE TILT TENSION OF THE PFW 6851, LOOSEN THE TENSION BOLTS LOCATED ON THE
BOTTOM RIGHT AND LEFT SIDE OF THE MAIN ARM ASSEMBLY. RE-TIGHTEN THESE BOLTS TO ACHIEVE
YOUR DESIRED TENSION.
Adjusting the Flat Panel Tilt
Step 1. Place one hand at the center top edge of
the flat panel.
Step 2. Place the other hand on the center
bottom edge of the flat panel.
Step 3. Using the upper hand, gently pull the
top of the flat panel away from the wall
while the lower hand gently pushes the
bottom of the flat panel towards the
wall.
Step 1. Place one hand at the center top edge of
the flat panel.
Step 2. Place the other hand on the center
bottom edge of the flat panel.
Step 3. Using the upper hand, gently push the
top of the flat panel towards the wall
while the lower hand gently pulls the
bottom of the flat panel away from the
wall.
Adjusting the Flat Panel Down Adjusting the Flat Panel Up
Plastic Channel Cover Installation
Side Cover
(Long)
Center Cover
(Short)
Side Cover
(Long)
Step 1. Place the plastic channel covers over
the mounting plate (2 side covers and 1
center cover).
Step 2. Gently push each cover into place,
covering the mounting slots of the
mounting plate.
Tension
Bolt
Tension
Bolt
Repeat steps 1 and 2 for the installation
of the lower plastic channel covers.
