PFW6852
Installation Instructions Visit the Vogel’s website at http://www.vogels.com Page 11
Flat Panel
Griplate ™ Washer
Nylon Spacer
Mounting Bracket
Mount Point
Mounting Screw

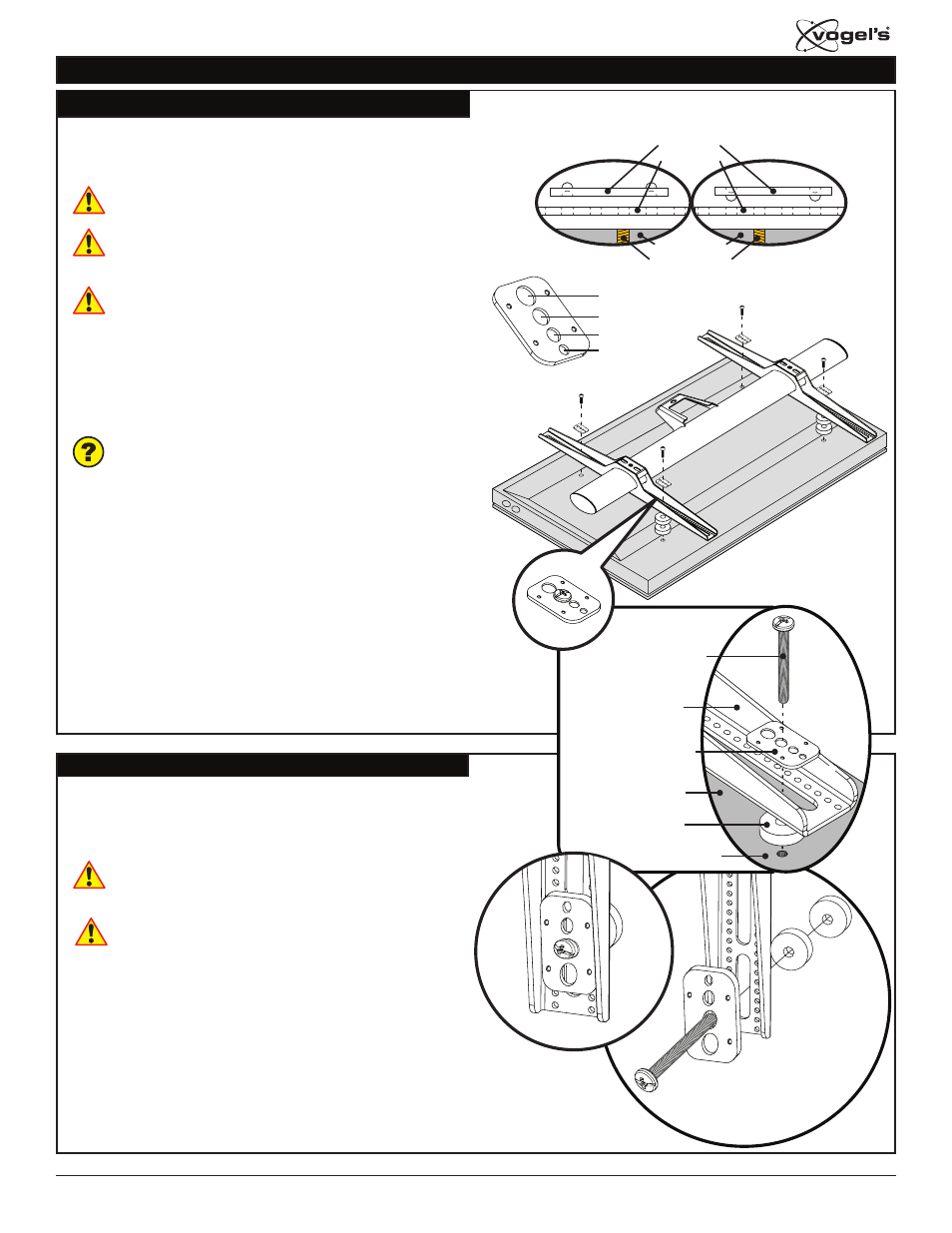

Griplate™ Washer Installation
Vogel’s Griplate™ washers are designed to
accommodate the various M4, M5, M6 and M8 hole sizes
required by flat panels.
Do not place excessive pressure on the back of the
flat panel, as this may damage your flat panel.
The Griplate™ washer must be installed between
the head of the mounting screw and the mounting
bracket as shown.
The dimples on the Griplate™ washers must be
oriented as follows:
●
The Griplate™ washers installed at the top
of the flat panel must have the points of the
dimples facing away from the flat panel.
●
The Griplate™ washers installed at the bottom
of the flat panel must have the points of the
dimples facing towards the flat panel.
Does your flat panel have:
●
Recessed mount points?
●
Uneven mount points?
●
A curved back?
●
Any obstruction near the mount point?
If Yes, you must install nylon spacers. Proceed to the
“Nylon Spacer Installation” section.
If No, skip to the “Mounting Bracket Installation”
section.
Nylon Spacer Installation
Vogel’s’ nylon spacers allow you to attach the mounting
bracket to flat panels which have recessed or uneven
mount points. Each nylon spacer will add distance
between the mounting bracket and your flat panel.
The nylon spacers must only be installed between
the mounting bracket and your flat panel.
When using spacers, there must be
at least 10mm of exposed screw thread.
The nylon spacers will fit M4, M5, M6 and M8 screw
sizes.
Proceed to the
“Mounting Bracket Installation” section.
M8
M6
M5
M4
Griplate
™
Flat Panel
Mount Point
Bracket
Top Griplate
™
Dimple Orientation
Bottom Griplate
™
Dimple Orientation
Mounting Hardware Selection (cont’d)
