CHAPTER 2 OPERATING INSTRUCTIONS
2.1 THE CONTROL PANEL
The display screen of the Controller (Fig 2.1) shows digital and text information about the
current operation of the autopilot. There are four keys which control the operation and the
functions of these keys are described below.

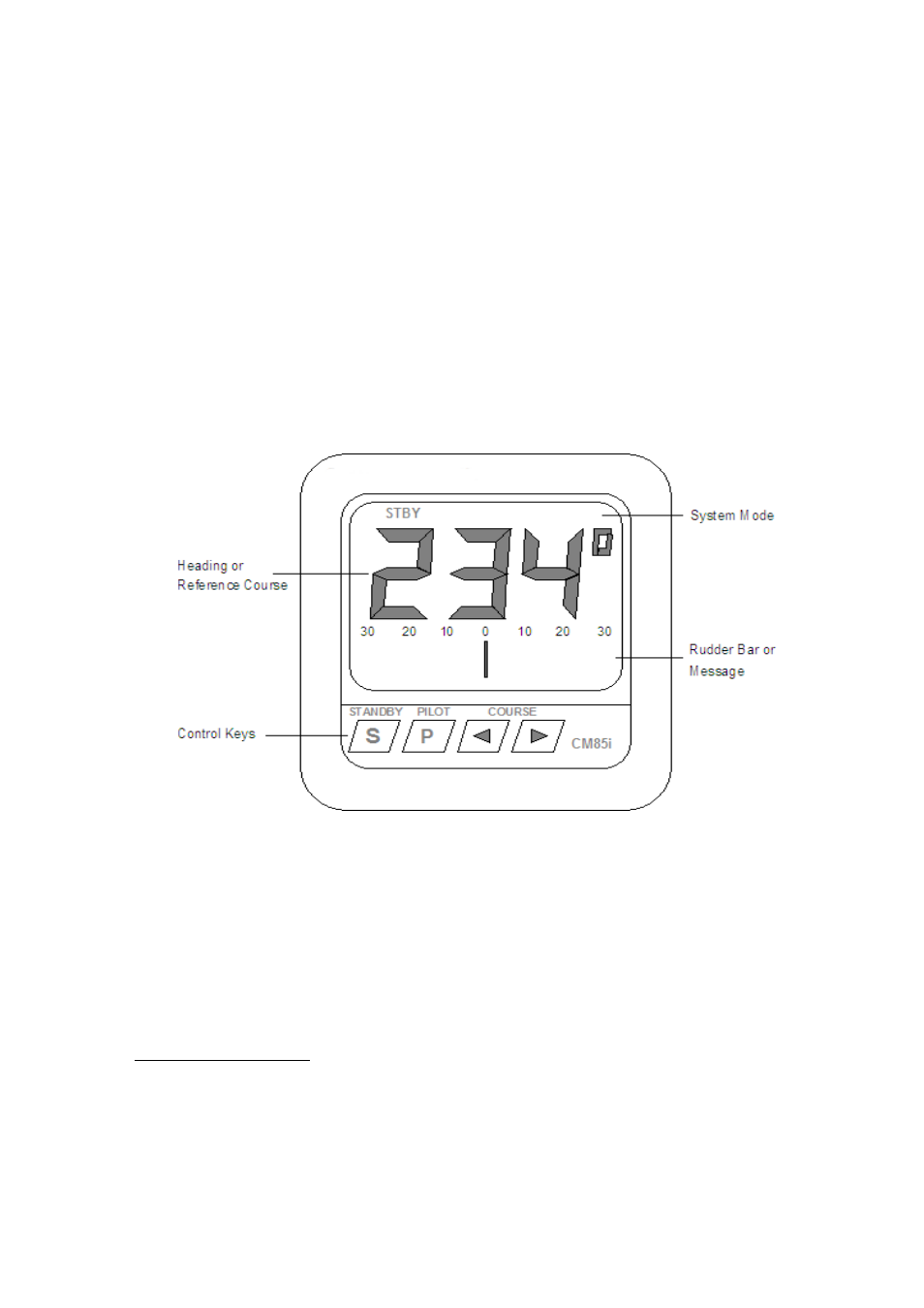

Figure 2.1 The AP01 Controller panel.
2.2 GETTING STARTED
Before operating the autopilot for the first time, it must be installed and adjusted as
described in Chapter 3. (If optional attachments and interfaces are being used, these can
be fitted after initial trials of the system.)
