1.2 THE SW AP01 SYSTEM
The core of the SW AP01 system is built by connecting a Controller to a Junction Box.
There is a choice between two versions of the Junction Box. A comparison of their features
between is shown in Fig 1.4 below.

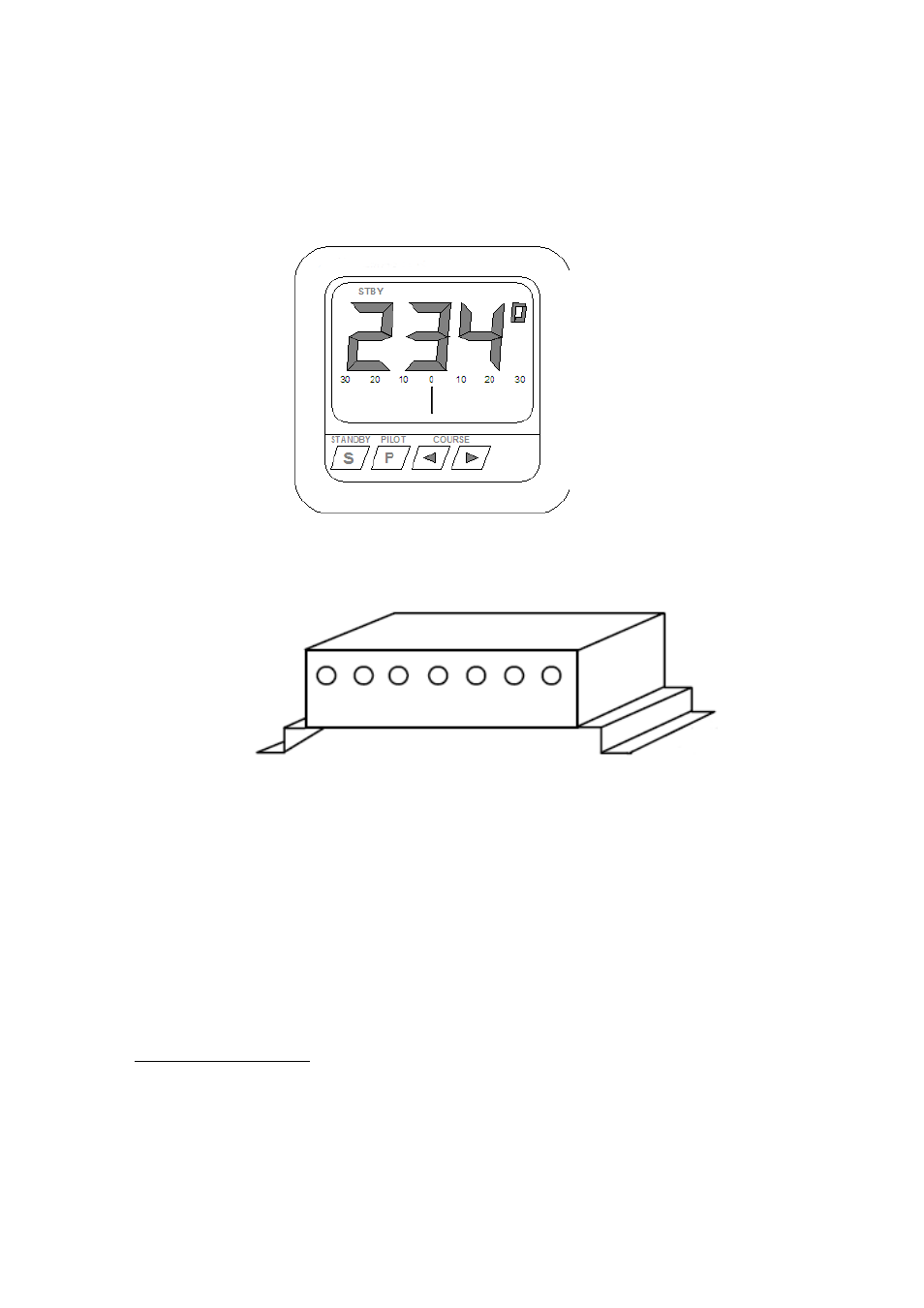

SW AP01 Control Head
S81.01 Junction Box
11
•
For 12 volt systems
•
Drive current: 20A
•
Single Remote Port
•
Fluxgate or slave or digital heading
•
Footprint 204 x 136 mm
