microphones for wireless freedom during open mic
meetings, Q&A sessions, classrooms, etc.

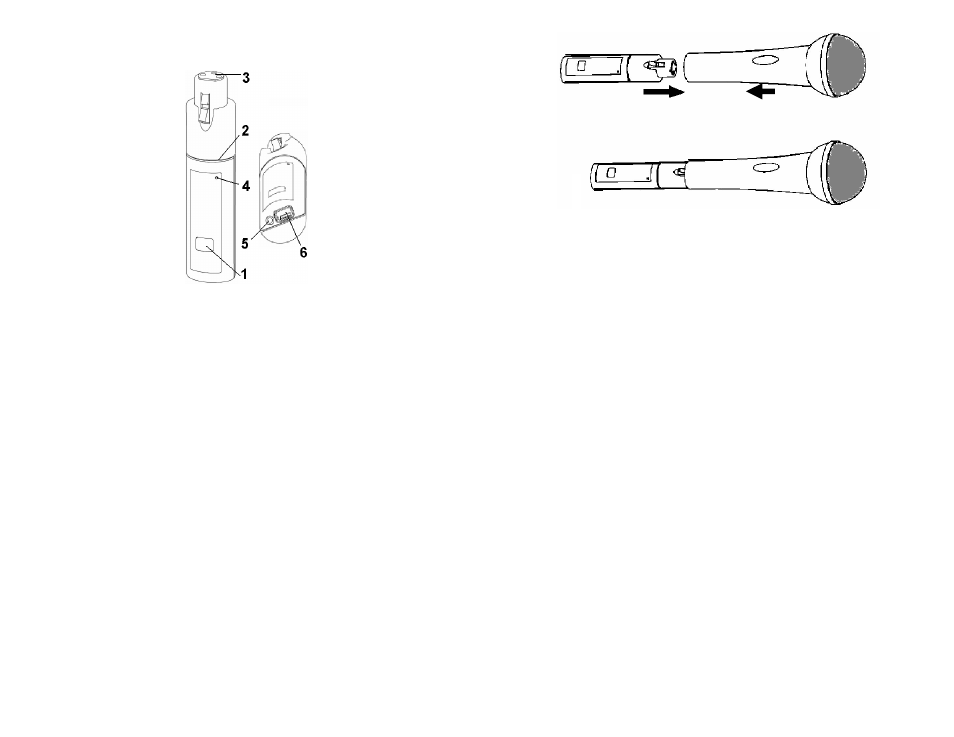

7. 1. Mute button — press to mute, un-mute and pair
microphone.
8. 2. Rubber collar — durable and impact/strain protection.
9. 3. XLR Female connector — balanced audio for dynamic
microphones.
10. 4. LED display — visual status for mute, un-mute,
and pairing.
11. 5. Audio Out port — accepts the 2.5mm plug for
the earpiece.
6. Power/Charging Port — docks to all Solo Charger
Bases.
To use the Revolabs Solo™ Universal Wireless
Adapter:
5. Remove the Microphone Adapter from the Charger
Base.
The adapter turns on and mutes automatically
when removed from Charger Base (flashing RED
LED). The XLR Microphone Adapter is attached to
a standard dynamic microphone to convert it from
a wired microphone to a wireless microphone (see
following figure).
17
The Adapter does not provide phantom power or
bias current so it cannot be used with condenser
or electret microphones.
6. With the microphone attached, un-mute the
Adapter by pressing and releasing the Mute button
(confirm by viewing flashing GREEN LED).
Note: If the microphone has an on-board mute
switch, this switch must also be un-muted prior to
use.
7. To turn the Adapter off, return the microphone
unit to the Charger Base or press and hold the
Mute button for ~10 seconds until the LED turns
solid RED and release button.
Important : Always remove the microphone from
the Adapter by pressing the latch switch and
separating the parts before returning the Adapter
to the Charger Base.
If the microphone is moved out of range of the
Charger Base (~65 feet or 20m) the connection will be
dropped (LED flashes all colors) and the microphone
will mute.
After 15 seconds the microphone will beep 5 times,
and will continue beeping every 30 seconds to remind
the user to return the microphone to the conference
room. If the microphone is moved back into range
within 15 minutes the connection will automatically
