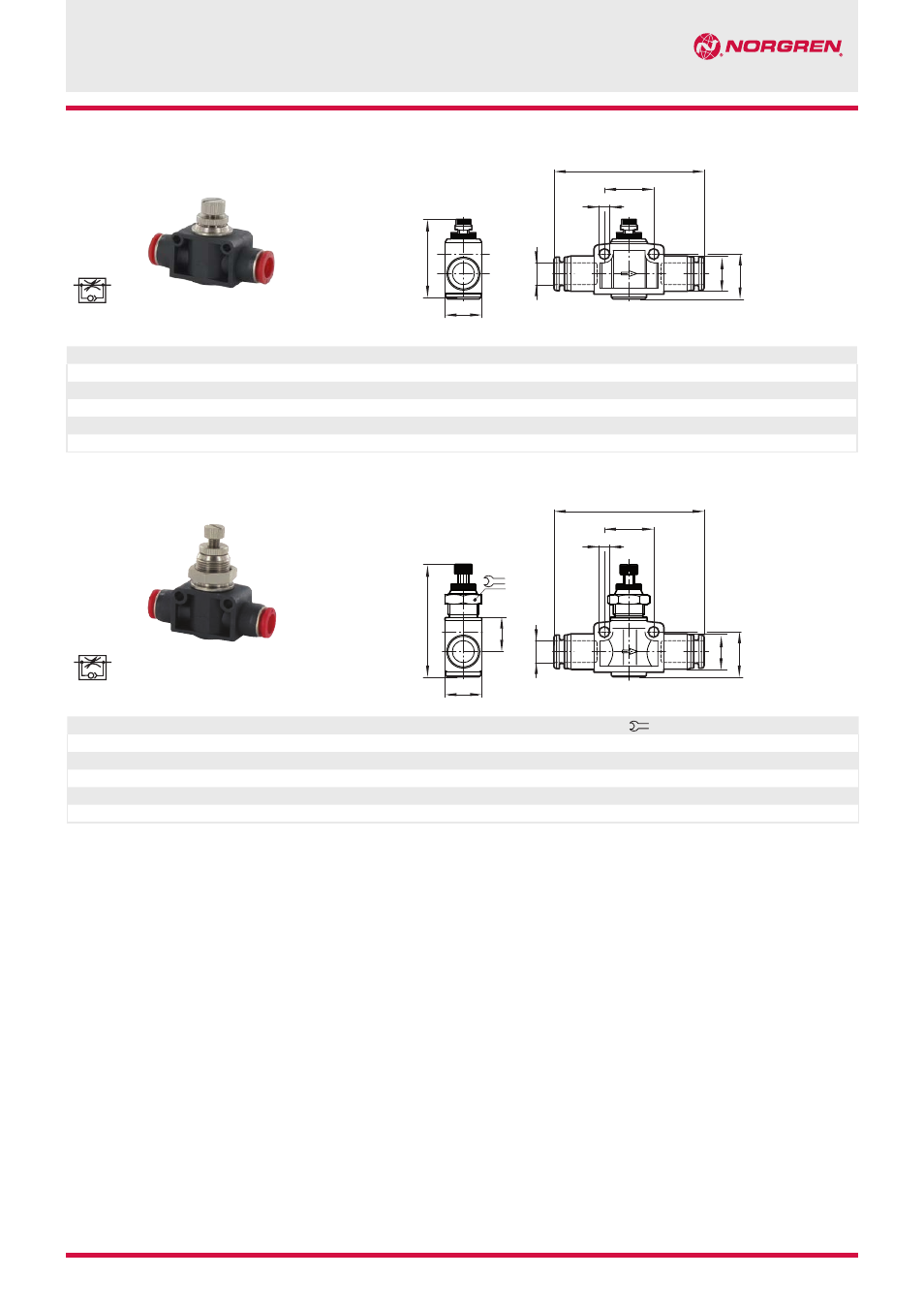

Pneufit ® C
In-line flow control
C00GE
In-line and panel mounting flow control
C00GP
1 2
1 2
Ø A B C > C1 < C1 D E Ø K N Model
4 12 45 30 33 3,3 15 11 13,5 C00GE0400
6 16 50 35 39,5 4,4 20,5 13 17,5 C00GE0600
8 19 55,5 37,5 42 4,4 23 15 20 C00GE0800
10 23 61 44 49 4,4 28 17,5 23 C00GE1000
12 26,5 70 47,5 53,5 4,4 32 20,5 25,5 C00GE1200
Control flow see page 4
Ø A B C > C1 < C1 C2 D E Ø K N Panel hole Panel thickness Model
4 12 42 35,5 38 5,5 3,2 15,5 11 13,5 12 11 5 C00GP0400
6 16 49,5 43 48,5 8 4,3 20,5 13 17,5 17 15 6 C00GP0600
8 19 56,5 47,5 53 8,5 4,3 23 15 20 19 17 6 C00GP0800
10 23 63 53,5 61,5 10,5 4,3 27,5 17,5 23 22 17 7 C00GP1000
12 26,5 73,5 57,5 64,5 12 4,4 32,5 20,5 25,5 24 21 7 C00GP1200
Control flow see page 4
C
E
D
1 2
C2
N øK øA
C1
B
C
E
D
1 2
øA
C 1
B
N шK
