Typical Performance Characteristics
B64G
Our policy is one of continuous research and development.
We reserve the right to amend, without notice, the specifications given in this document.

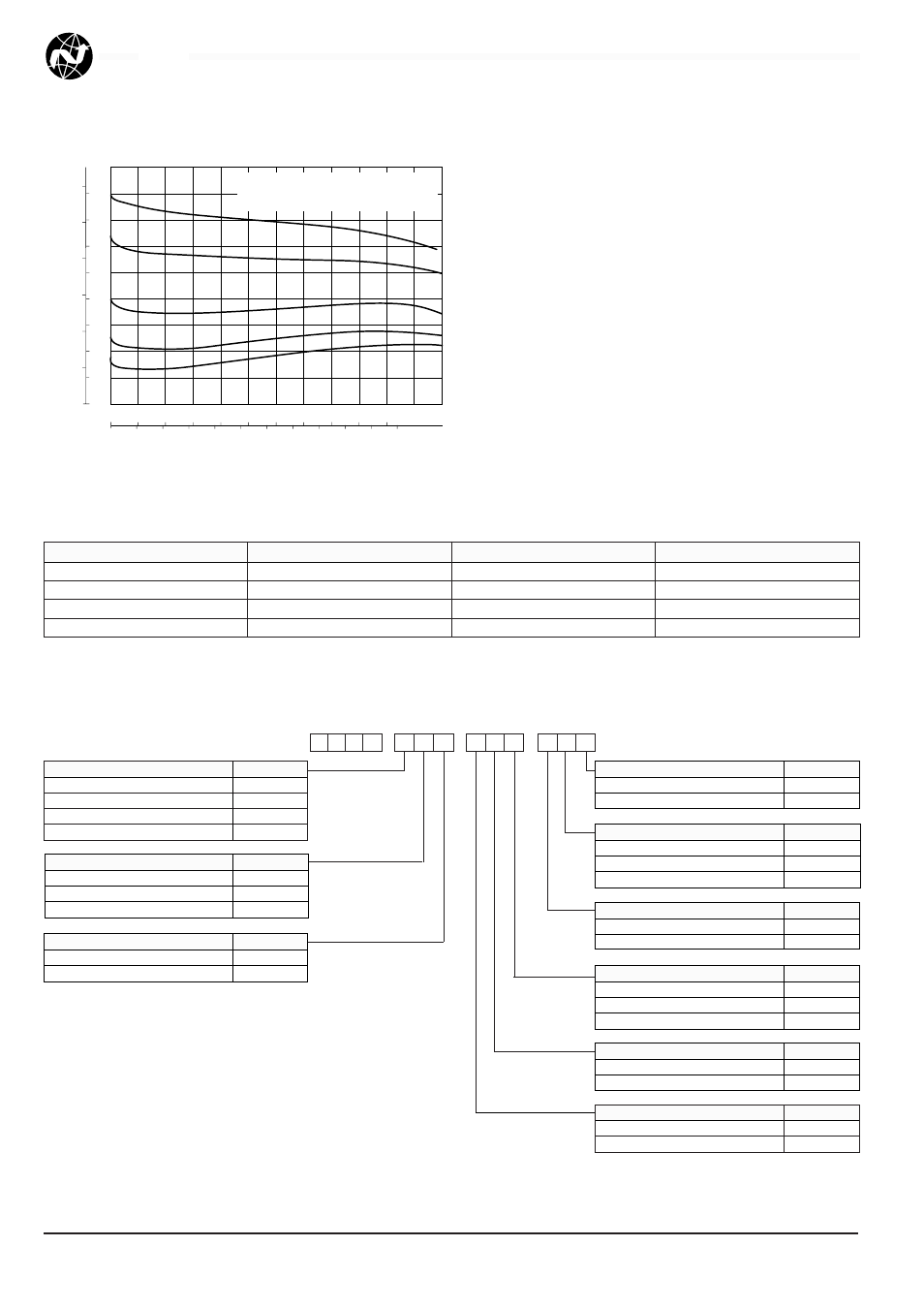

FLOW CHARACTERISTICS
0 20 40 60 80 100 dm 3 /s
AIR FLOW
0 40 80 120 160 200 240 scfm
8
6
4
2
0
OUTLET PRESSURE
bar g
100
80
60
40
20
0
psig PORT SIZE: 1/2 " 40 µ m ELEMENT
INLET PRESSURE: 10 bar (150 psig)
RANGE: 0,3 to 10 bar (5 to 150 psig)
Ordering Information. Models listed include ISO G threads, knob adjustment, automatic drain, metal bowl, 40 µm element, relieving
diaphragm and 0,3 to 10 bar (5 to 150 psig) outlet pressure adjustment range* without gauge.
† Typical flow with 10 bar (150 psig) inlet pressure, 6,3 bar (90 psig) set pressure and a 1 bar (15 psig) droop from set.
Port Size Model Flow † dm 3 /s (scfm) Weight kg (lb)
G1/4 B64G-2GK-AD3-RMN 30 (64) 1,71 (3.80)
G3/8 B64G-3GK-AD3-RMN 76 (161) 1,69 (3.76)
G1/2 B64G-4GK-AD3-RMN 106 (225) 1,66 (3.69)
G3/4 B64G-6GK-AD3-RMN N.A. 2,02 (4.49)
Alternative Models
B 6 4 - G ★ ★ - ★ ★ ★ ★
Port Size Substitute
1/4 " 2
3/8 " 3
1/2 " 4
3/4 " 6
Threads Substitute
PTF A
ISO Rc taper B
ISO G parallel G Diaphragm Substitute
Relieving R
Non relieving N
Element Substitute
5 µm 1
25 µm 2
40 µm 3
Adjustment Substitute
Knob K
T-bar T
Bowl Substitute
Metal with liquid level indicator D
Guarded Transparent P
- ★ ★ ★
Drain Substitute
1/4 turn manual M
Automatic A
Gauge Substitute
With G
Without N
Outlet Pressure Adjustment Range* Substitute
0,3 to 4 bar (5 to 60 psig) F
0,3 to 10 bar (5 to 150 psig) M
0,7 to 17 bar (10 to 250 psig) S**
* Outlet pressure can be adjusted to
pressures in excess of, and less than,
those specified. Do not use these units to
control pressures outside of the specified
ranges.
** Units with 17 bar (250 psig) adjustment
range are available only with the T-bar
adjustment; therefore substitute
T at the 7th
digit and S at the 12th position.
