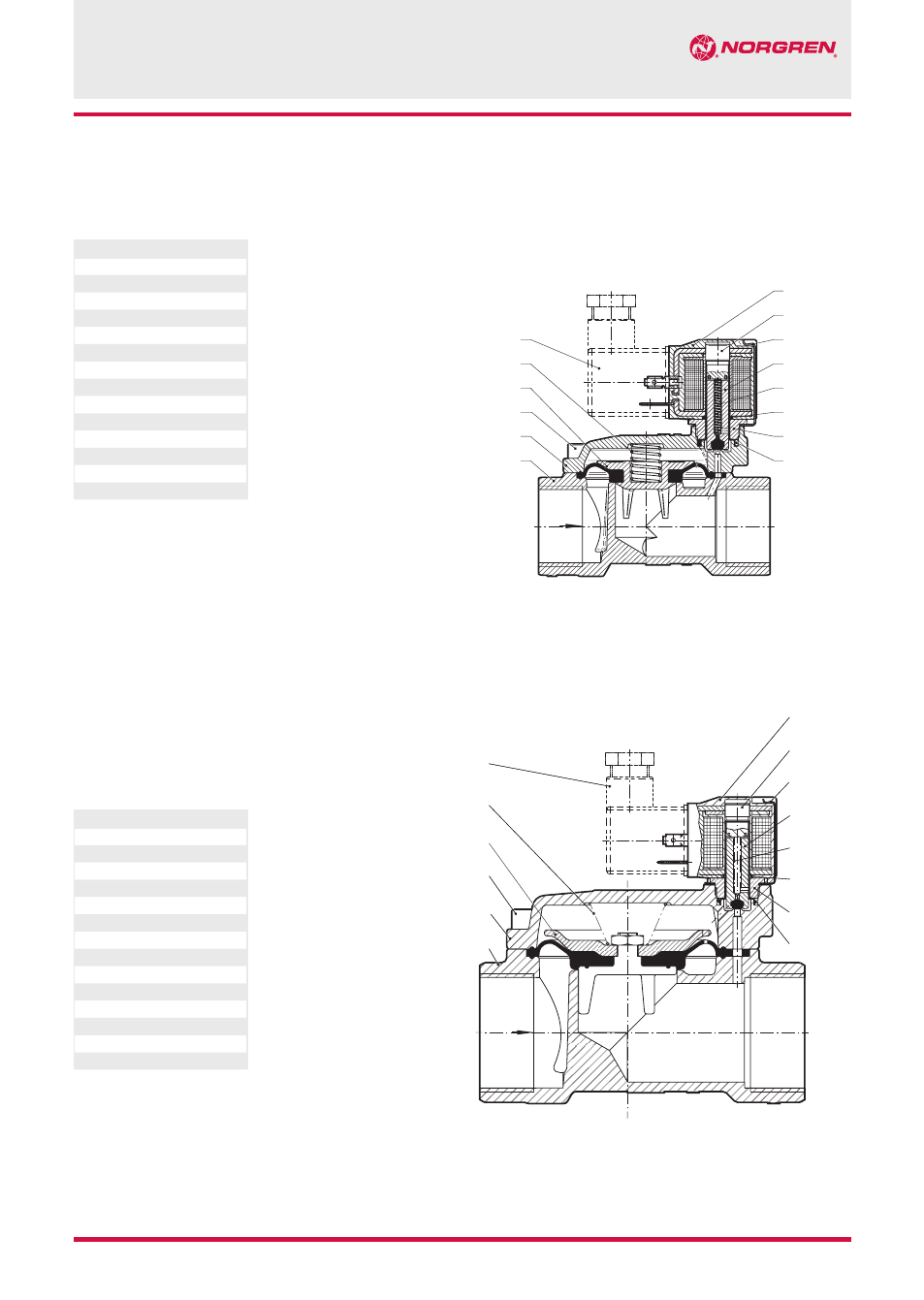

Section View
G1/4 ... 1
1/4 ... 1 NPT
No. Description
101 Valve body
102 Valve cover
*103 Diaphragm
104 Allen head screw
*105 Pressure spring
400 Solenoid
701 Core tube
*702 O-ring
703 Screw piece
*704 Pressure spring
*705 Plunger
706 Spring clip
*707 O-ring
1400 Socket (included)
G1 1/4 ... 2
1 1/4 ... 2 NPT
* These individual parts form a complete wearing unit.
When ordering spare parts please state Model No. and Series No.
No. Description
101 Valve body
102 Valve cover
*103 Diaphragm
104 Allen head screw
*105 Pressure spring
400 Solenoid
701 Core tube
*702 O-ring
703 Screw piece
*704 Pressure spring
*705 Plunger
706 Spring clip
*707 O-ring
1400 Socket (included)
1400
*105
*103
102
101
104
400
701
706
*704
*707
703
*705
*702
P A
*702
703
*707
*704
*705
706
701
400
101
102
104
*103
*105
1400
P A
