Norgren V41 Mini ISO Star Valves - Manual (Page 5)

V
AL
VES
Norgren.com/usa – 303.794.2611 – [email protected]
VAL- 78

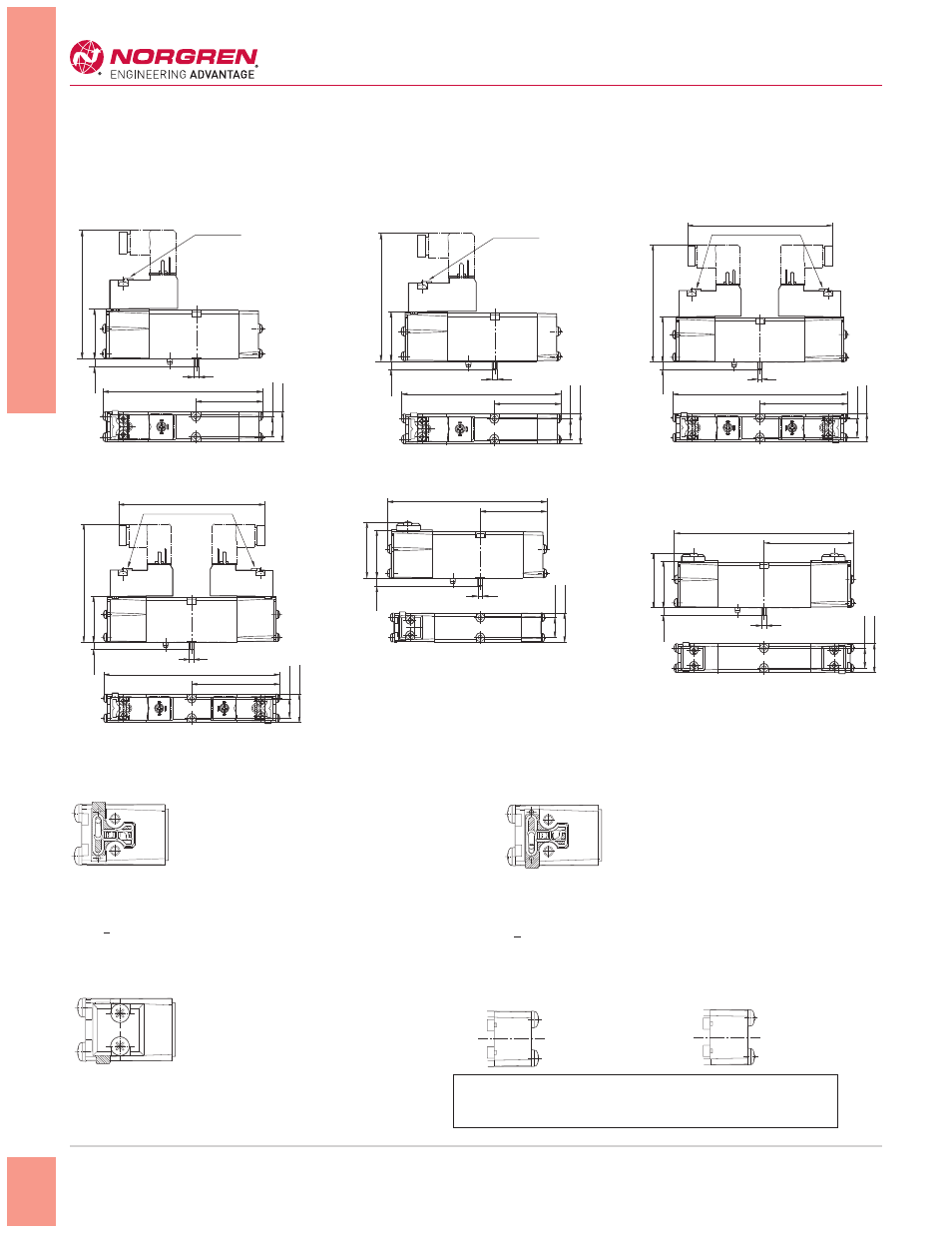

V4055*3D-C3*** and V4155*3D-C3*** Models
5/2 Single Solenoid Pilot Valve
Air Spring Return
INT
EXT
1.63 (41.3)
3.89 (98.9)
M3
0.73 (18.6)
3.04 (77.2)
1.18 (29.9)
0.20 (5)
0.49 (12.5)
Manual Override
INT
EXT
1.63 (41.3)
3.89 (98.9)
M3
0.73 (18.6)
3.04 (77.2)
1.18 (29.9)
0.20 (5)
0.49 (12.5)
Manual Override
V4055*6D-C3*** and V4155*7D-C3*** Models
5/2 Single Solenoid Pilot Valve
Mechanical (& Air) Spring Return
V4055**D-C3*** and
V4155**D-C3*** Models
5/2 Double Solenoid Pilot Valve
INT
EXT
INT
EXT
4.53 (115.2)
0.73 (18.6) 0.49 (12.5)
2.27 (57.6)
Manual Override
3.76 (95.6)
3.04 (77.2)
1.18 (29.9)
0.20 (5)
M3
INT
EXT
INT
EXT
4.53 (115.2)
0.73 (18.6) 0.49 (12.5)
2.27 (57.6)
Manual Override
3.76 (95.6)
3.04 (77.2)
1.18 (29.9)
0.20 (5)
M3
V405***D-C3*** and
V415***D-C3*** Models
2x3/2 + 5/3 Double Solenoid Pilot Valve V415537A-X0090
5/2 Single Air Pilot Valve
0.49 (12.5) 0.73 (18.6) INT
EXT
1.63 (41.3)
3.89 (98.9)
1.37 (34.8)
1.18 (29.9)
0.20 (5)
M3
V405537A-X0090 5/2 Single Air Pilot Valve
V405*33A-X00*0 and
V415*33A-X00*0 Models
2x3/2, 5/2 + 5/3 Double Air Pilot Valve
0.73 (18.6)
1.37 (34.8)
4.53 (115.2)
2.27 (57.6)
M3
1.18 (29.9)
0.20 (5) 0.49 (12.5) INT
EXT
INT
EXT
Conversion from internal to external pilot supply / Collected pilot exhaust
The lowered and captive gasket between valve body and pilot valve defines and indicates pilot air supply as well as pilot exhaust function of the
valve.
INT
EXT
INT
EXT
INT
EXT
Internal pilot supply,
pilot exhaust air collected and exhausted via port 14.
All solenoid pilot valves with code 1 at position 6 in the part number (e.g
V41551...) have the gasket mounted in this position on delivery.
External pilot supply from port 14 only, pilot exhaust air not collected
but bleed through valve body.
All solenoid pilot valves with code 2 at position 6 in the part number (e.g
V41552...) have the gasket mounted in this position on delivery.
blue gasket blue gasket
Note: Dismounting pilot valve gives access to gasket. Conversion from internal to external pilot supply (or vice versa) by turning the gasket. Caution: In this case part number and symbol on label shows
different function. Therefore check gasket position when mounting valve.
Note: Additional to above described work, gasket between end cap and valve body must
be turned too at valves with this function.
For detailed instructions see Installation- and Maintenance Sheet.
Air pilot actuated valves
External pilot supply.
blue gasket
Drawing includes
cover plate.
Drawing shows no
pilot valve.
Solenoid pilot actuated valves
Air pilot actuated valves 5/2 Solenoid pilot actuated valves with air spring return
Drawing shows end cap side 12.
INT
EXT
INT
EXT
V40/V41 Mini ISO Star Valves
2x3/2, 5/2 and 5/3, Solenoid and Pilot Actuated ISO 15407-1 / VDMA 24 563 Size 18 mm
All Dimensions in Inches (mm)
