Tunnion mount (TMF, TMR, TMB)
Threaded mounting holes
(THF, THC, THB) 3/4" bore and larger
Threaded mounting holes
(THF, THC, THB) 9/16" bore only
Screw clearance holes
(SCF, SCR, SCB)
Pivot mount (PTM)
Nose mount (NMT)

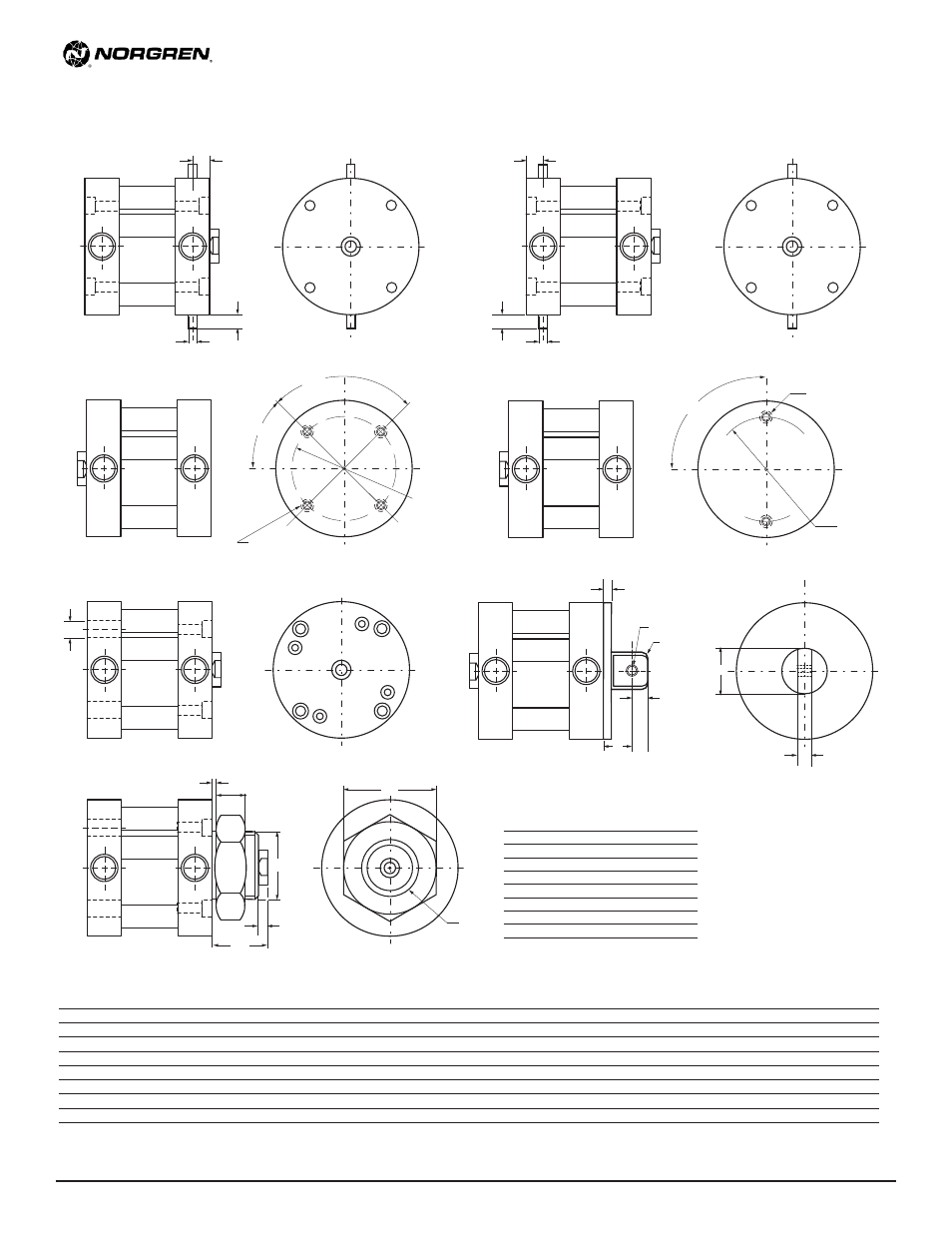

Mounting Dimensions (in)
R thread
(4) places
C
bolt circle
45°*
90°
4-40
(2) places
0.88
bolt circle
90°
* 43° for
3/4 bore only
P
N
M
P
N
M
U
T
W
Q dia. for
pivot pin
Z radius
Y
S
X
AB
AD
AC
0.13
AF
AA
AE
Nose Mount
Maximum Torque Recommendation
Bore
Code
Maximum Torque(ft-lb.)
9/16"
(056)
12
3/4"
(075)
28
1-1/16"
(106)
100
1-1/2"
(150)
120
2"
(200)
130
2-1/2"
(250)
130
3"
(300)
130
4"
(400)
150
Bore
Code
AA
AB
AC
AD
AE
AF
C
M
N
P
Q
R
S
T
U
W
X
Y
Z
9/16"
(056)
0.06
0.75 Hex
0.38
1/2-20 UNF-2A
0.50
0.31
0.88
N/A
N/A
N/A
0.19
#4-40 UNC
0.38
0.19
0.25
0.75
0.17
0.63 0.19
3/4"
(075)
0.06
0.75 Hex
0.38
5/8-18 UNF-2A
0.62
0.25
1.22
0.31
0.12
0.17
0.19
#6-32 UNC
0.38
0.19
0.25
0.75
0.23
0.75 0.19
1-1/16" (106)
0.13
1.50 Hex
0.75
1-14 UNS-2A
1.00
0.55
1.69
0.50
0.25
0.25
0.19
#6-32 UNC
0.38
0.25
0.25
0.81
0.25
0.75 0.19
1-1/2"
(150)
0.13
1.88 Hex
0.75
1-1/4-12 UNF-2A
1.25
0.52
2.19
0.50
0.25
0.25
0.38
#10-24 UNC 0.75
0.25
0.44
1.19
0.34
1.38 0.38
2"
(200)
0.19
1.88 Hex
0.88
1-3/8-12 UNF-2A
1.38
0.52
2.69
0.50
0.25
0.25
0.38
#10-24 UNC 0.75
0.31
0.44
1.25
0.34
1.38 0.38
2-1/2"
(250)
0.25
1.88 Hex
1.00
1-3/8-12 UNF-2A
1.38
0.52
3.25
0.63
0.31
0.33
0.38
1/4-20 UNC 0.75
0.38
0.44
1.31
0.41
1.38 0.38
3"
(300)
0.25
1.88 Hex
1.00
1-3/8-12 UNF-2A
1.38
0.52
3.78
0.63
0.31
0.33
0.63
1/4-20 UNC 1.00
0.38
0.56
1.69
0.41
1.88 0.38
4"
(400)
0.19
2.62 Hex
1.12
1-3/4-12 UN-2A
1.75
0.88
4.94
0.75
0.38
0.42
0.63
5/16-18 UNC 1.00
0.44
0.56
1.75
0.50
1.88 0.38
Dimensions in inches
