MSI Fuzzy RS690E User Manual
Page 28
2-11
Hardware Setup

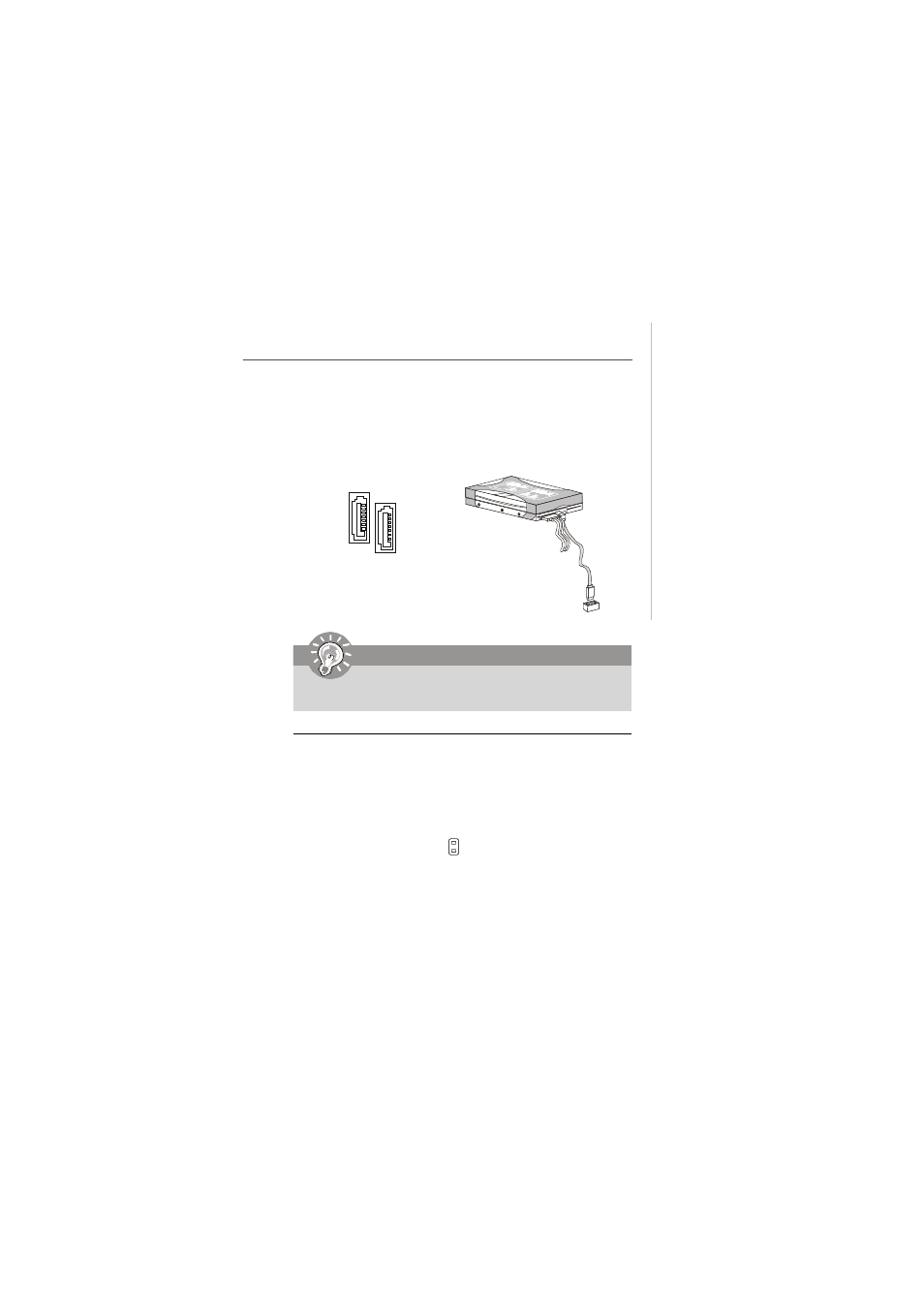

Serial ATA Connectors: SATA1, SATA2
SATA1~SATA2 are high-speed SATA interface ports and support SATA data rates of
300MB/s. Each SATA connector can connect to 1 hard disk device and is fully compliant
with Serial ATA 2.0 specifications.
Important
Please do not fold the Serial ATA cable into 90-degree angle. Otherwise,
data loss may occur during transmission.
SATA1
SATA2
Chassis Intrusion Connector: JCASE1
This connector connects to the chassis intrusion switch cable. If the chassis is
opened, the chassis intrusion mechanism will be activated. The system will record
this status and show a warning message on the screen. To clear the warning, you
must enter the BIOS utility and clear the record.
JCASE1
2
GND
CINTRU
1
