2-8
MS-9804 Mainboard
Link Indicator Activity Indicator
Le ft LED Right LED
Active LED 100M/1000M Speed LED
LED Color Yellow Green/Orange
10M Cable Plug-in No Transmission OFF OFF
Transition Yellow(Blinking) OFF
100M Cable Plug-in No Transmission OFF Green(Lighting)
Transition Yellow(Blinking) Green(Lighting)
1000M Cable Plug-in No Transmission OFF Orange(Lighting)
Transition Yellow(Blinking) Orange(Lighting)
In S3/S4/S5 Standby State OFF OFF

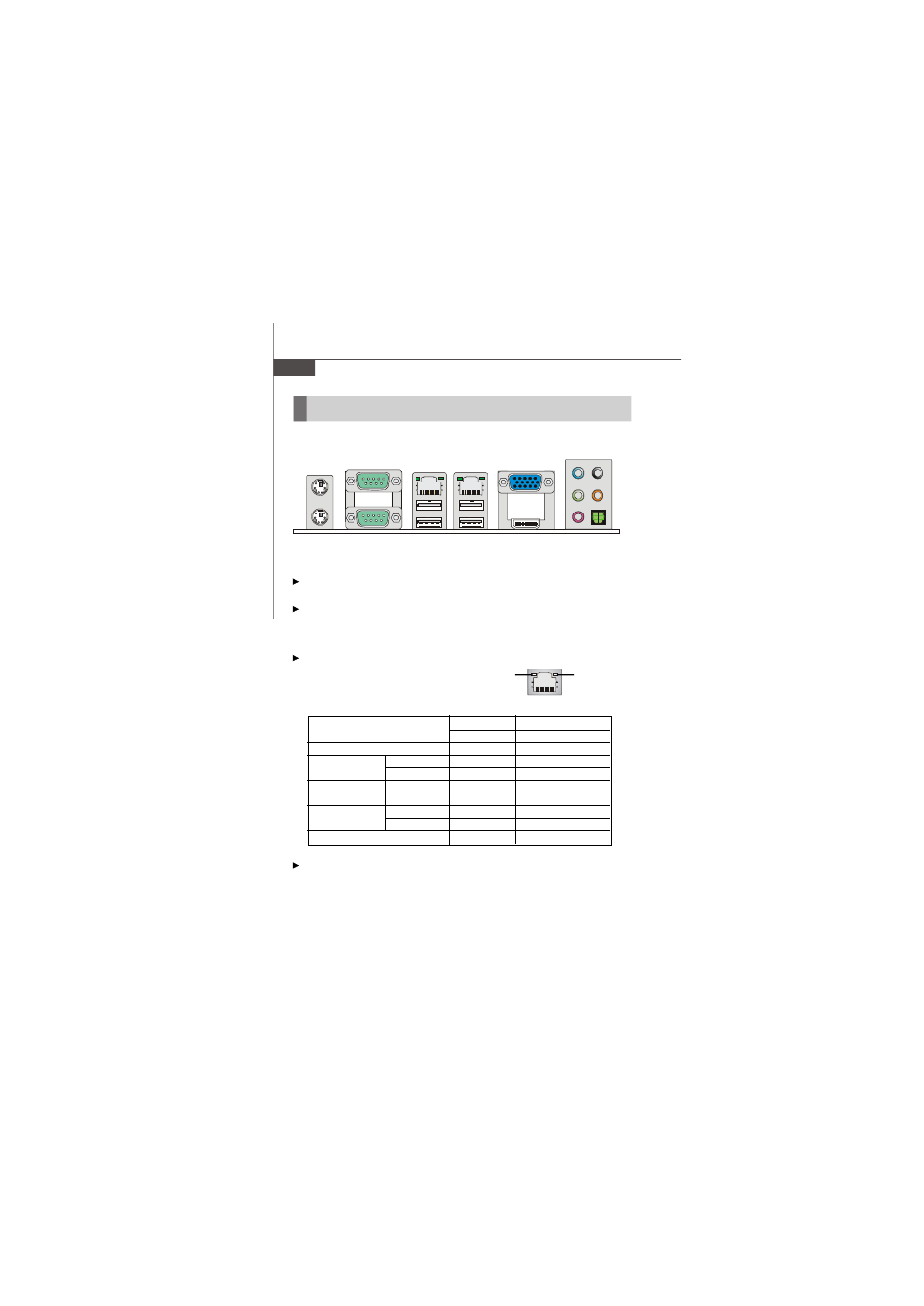

Back Panel
Mouse/Keyboard Connector
The standard PS/2 ® mouse/keyboard DIN connector is for a PS/2 ® mouse/keyboard.
Serial Port
The serial port is a 16550A high speed communications port that sends/ receives 16
bytes FIFOs. You can attach a serial mouse or other serial devices directly to the
connector.
LAN (RJ-45) Jacks
Th e st an d ar d R J- 45 j a ck s a re f or
connection to Local Area Network (LAN).
You can connect network cables to them.
USB Connectors
The UHCI (Universal Host Controller Interface) Universal Serial Bus root is for attaching
USB devices such as keyboard, mouse, or other USB-compatible devices.
Keyboard USB
Line-In/
SS-Out
M ou se
Serial Port LAN VGA Port
Line-Out
Mic-In
LAN
HDMI Port USB Serial Port
RS-Out
CS-Out
SPDIF-Out
