2-3
Hardware Setup
Memory
Installing Memory Modules
1. The memory module has only one notch on the center and will only fit in the right
orientation.
2. Insert the memory module vertically into the SO-DIMM slot. Then push it in until the
golden finger on the memory module is deeply inserted in the SO-DIMM slot.
3. The clip at each side of the SO-DIMM slot will automatically close.
Important
You can barely see the golden finger if the memory module is properly inserted
in the DIMM slot.

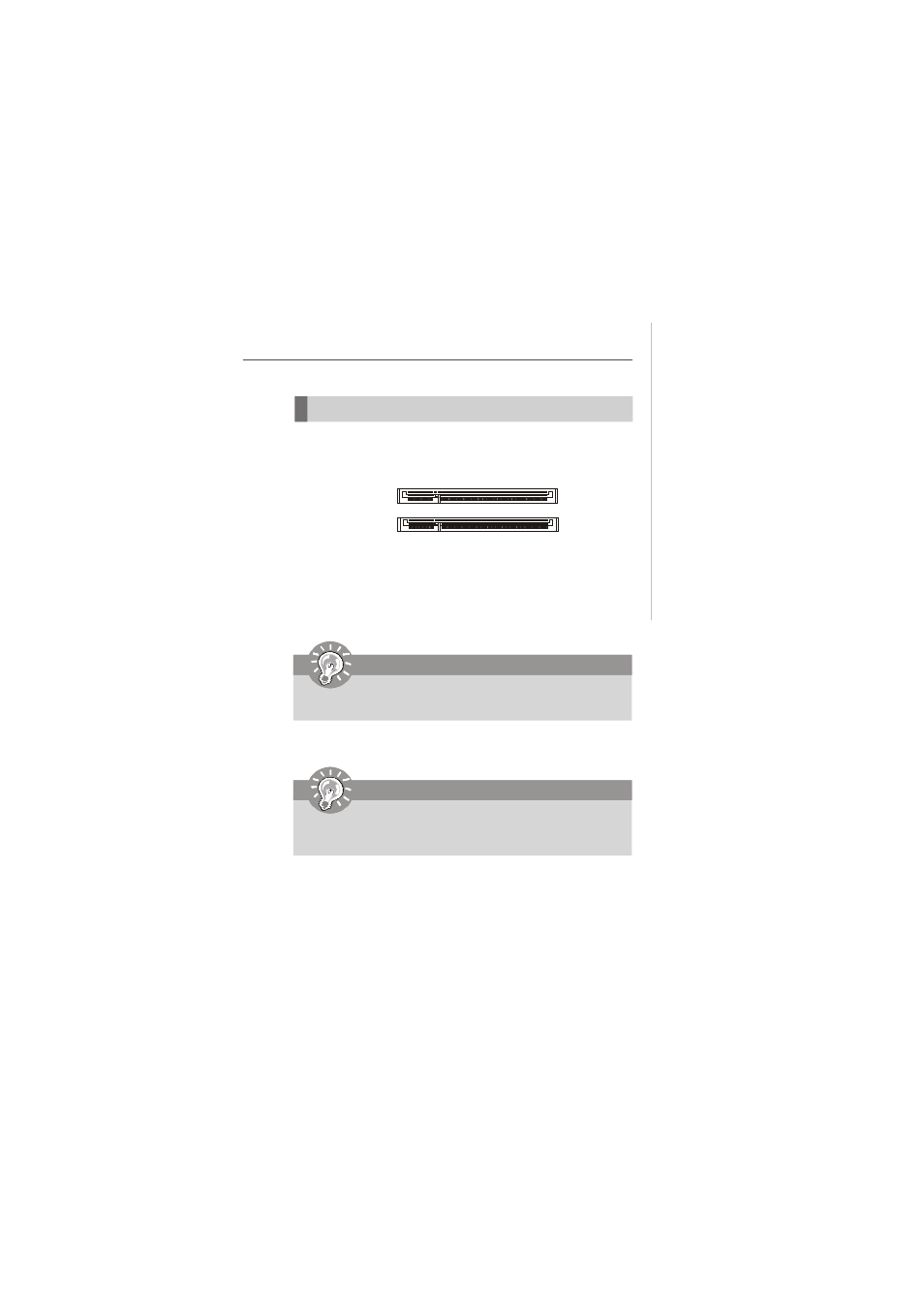

The mainboard provides two 200-pin unbuffered DDR2 400/533/667/800 SO-DIMM
slots and supports up to 4GB system memory.
DIMM2
200-pin, unbuffered
DIMM1
200-pin, unbuffered
Important
To ensure the installations of memory and CPU successfully, please note that
to insert the memory modules first before install CPU and cooler set. And
please always insert the memory module into the DIMM2 first.
