2-6
MS-9804 Mainboard

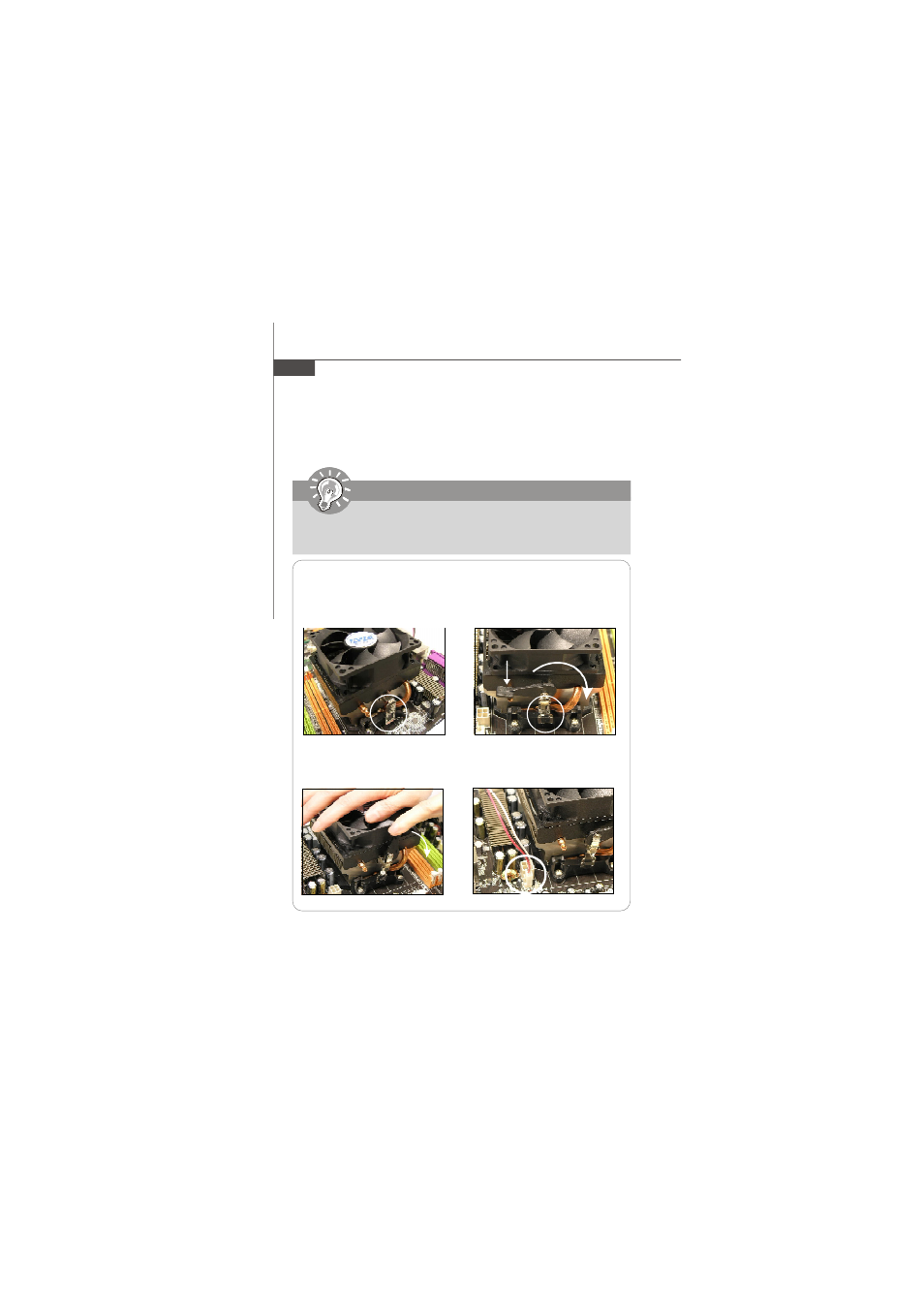

Installing AMD Socket AM2 CPU Cooler Set
When you are installing the CPU, make sure the CPU has a heat sink and a
cooling fan attached on the top to prevent overheating. If you do not have the
heat sink and cooling fan, contact your dealer to purchase and install them before
turning on the computer.
Mainboard photos shown in this section are for demonstration of the cooler
installation for Socket AM2 CPUs only. The appearance of your mainboard
may vary depending on the model you purchase.
Important
2. Then press down the other end of
the clip to fasten the cooling set on
the top of the retention mechanism.
Locate the Fix Lever and lift up it .
1. Position the cooling set onto the re-
tention mechanism.
Hook one end of the clip to hook
first.
3. Fasten down the lever. 4. Attach the CPU Fan cable to the CPU
fan connector on the mainboard.
Fixed Lever
