Page 9
IN-ICST-01-07 9
Level 3 – This level “Building Blocks” is currently being developed.
Level 4 – This area is reserved for the advanced SCL programmer. Full control over all
features in the target is available to the user at this level. While SCL is considerably less
demanding than other micro-controller programming languages, it still requires a level of
“Logical” expertise that is better suited to someone with a programming background.

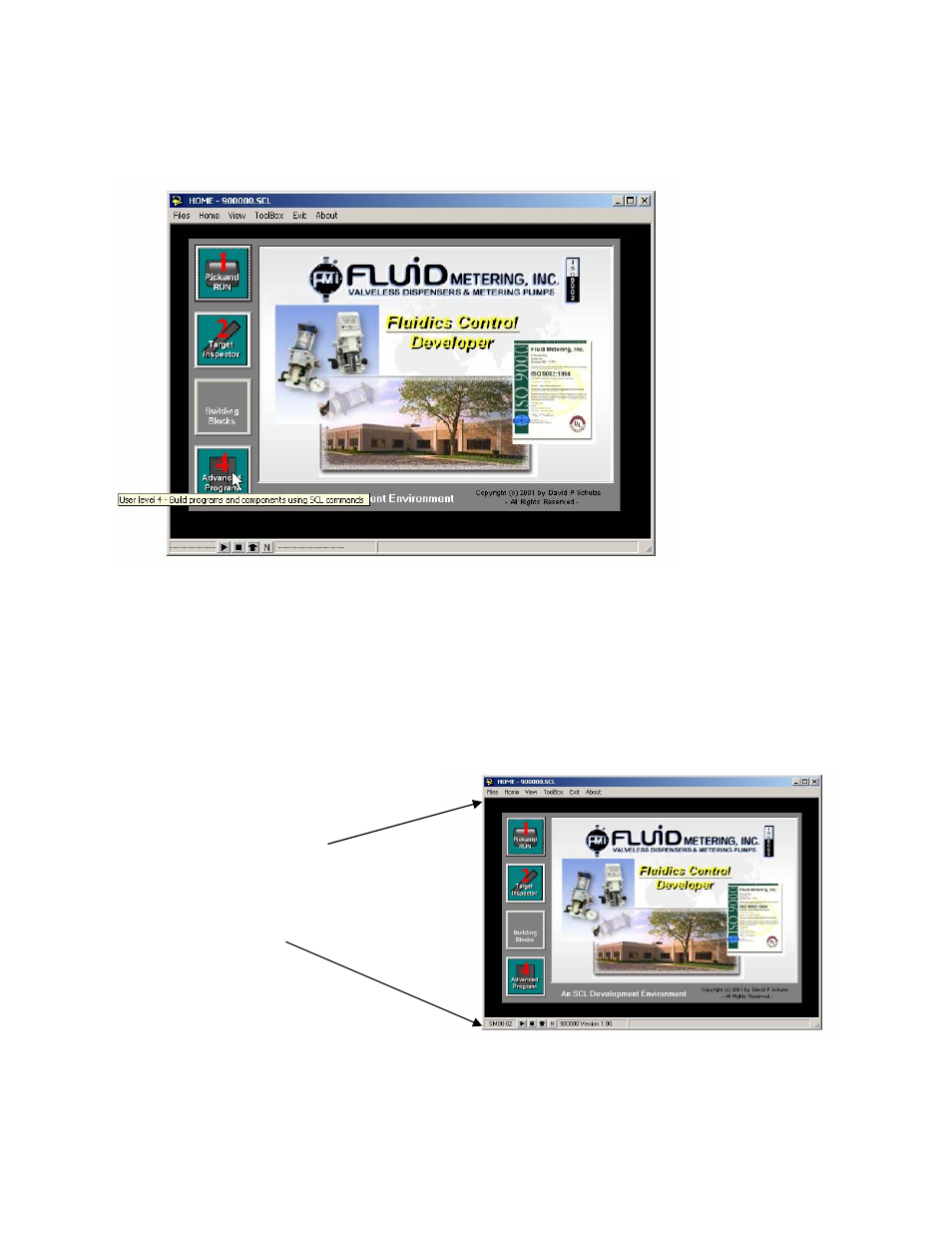

Main Screen:
Pull down menus: Files
Home
View
Toolbox menu is not functional for this
application.
Status bar shows target, program loaded
onto the board, status of the driver.
N = not connected
H = halted
R = running
Up arrow loads the programs.
Square halts the program execution
Right arrow starts the program
