CS5361
DS467F2 21

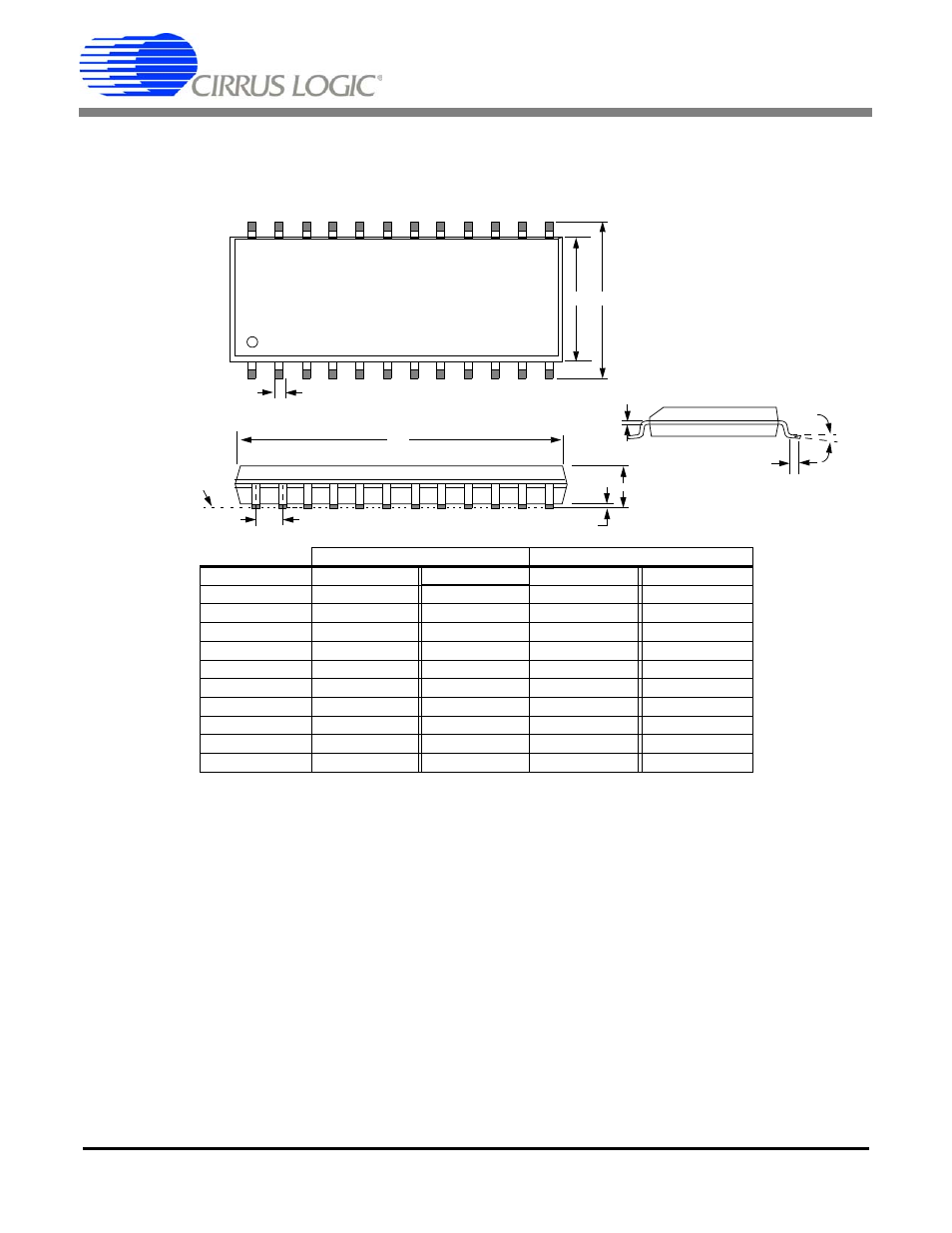

6.0 PACKAGE DIMENSIONS
INCHES MILLIMETERS
DIM MIN MAX MIN MAX
A 0.093 0.104 2.35 2.65
A1 0.004 0.012 0.10 0.30
B 0.013 0.020 0.33 0.51
C 0.009 0.013 0.23 0.32
D 0.598 0.614 15.20 15.60
E 0.291 0.299 7.40 7.60
e 0.040 0.060 1.02 1.52
H 0.394 0.419 10.00 10.65
L 0.016 0.050 0.40 1.27
∝
0° 8° 0° 8°
24L SOIC (300 MIL BODY) PACKAGE DRAWING
D
H E
b
A1
A
c
L
∝
SEATING
PLANE
1
e
